3-6

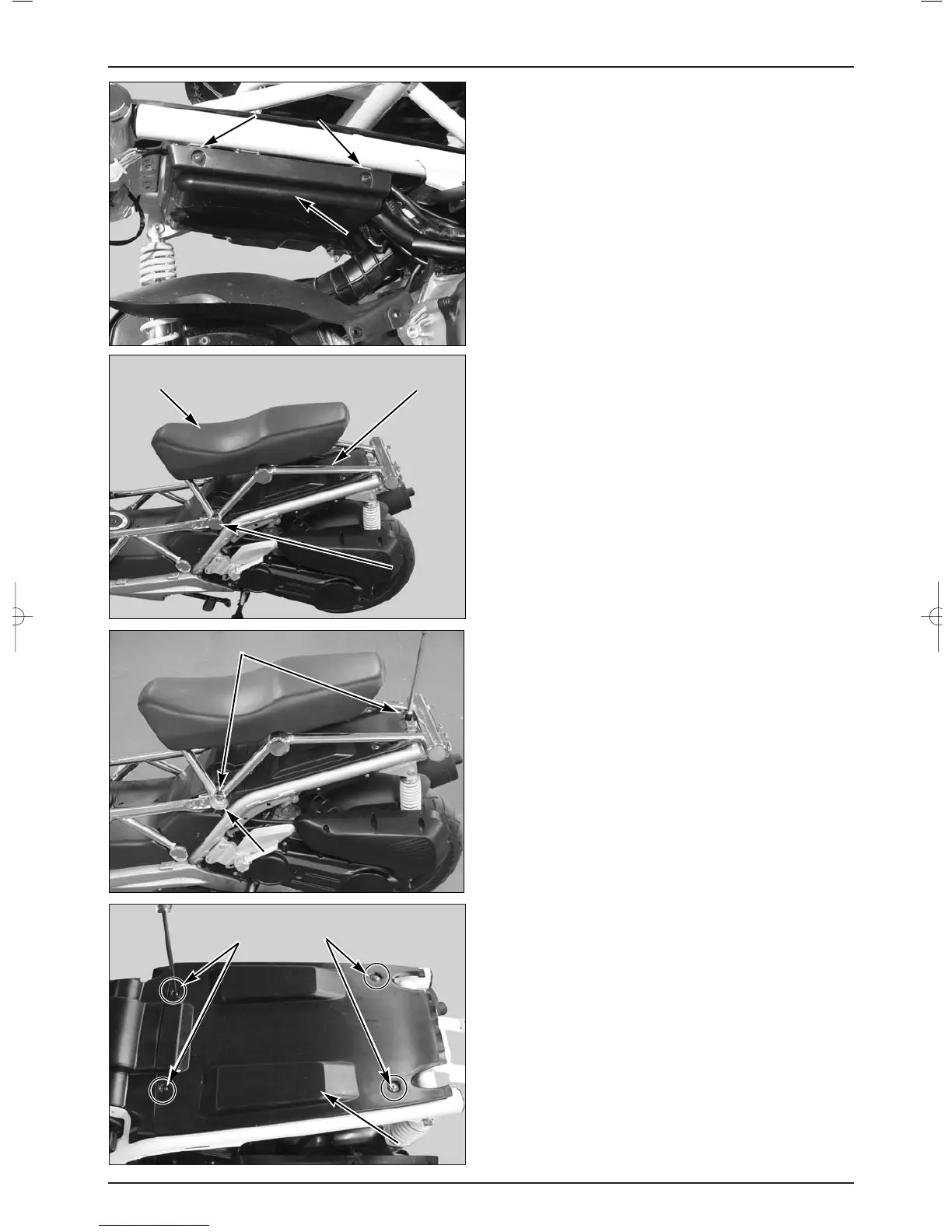

EXTERNAL PARTS

HANDLE COVER

UPPER

REAR UNDER COVER

REMOVAL/ASSEMBLY

●Loosen the 4 special screw (R/L) securing the

rear under cover.

●Remove it by opening the rear under cover.

●Install in the reverse order of removal.

SEAT SUPPORT PIPE

REMOVAL/ASSEMBLY

●Remove the rear upper cover.

●Remove the rear fender.

●the bar end cap B.

●Loosen the 4 flange bolts securing the seat

support.

●Loosen the cap bolt securing the truss pipe and

remove the support pipe.

●Install in the reverse order of removal.

CENTER COVER

REMOVAL/ASSEMBLY

●Remove the rear upper and rear fender.

●Remove the seat support pipe.

●Loosen the 2 tapping screws and 2 flange bolts.

●Remove the center cover.

●Install in the reverse order of removal.

SPECIAL SCREW

REAR UNDER COVER

SEAT

SEAT SUPPORT

BAR END CAP B

FLANGE BOLT

CAP BOLT

TAPPING SCREW

FLANGE BOLT

CENTER COVER

DAELIM B-BONE Service Manual

Other manuals for DAELIM B-BONE
