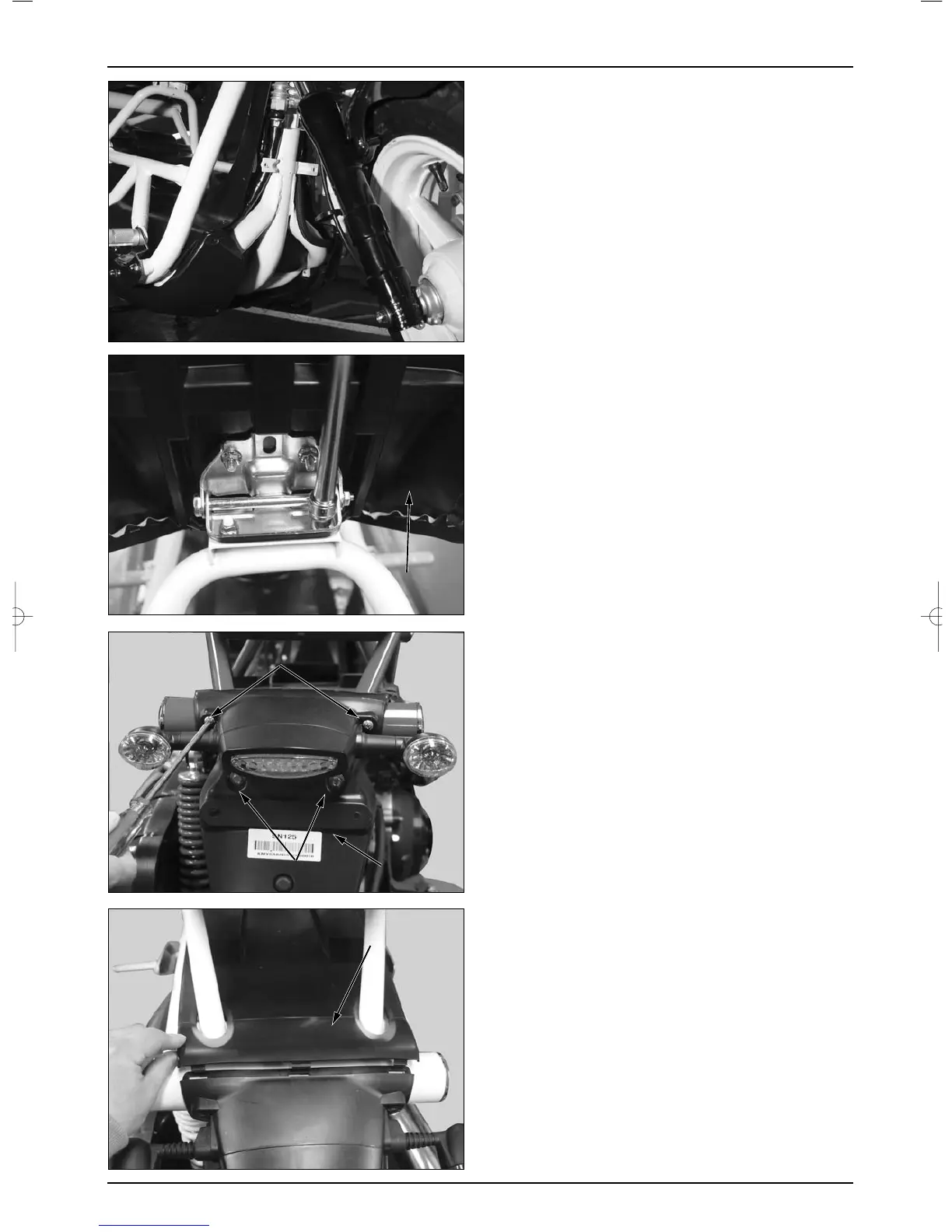

EXTERNAL PARTS

SEAT REMOVAL/ASSEMBLY

●Release the seat lock at the back of seat.

●Loosen the 2 flange nuts and remove the seat.

●Install in the reverse order of removal.

REAR FENDER

REMOVAL/ASSEMBLY

●Loosen the 2 special bolts.

●Loosen the 2 washer bolts and remove the rear

fender.

●Remove the tail light cable.

●Install in the reverse order of removal.

●Remove the front under cover.

●Install in the reverse order of removal.

REAR UPPER COVER

REMOVAL/ASSEMBLY

●Pull the behind of the rear upper cover to

remove it.

●Install in the reverse order of removal.

SEAT

WASHER BOLT

REAR FENDER

SPECIAL SCREW

REAR UPPER COVER

DAELIM B-BONE Service Manual
