BRAKE SYSTEM

BRAKE HOSE OIL BOLT

FR. BRAKE DISK

RR. BRAKE DISK

INSTALLATION

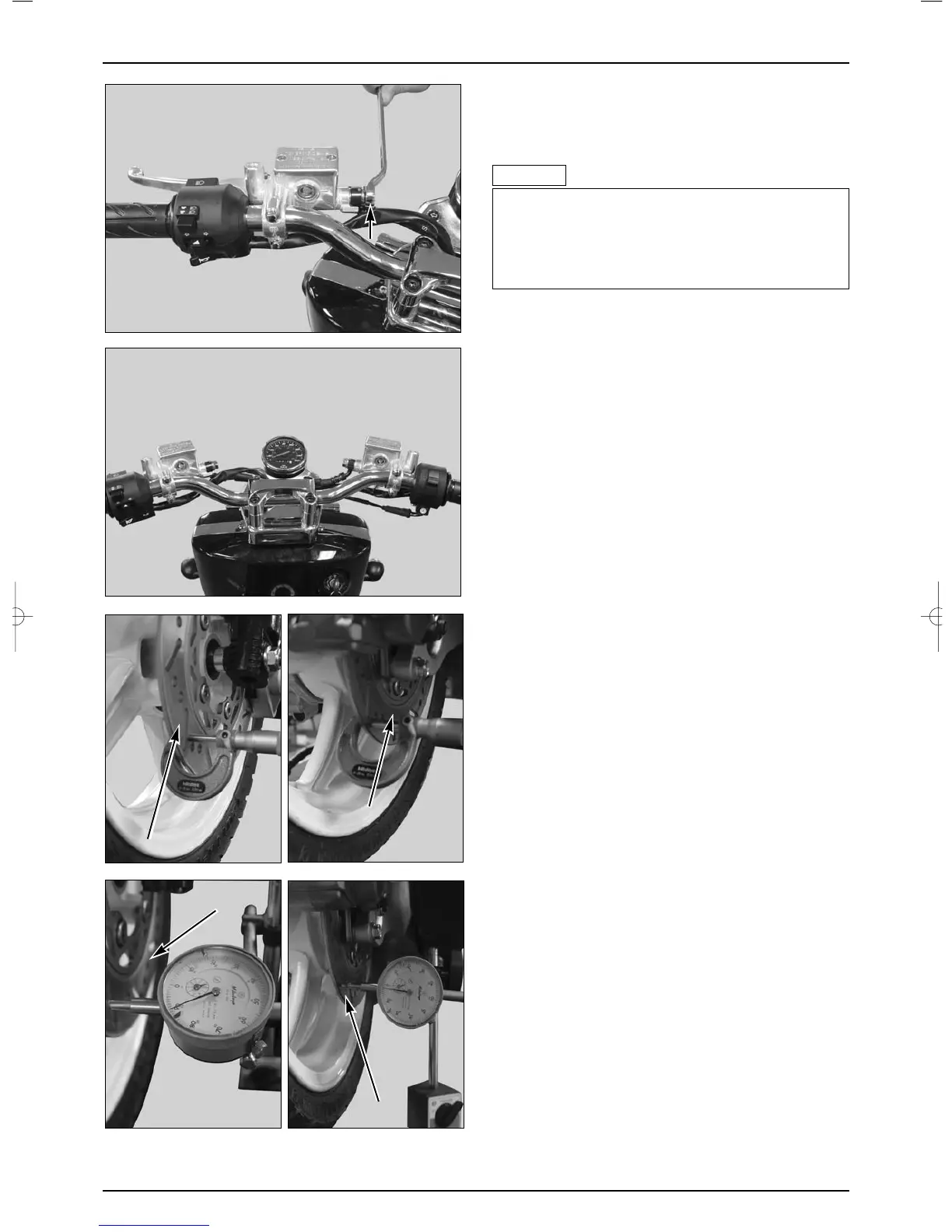

● Install the front rear master cylinder to the handle.

●Install the holder with its “UP” mark facing

upwards, and align the holder joint with the

punch mark on the handle bar.

●Tighten the holder upper bolt first.

NOTE

△

● Install the brake hose to the master cylinder with 2 new

sealing washers and the hose bolt.

TORQUE VALUE : 2.5~3.5 kgf

● Loosen the 2 flat screws, remove the oil cup cap,

diaphragm plate and diaphragm.

● Fill the brake fluid, and bleed air.

● Install the diaphragm, diaphragm plate and the oil cup

cap, tighten the 2 flat screws.

BRAKE DISK

INSPECTION

● Measure the brake disk for the thickness.

SERVICE LIMIT : 3.0mm

TOOL : MICRO METER

● Check the brake disk for wobbles.

SERVICE LIMIT : 0.02MM

TOOL : DIAL GAUGE
