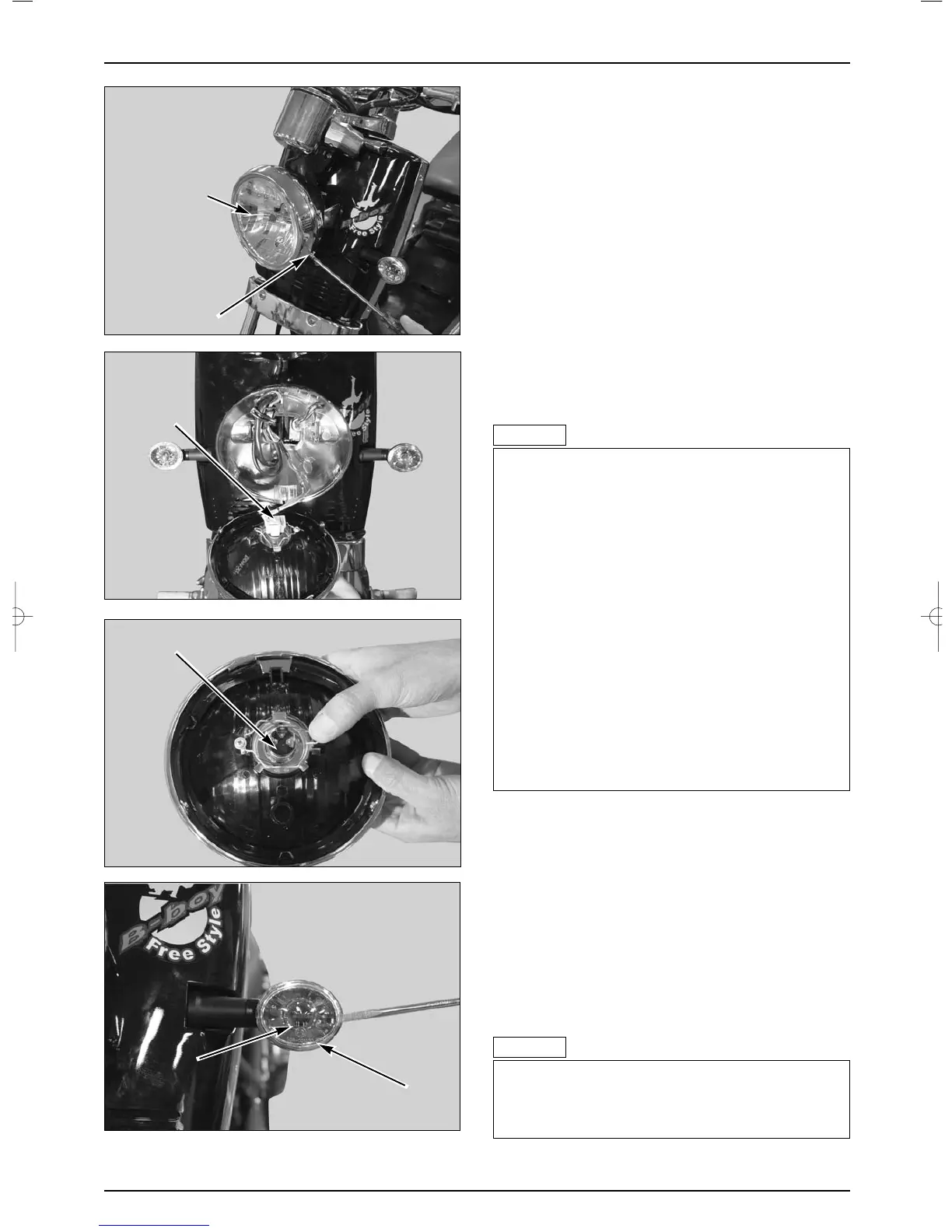

REMOVAL
● Loosen the washer screw securing the headlight.
● Disconnect the headlight wiring.
● Install in the reverse order of removal.
BULB REPLACEMENT
● Pull off the headlight socket.
● Replace with a new bulb.
● Install in the reverse order of removal.
●When replacing the bulb, be sure not to put
finger and contaminated gloves prints on the
headlight bulb, as they may create hot spots on
the bulb and cause is to fail.
●Note the following when replacing the bulb.
- Do not replace while the headlight is ON.
after it is turned OFF, be sure to let it cool
down before servicing.
- Wear clean gloves while replacing the bulb.
Do not put finger prints on the headlight bulb.
- If you touch the bulb with your bare hands,
clean it with a cloth moistened with alcohol
and clean it with a clean cloth again.
- Be sure to install the rubber cover after
replacing the bulb.
!
NOTE
△
FRONT WINKER
BULBS REPLACEMENT
● Press the lock on the side of the winker base.
● Remove the winker lens.
● Remove the bulb from the socket and replace with a
new bulb.
● Install in the reverse order of removal.
●Pay attention not to damage the lens.
●Do not apply excessive force when removing
the lens.
!
NOTE
△
