STARTER SYSTEM

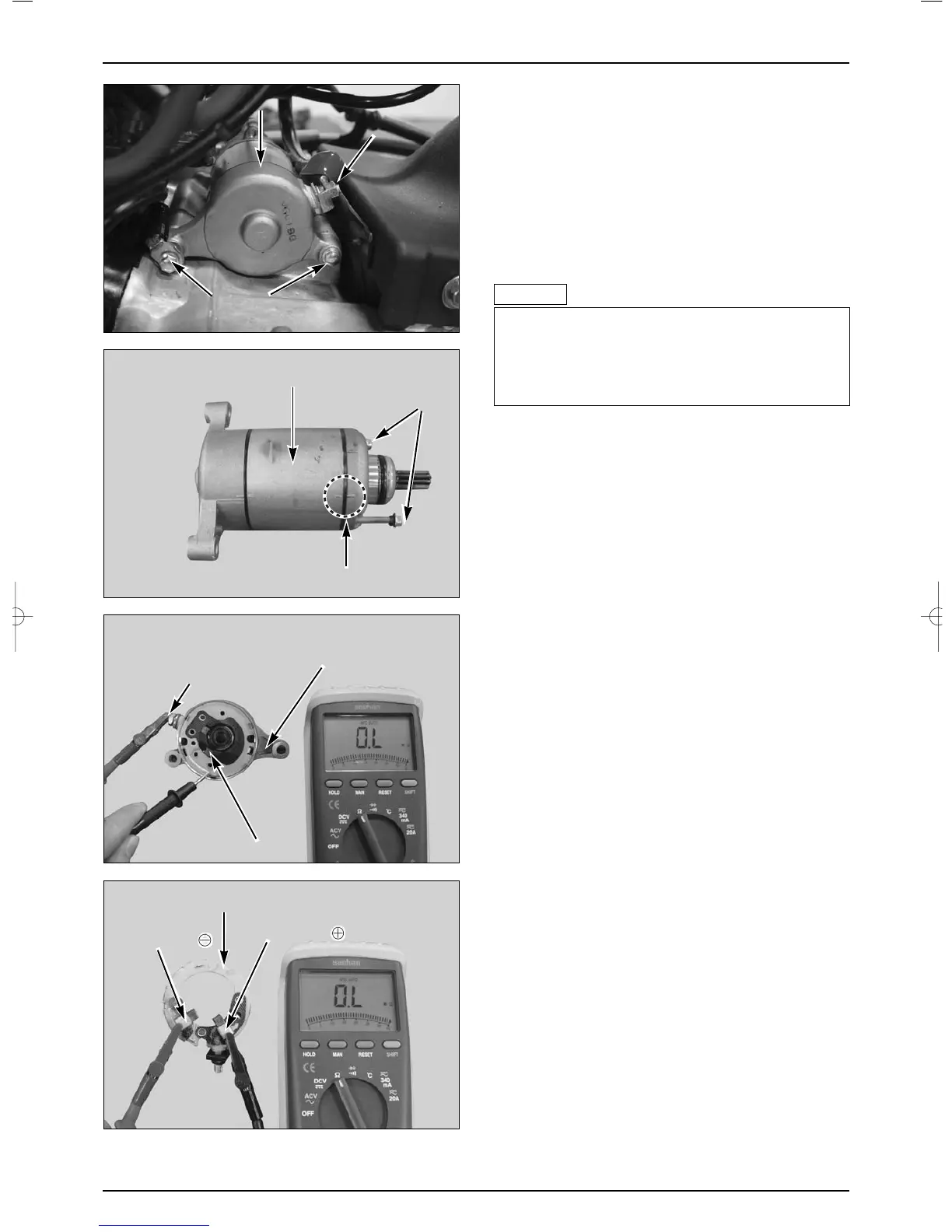

STARTER MOTOR

REMOVAL

● Remove the starter motor cable from the starter

magnetic switch.

● Loosen the 2 flange bolts securing the engine case,

remove the battery earth cable and starter motor.

● Install in the reverse order of removal.

DISASSEMBLY

● Remove the starter motor cable.

● Before disassembling the starter motor mark the

position of the case and cover so the starter can be

assembled correctly later.

● Loosen the starter motor case bolts and remove the

motor cover.

INSPECTION

● Check for continuity of the starter motor case.

-Between cord terminal“⊕” and bracket“⊖”: normal

if no continuity.

-Between cord terminal and brush : normal if there is

continuity.

● If abnormal, replace with a new one.

● Loosen the brush terminal setting nut, remove the

brush holder set.

● Check for continuity between “⊕” and “⊖” terminals

of the brush holder.

● If there is continuity, replace with a new one.

●Always turn the ignition switch OFF before servicing

the starter motor. The motor could suddenly start,

causing serious injury.

●Accurately tighten the battery earth cable.

NOTE

△

SETTING BOLT

RR. BRACKET

BRUSH

CORD TERMINAL

STARTER MOTOR CABLE

ASSEMBLY MARK

STARTER MOTOR

FLANGE BOLT

BRUSH HODER

BRUSH HODER SET
