8-8

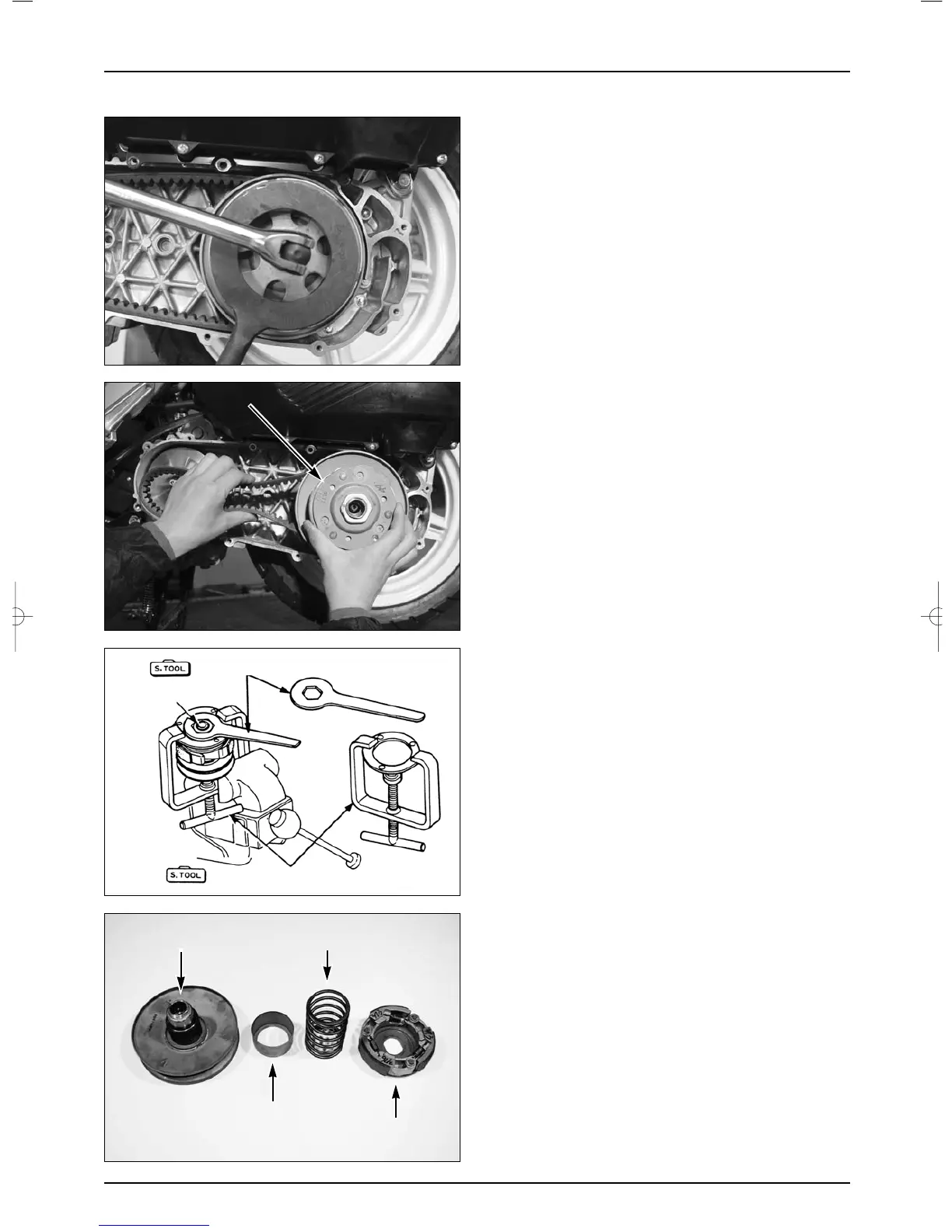

LH.CRANK CASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION

DRIVEN PULLEY

LOCK NUT WRENCH

LOCK NUT

CLUTCH SPRING COMPRESSOR

DRIVEN FACE SPRING

SPRING GUIDE

DRIVE PLATE

DRIVEN FACE COMP

DRIVEN PULLEY

REMOVAL

● Remove the LH. crankcase cover.

● Remove the drive face.

● Hold the clutch outer using the universal holder and

remove the 12mm flange nut, then remove the driven

pulley.

TOOL : DRIVE FACE HOLDER

UNIVERSAL HOLDER

DISASSEMBLY

● Remove the special nut.

TOOL : CLUTCH SPRING NUT

LOCK NUT WRENCH

● Remove the driven pulley sub assembly from the drive

shaft.

● Remove the drive belt.

● Remove the drive plate, driven face spring and driven

face spring guide.
