DAELIM B-BONE Service Manual

8-9

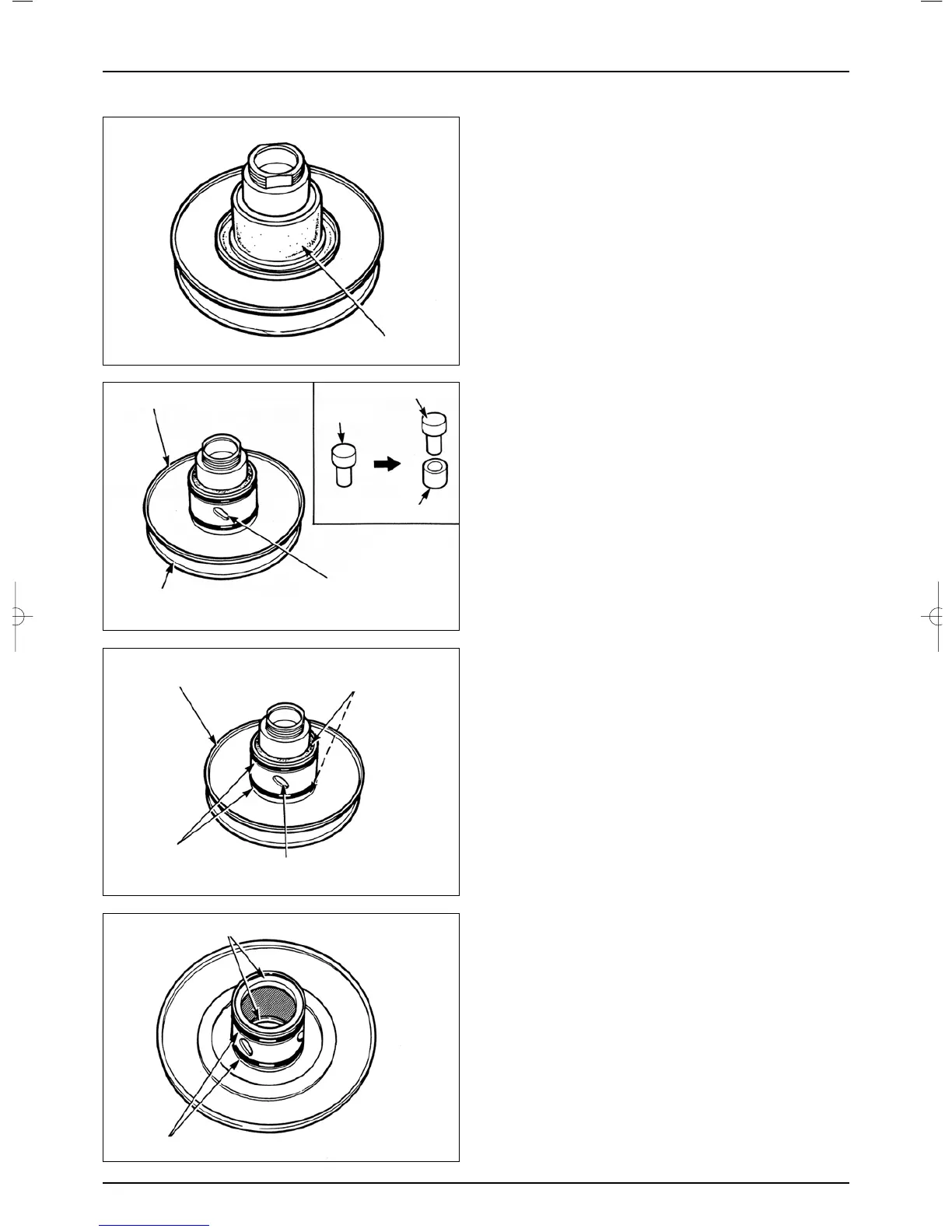

LH.CRANK CASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
● Remove the seal collar from the driven pulley.
● Remove the guide pins and guide pin rollers and the
movable driven face.
● Remove the O-ring from movable driven face.
● Remove the oil seal from the movable driven face.
● Remove the movable driven face.
SEAL COLLAR
MOVABLE DRIVEN FACE
MOVABLE DRIVEN FACE
DRIVEN FACE
OIL SEAL
O-RING
GUIDE PIN
GUIDE PIN
OIL SEAL
O-RING
GUIDE PIN
GUIDE ROLLER PIN
GUIDE ROLLER
