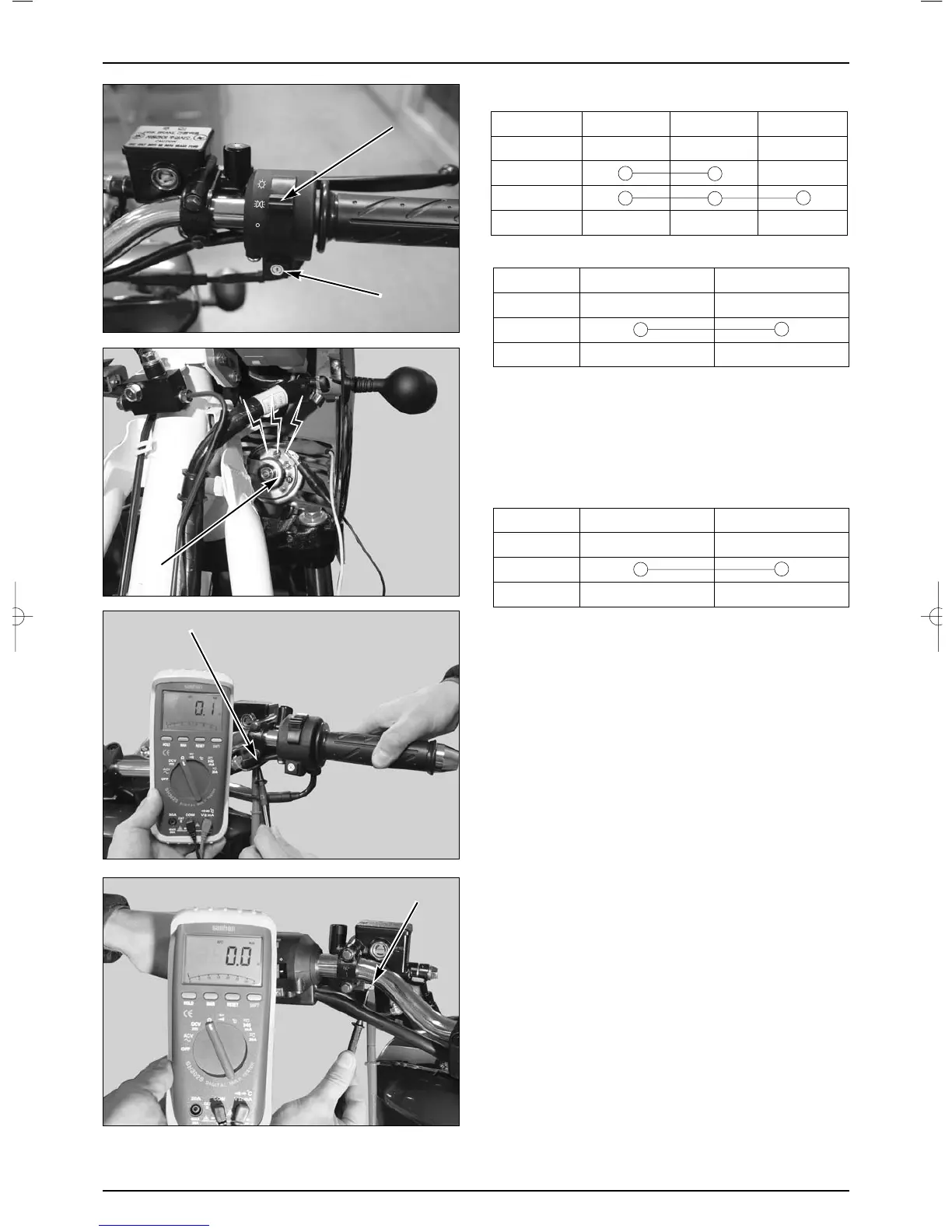

19-5

LIGHTS/SWITCHES/HORN

FRONT STOP SWITCH

REAR STOP SWITCH

HORN

HEADLIGHT SWITCH

STARTER SWITCH

YELLOW / RED GREEN

ST E

FREE

PUSH

COLOR

HORN SWITCH

LIGHT GREEN BLACK

HO BAT2

FREE

PUSH

COLOR

HORN

● Remove the wire connector from the horn.

● Connect the horn terminal with 12V battery.

● Normal if it sounds.

FRONT / REAR STOP SWITCH

INSPECTION

● Remove the front handle cover.

● Check for continuity between the black and green /

yellow wire terminals inside the speedometer assembly.

-When the brake lever is pulled - CONTINUITY.

-When the brake lever is released - NO CONTINUITY.

OFF

COLOR

HEADLIGHT SWITCH

BAT2

Br/L
