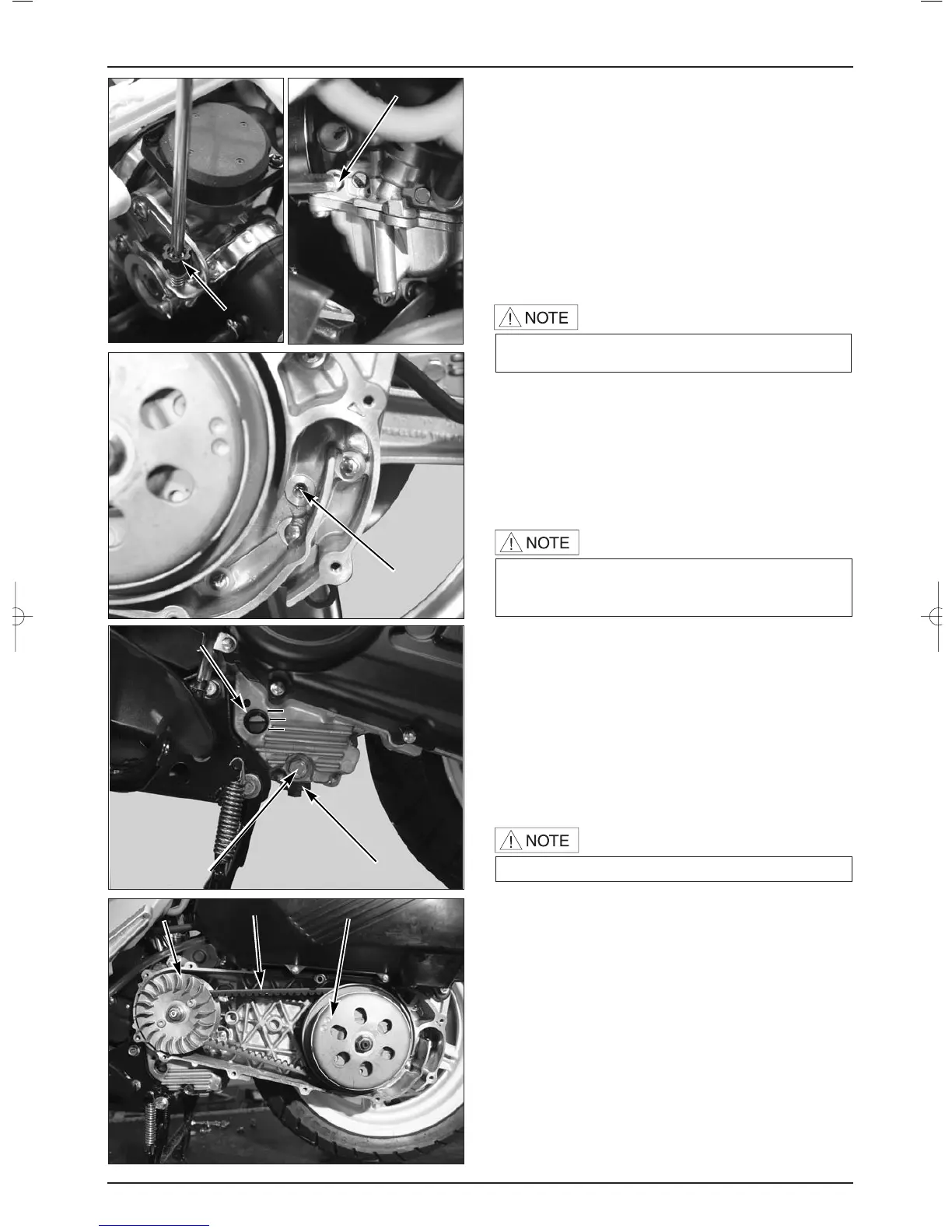

INSPECTIONS/ADJUSTMENTS

CARBURATOR IDLE SPEED

●Erect the motorcycle on the mainstand.

●Remove the rear fender, center cover.

●Verify all engine adjustments satisfy specifications.

Make adjustment, If necessary.

●Heat the engine to make accurate idling inspection and

adjustment.

●Turn the throttle stop screw and make adjustments to

prescribed idling speed.

IDLE SPEED : 1,700

±±

100RPM

•Do not over adjustment the pilot screw. it could be

effect to starting. (refer to page 6-9)

TRANSMISSION OIL

INSPECTOIN

● Remove the LH. crank case. (-> 8-2)

● Remove the bolt and check the oil on oil check hole.

● If the oil level is low(80W/90), add the oil.

● Install oil check bolt.

•Make sure that the oil sealing washer is good

condition.

•Erect the motorcycle on the main stand.

ENGINE OIL

INSPECTOIN

●Start the engine and let it be warm fully.

●Stop the engine. check the oil level line of the LH.

crank case cover oil sight glass.

●It is good if the oil surface is between the lower level

line and upper that of the sight glass. If the oil level is

near the lower level line or below that, full to the

upper level line with the recommended oil.

DRIVE BELT

●Remove the LH. crankcase cover.

●Check the drive belt for wear or damage.

●Check schedule maintenance period, replace the new

drive belt if possible.

THROTTLE STOP SCREW

PILOT SCREW

OIL SIGHT GLASS

UPPER

MIDDLE

LOWER

DRIVE FACE

DRIVE BELT

DRIVEN PULLEY

DRAIN PLUG BOLT

TAPPET ADJUSTING HOLE CAP

OIL CHECK HOLE
