DAELIM B-BONE

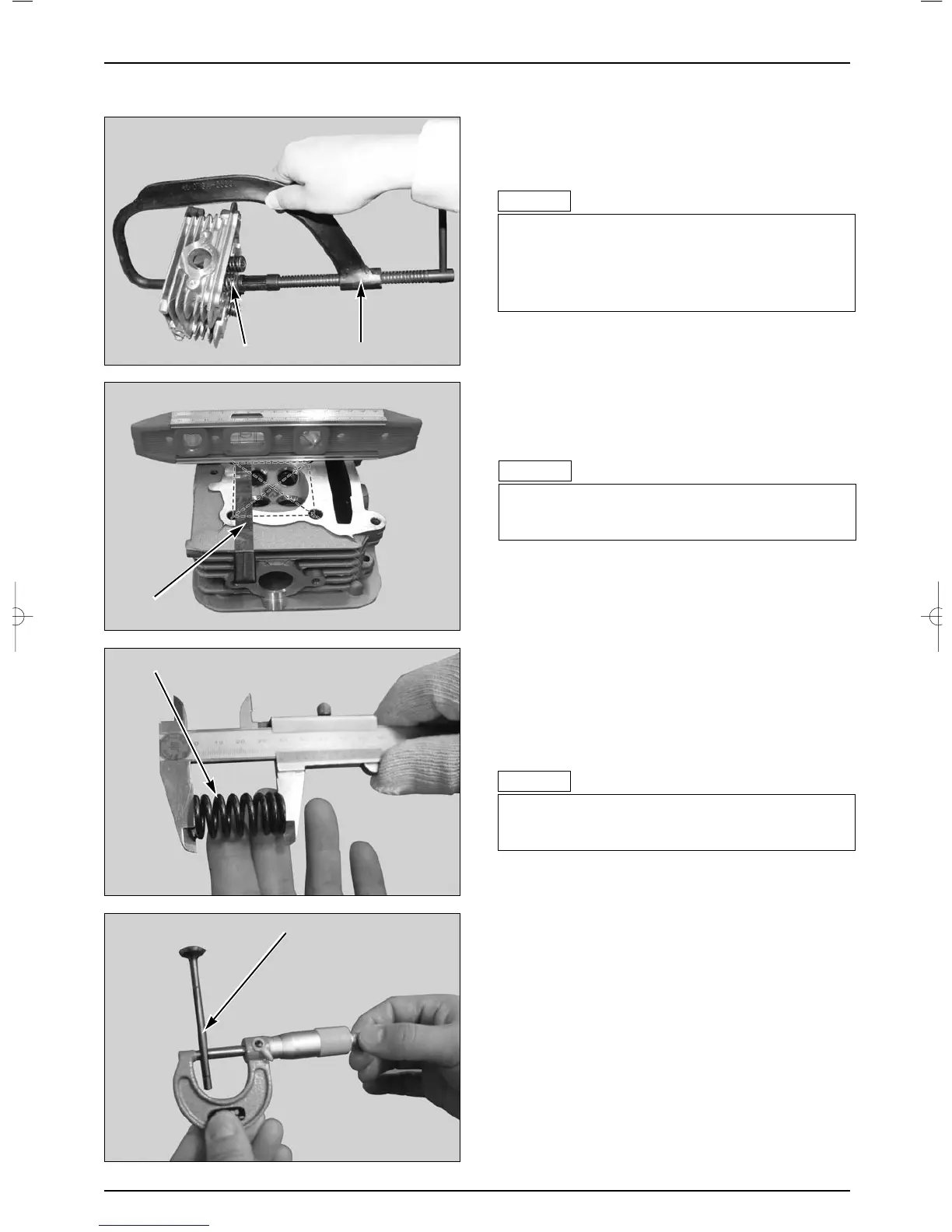

● Remove the valve spring, valve cotter, retainer, spring
and valve. Using the valve spring compressor.
TOOL : VALVE SPRING COMPRESSOR
CYLINDER HEAD INSPECTION
● Remove the carbon deposits from the inside of the
combustions chamber.
● Check the spark plug assembling hole and the valve
seat for cracks.
● Using a square and a feeler gauge, check the cylinder
head distortion.
SERVICE LIMIT : 0.1 mm
VALVE SPRINGS
● Measure the free length of the inner and outer valve
springs.
SERVICE LIMIT : 36.90 mm
VALVES
● Inspect each valve for bending, burning, scratches or
abnormal wear.
● Insert the valves in their original positions in the
cylinder head.
Check that each valve moves up and down smothly,
without binding.
● Measure and record the valve stem outer diameter in
three places along the valve guide sliding area.
SERVICE LIMIT : IN : 4.920 mm
EX: 4.900 mm
● Replace the valve with a new one if the service limit is
exceeded.
10-6
CYLINDER HEAD / VALVES
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING COMPRESSOR
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
FEELER GAUGE
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE SPRING
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
VALVE
●To prevent the loss of tension, do not compress the
valve spring more than necessary.
●Mark the disassembled parts so that they can be
reassembled into the original position later.
!
NOTE
△
●Take precautions not to damage the cylinder head
gasket attachment.
!
NOTE
△
●Replace the valve spring with new one if the length of
any one is less than the service limit.
!
NOTE
△
