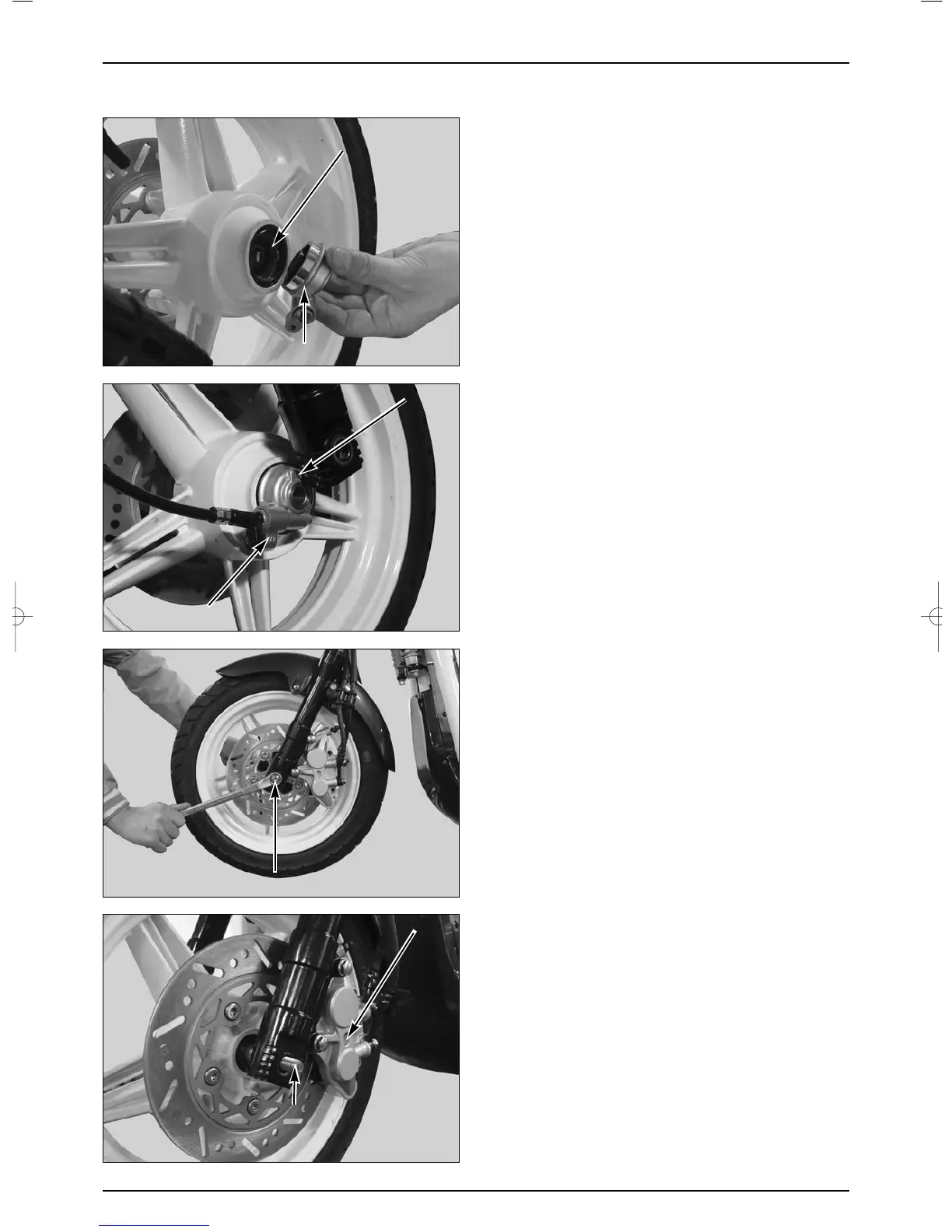

FRONT WHEEL INSTALLATION

● Insert the front wheel between the front forks.

● Insert the disk, taking precautions not to damage the

pad, and assemble the wheel.

● Align the slots of the speedometer gear with the tangs

of the RH. fork slider.

● Insert the front axle into the speedometer gear box and

the wheel hub.

● Install the axle nut.

● Install the speedometer cable, and tighten with screws.

● Place the front wheel on the ground, and tighten the

axle nut to the specified torque.

TORQUE VALUE : 5.0-7.0 kgf

● Apply grease to the dust seal rim.

● Install the dust seal, and align the tangs of the

speedometer gear retainer with the gear groove to

assemble the speedometer gear box.

FRONT FORK

REMOVAL

● Remove the following parts.

-Front brake caliper

-Front fender

-Front wheel

13-7

FRONT WHEEL/FRONT FORK/STEERING

SPEEDOMETER GEAR BOX

GEAR BOX RETAINER

SPEEDOMETER GEAR BOX

󱆪PA RT

AXLE NUT

FRONT WHEEL AXLE

FRONT CALIPER
