DAELIM B-BONE

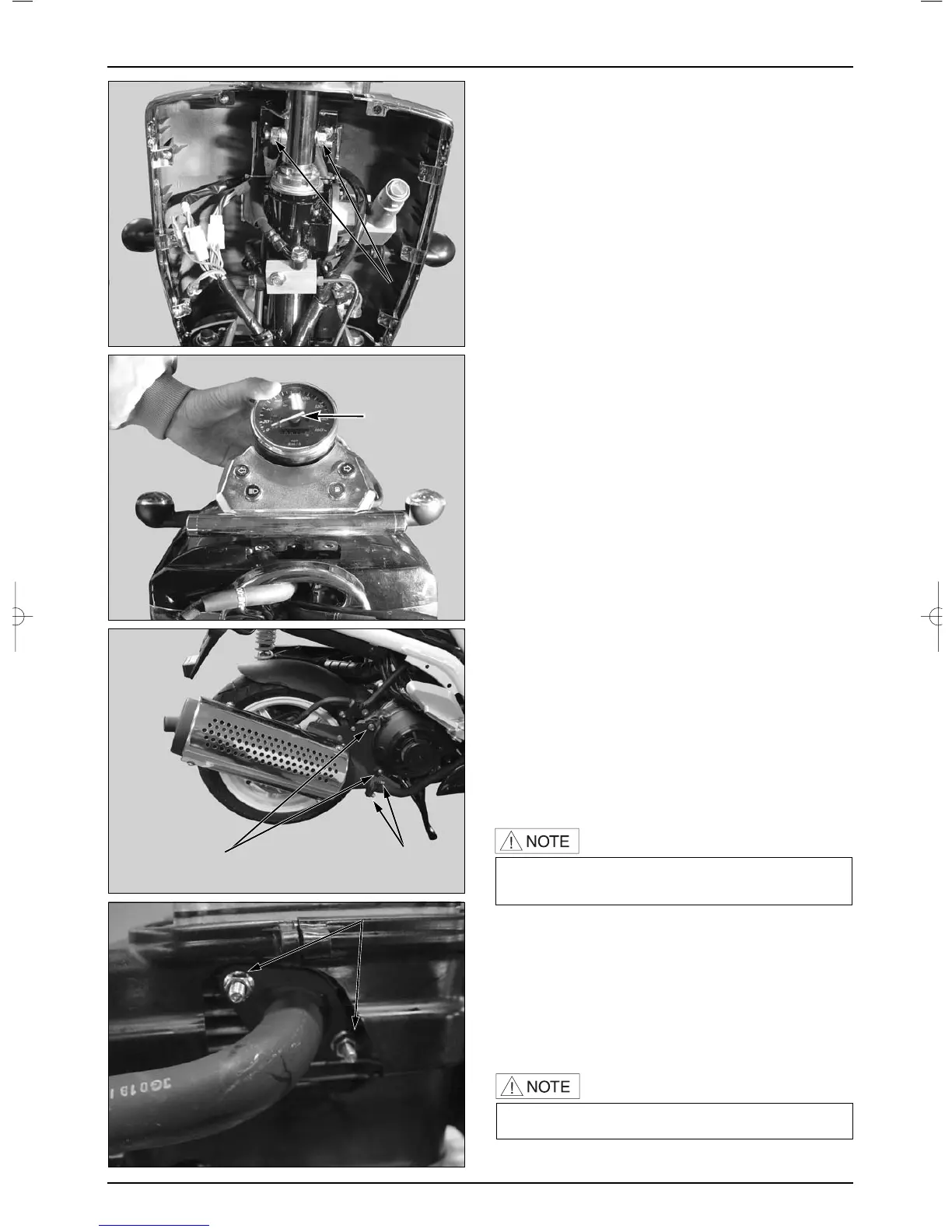

●Remove the inner box.
●Loosen the 2 flange bolts securing the pilot
box.
●Remove the speedometer cable.
●Install in the reverse order of removal.
MUFFLER
REMOVAL/ASSEMBLY
●Loosen the washer bolt securing the brake hose
clamp.
●Loosen the 3 hex cap nut securing Ex. Pipe
comp.
●Loosen the 2 flange bolt securing the muffler
comp.
●Remove the Ex. muffler comp.
EX. PIPE
●Loosen the 2 flange nuts securing the cylinder
comp.
●Pull the Ex. pipe comp downward to remove it.
●Install in the reverse order of removal.
•Never performing the maintenance of the muffler
right after stopping the vehicle because the muffler
is extremely hot.
•Replace the packing when assemblying the muffler
and Ex. pipe comp.
