DAELIM B-BONE

14-6
REAR WHEEL/SUSPENSION/REAR SWING ARM
REAR SWING ARM

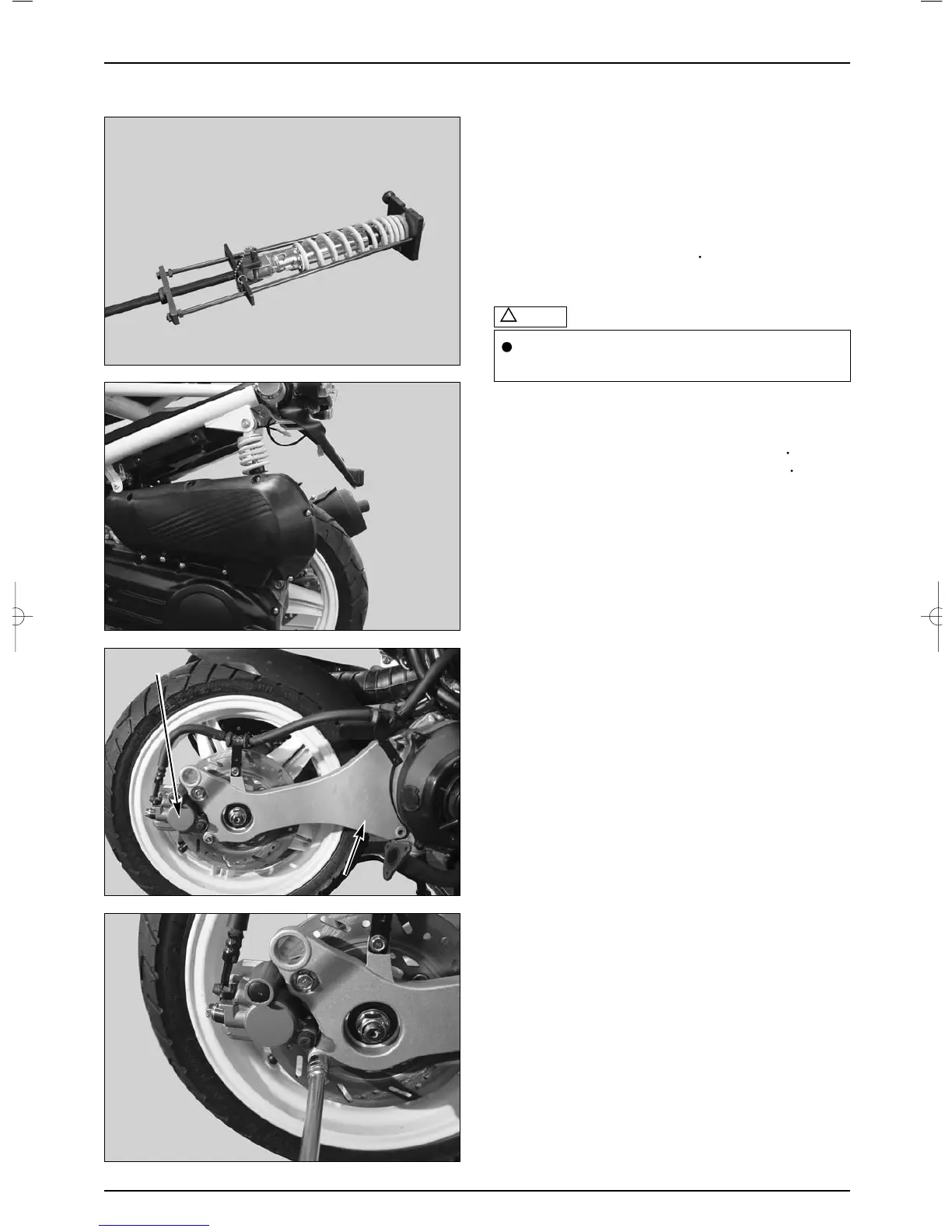

REMOVAL
● Remove the EX. Muffler.
● Remove the rear brake caliper.
● Loosen the rear axle U-nut.
● Remove the rear swing arm.
● Install the rear cushion.
● Tighten the top and bottom of the cushion with bolts.
TORQUE VALVE : UPPER SIDE : 3.5~4.5kgf m
LOWER SIDE : 3.5~4.5kgf
m
INSTALLATION
● Install the spring, stopper rubber to the damper comp.
● Apply thread locking agent to the hex nut, and install
the rear cushion compressor attachment on the damper
rod.
● Fix the upper metal, and tighten the hex nut.
TORQUE VALVE : 3.0~4.5kgf m
TOOLS : REAR CHUSION COMPRESSOR ATTACHMENT
REAR CHUSION COMPRESSOR
Install the spring with the smaller pitch side
facing downward.
!
NOTE
