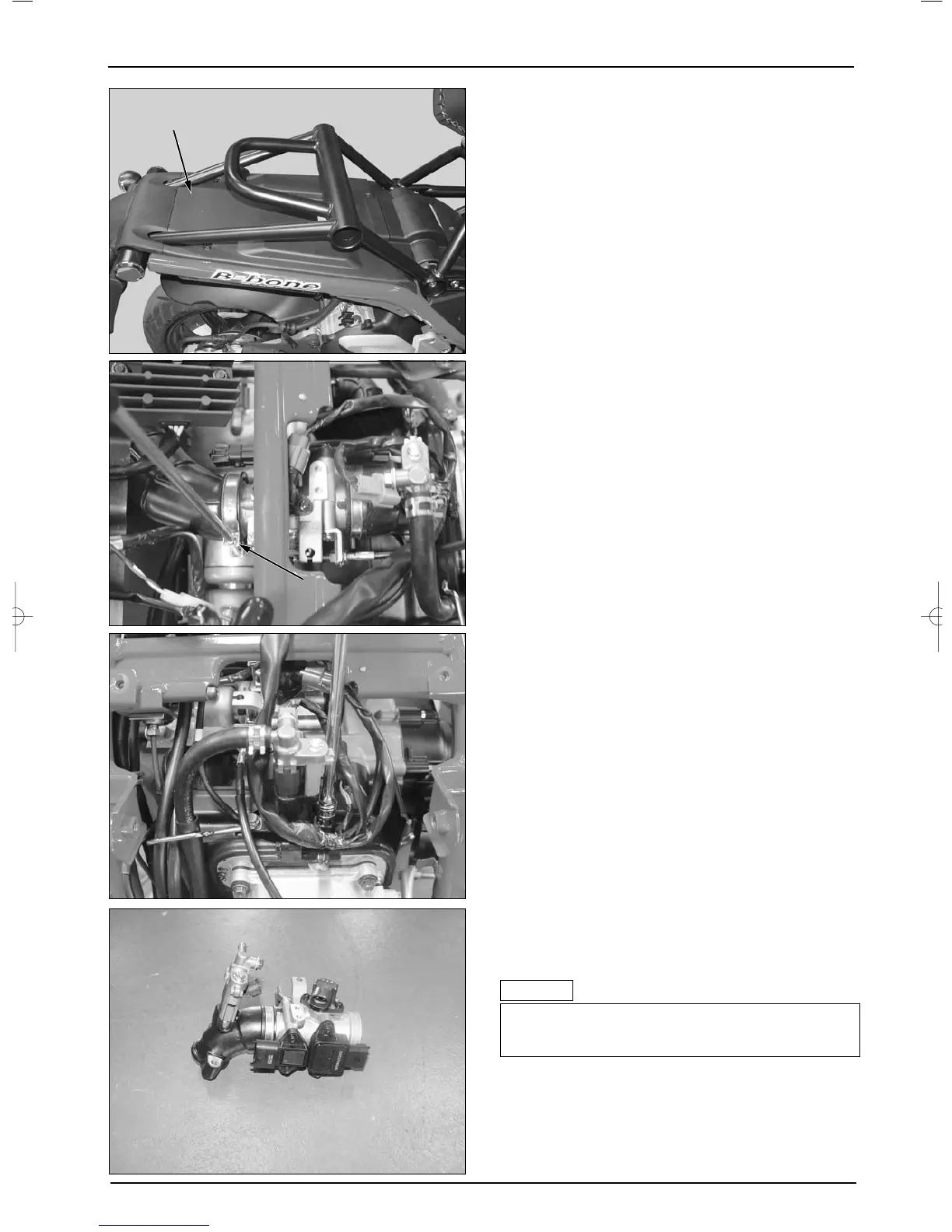

7. THROTTLE BODY
● Remove the seat support pipe.
● Remove the center cover.
● Loosen the screw securing air cleaner connecting
tube band.
● Remove the throttle body and air cleaner.
● Remove the gasoline in fuel tube.
● Disconnect fuel tube securing inject cap.
● Disconnect injector, MAPAT, throttle sensor, ISA
coupler.
● Disconnect throttle cable.
● Loosen the 2 flange bolts securing insulator and
remove the throttle body ass’y.
● Remove the each component parts securing
throttle body and check.
5-12
EMS(Engine Management System)
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
CENTER COVER
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
●Do not disconnect both the throttle adjust screw
and adjust nut.
!
NOTE
△
