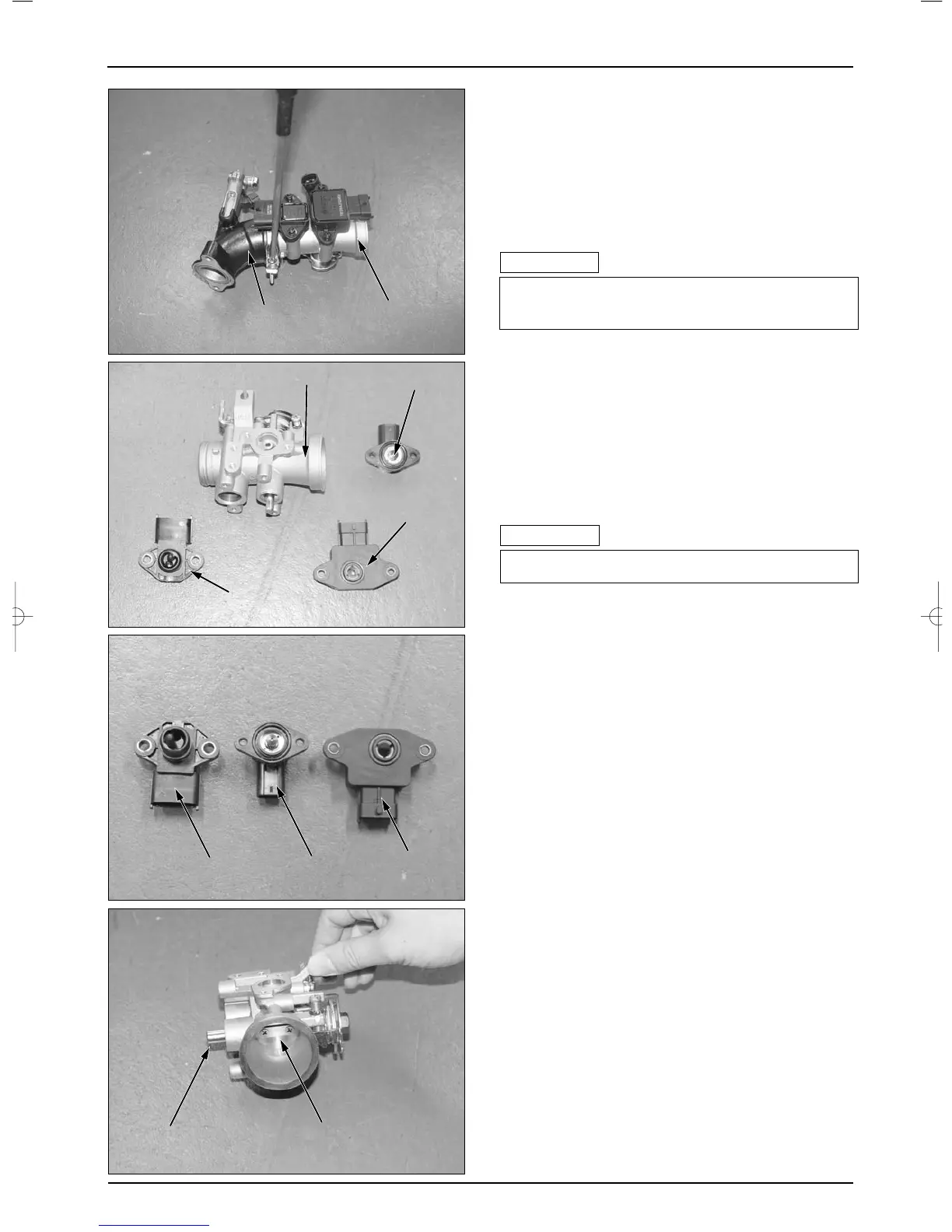

THROTTLE BODY

INSULATOR

THROTTLE BODY

ISA

TPS

MAPAT SENSOR

THROTLE SHAFT

THROTTLE VALVE

DISCONNECT THE THROTTLE BODY

● Disconnect fuel tank and air cleaner.

● Remove the gasoline in fuel tube.

● Disconnect fuel tube securing injector cap.

● Disconnect TPS, ISA, MAPAT, injector coupler.

● Disconnect throttle cable.

●Do not disconnect both the throttle adjust screw

and adjust nut.

CAUTION

△

REMOVE

● Loosen the throttle body 2 bolts securing the

insulator.

● Disconnect the TPS (Throttle position sensor).

● Disconnect the ISA(Idle speed actuator).

● Disconnect the MAPAT.

CHECKING THE THROTTLE BODY

● Checking the TPS.

● Checking the ISA.

● Checking the MAPAT.

● Checking the throttle shaft.

● Checking the valve.

● Assembly is the reverse order of removal.

● Install the O-ring on the throttle body.

●Do not disconnect the throttle valve.

CAUTION

△
