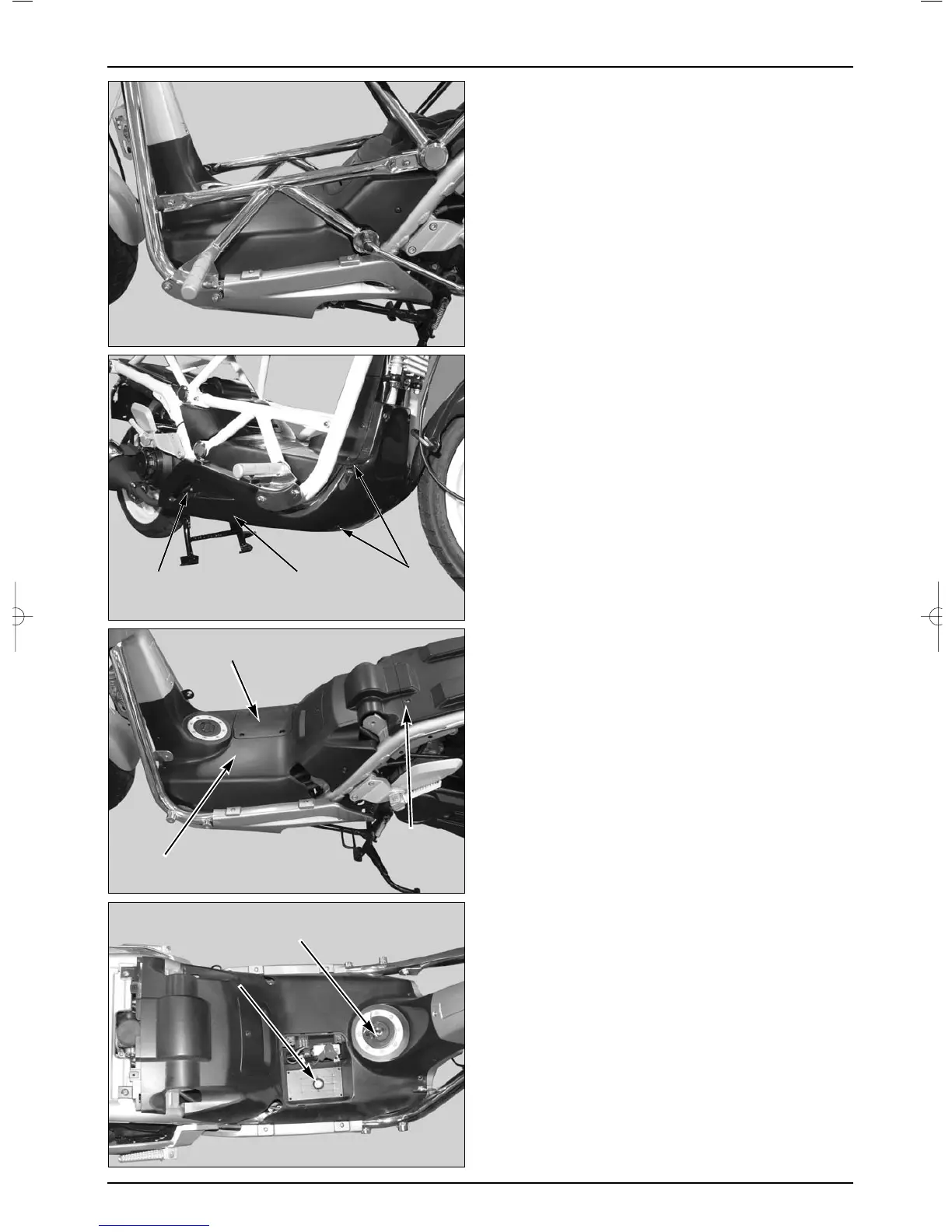

TRUSS PIPE

REMOVAL/ASSEMBLY

●Remove the bar end cap B.

●Loosen the flange bolt.

●Loosen the 4 cap bolts.

●Remove the truss pipe.

●Install in the reverse order of removal.

FLOOR SIDE COVER

REMOVAL/ASSEMBLY

●Loosen the 6 special screws LH., RH. in floor

side cover and loosen the 4 tapping screws

RH., LH.

●Remove the floor side cover (R/L).

●Install in the reverse order of removal.

FLOOR PANEL

REMOVAL/ASSEMBLY

●Remove the rear fender and upper cover.

●Remove the support pipe.

●Remove the truss pipe.

●Remove the center cover.

●Remove the batery and loosen the flange bolt

securing under.

●Remove the fuel cap neck.

3-7

EXTERNAL PARTS

SPECIAL SCREW

SPECIAL SCREW FLOOR SIDE COVER

FLOOR SIDE COVER

TAPPING SCREW

BATTERY COVER

FLOOR PANEL

CENTER COVER

FLANGE BOLT

FUEL CAP NECK
