5-4
EMS(Engine Management System)

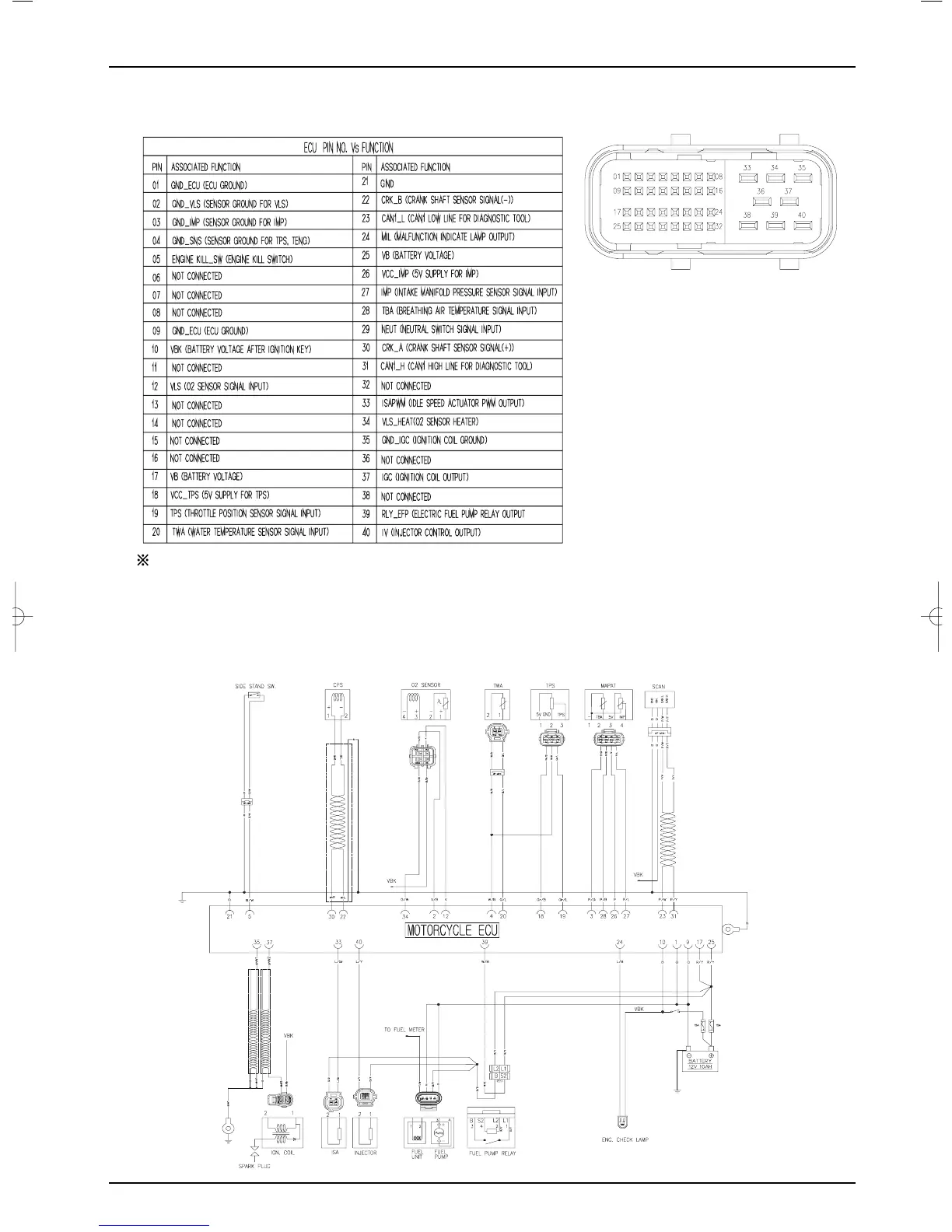

3. TERMINAL ARRANGEMENT OF THE ECU
Remarks
ECU PIN NO. 6,7,8,1
1,13,14,15,16,21,29,32,36,38 were not connected.
4. WIRING DIAGRAM OF THE ECU
55
57
Table of Contents
Table of Contents
3
Service Information
5
Serial Number Location
5
Specifications
7
General Safety
14
Service Rules
14
Caution When Wiring
18
2. Inspections/Adjustments
23
Inspections/Adjustments
23
Transmission Oil
29
Engine Oil
29
Drive Belt
29
Brake Fluid
30
Brake Pad
30
Brake System
30
Side Stand
31
Steering Stem
32
Lubrication Points
33
External Parts
35
Maintenance Procedure
36
Front Cover
37
Front Fender
38
Front under Cover
38
Rear Fender
39
Rear Upper Cover
39
Seat
39
Center Cover
40
Rear under Cover
40
Seat Support Pipe
40
Floor Panel
41
Floor Side Cover
41
Truss Pipe
41
Rear Wheel Mudguard
42
Under Cover
42
Muffler
43
Lubrication System
45
Ems(Engine Management System)
53
Caution When Repairing the Ems Parts
54
The Component Parts of the Ems
55
Terminal Arrangement of the Ecu
56
Wiring Diagram of the Ecu
56
How to Check the Fault Code
59
How to Show the Fault Code
60
How to Read the Fault Code
60
Ems Trouble Shooting
62
Throttle Body
64
Fuel Pump
91
Fuel System
101
Fuel Tank
103
Engine Removal/Installation
113
Engine Removal
114
Engine Installation
115
Lh. Crankcase Cover
118
Tightening Torque
118
Movable Drive Face
121
Driven Pulley
124
Generator / Starter Clutch
130
Starter Clutch
136
Cylinder Head / Valves
141
Cylinder Head / Piston
145
Cylinder Head Inspection
146
Transmission/Crankshaft/Crank Case
164
Front Wheel/Front Fork/Steering 13. Front Wheel/Front Fork/Steering
177
Front Wheel/Front Fork/Steering
177
Troubleshooting
178
Steering Handle
179
Front Wheel
180
Speedometer Gear
182
Front Wheel Installation
183
Front Fork
183
Front Fork Inspection
186
Steering Stem
188
Rear Wheel / Suspension
191
Rear Cushion
195
Rear Swing Arm
196
Brake System
201
Rear Brake Caliper
208
Brake Disk
213
Charging System
215
Charging System Inspection
218
Ignition System
221
Starter System
227
Starter Motor
229
Lights/Switches/Horn
235
Headlight
236
Front Winker
236
Bulb Replacement
236
Rear Tail Light
237
Rear Winker
237
Speedometer
237
Main Switch
238
Handle Bar Switch
238
Dimmer Switch
238
Headlight Switch
239
Horn Switch
239
Front/Rear Stop Switch
239
Fuel Gauge
240
Wiring Diagram(Euro2,Euro3)
243
