13-3
FRONT WHEEL/FRONT FORK/STEERING
STEERING HANDLE

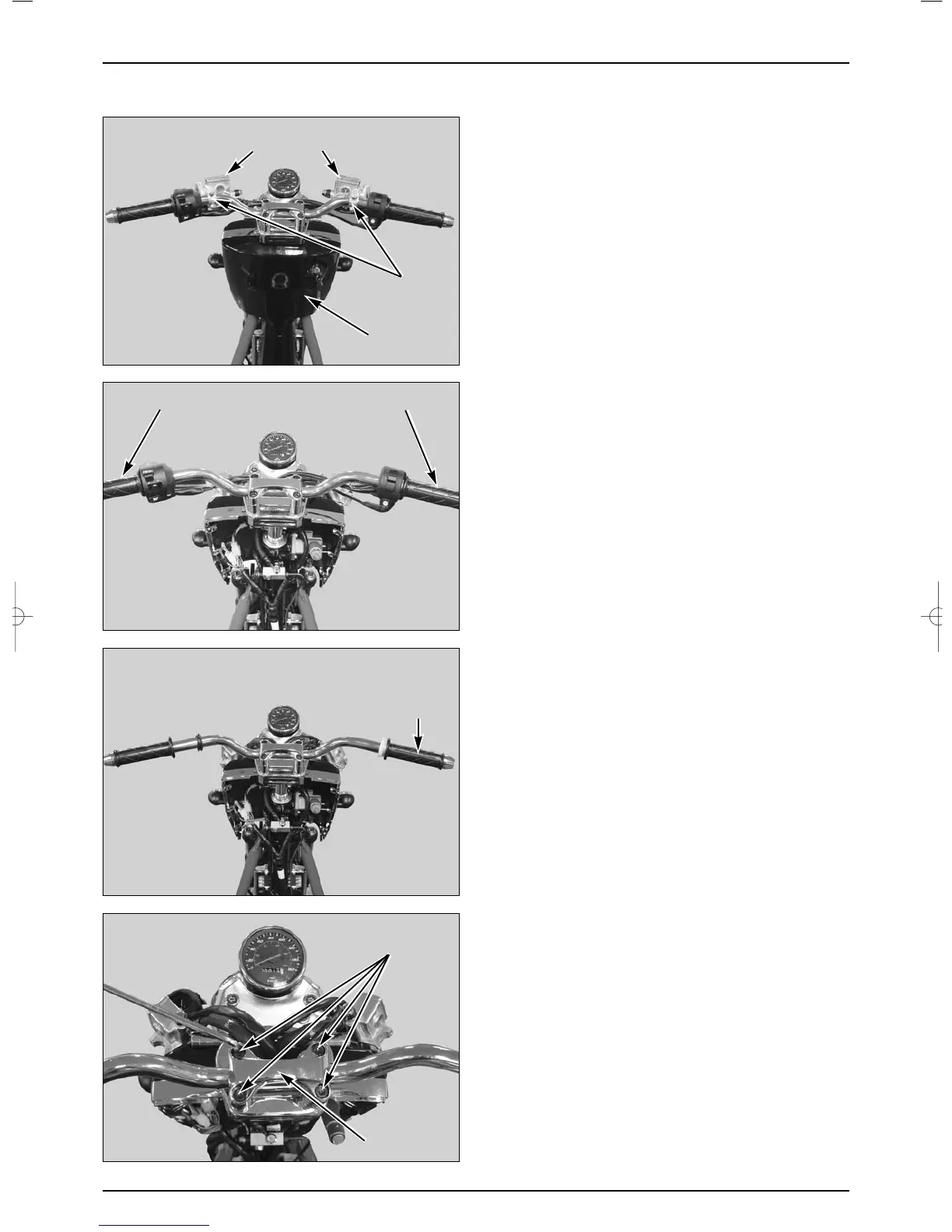

REMOVAL
● Loosen the bolts securing the front and rear break
master cylinder.
● Disconnect the throttle cable from the throttle grip.
● Remove the handle grip from the handlebar.
● Remove the cap on the handle upper holder.
● Loosen the hexbolt securing handle bar and remove the
steering handle comp.
