15-8

BRAKE SYSTEM

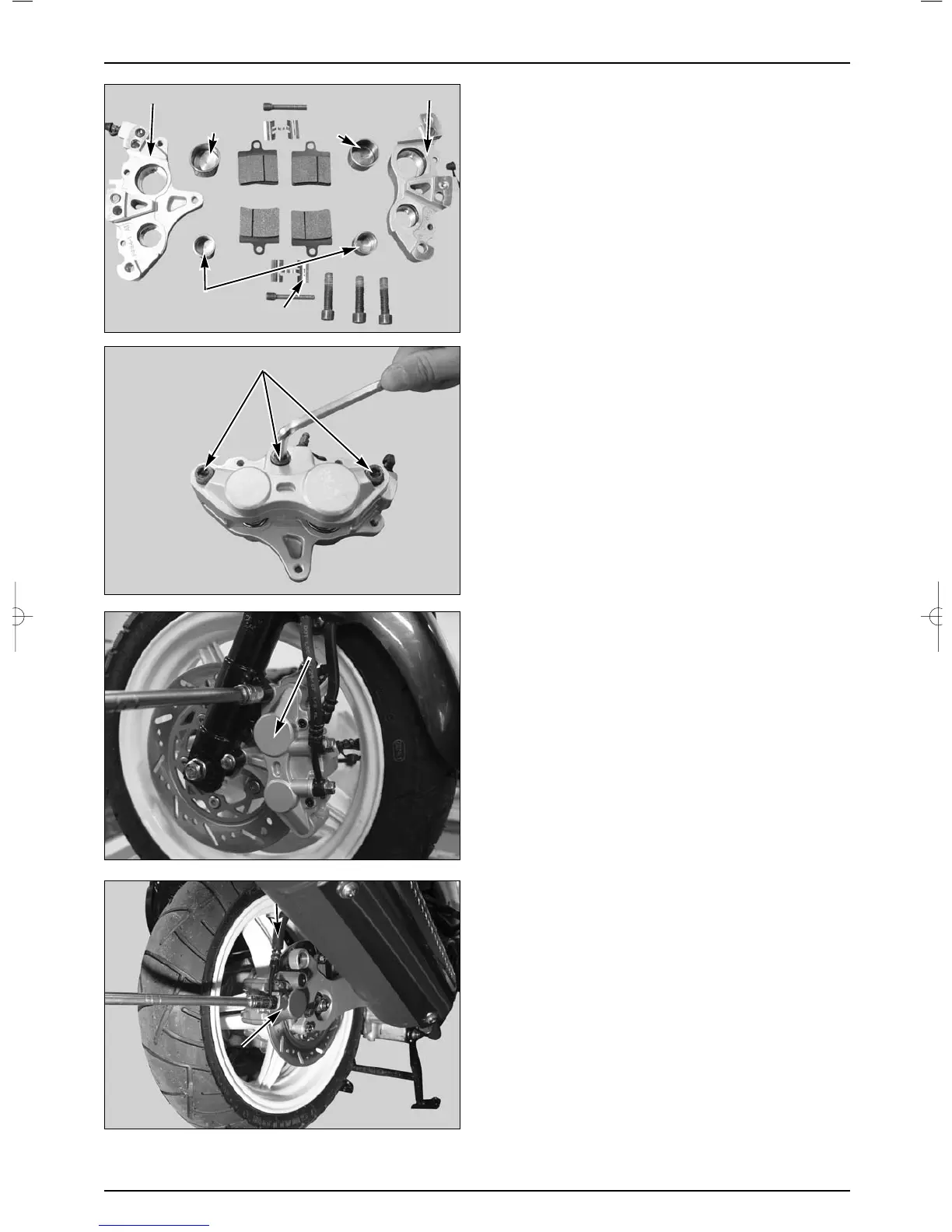

LH CALIPER BODY

PISTON A

HANGER PIN

RH CALIPER BODY

PISTON B

PAD SPRING

SOCKET BOLT

FR. CALIPER

RR. CALIPER

RR. BRAKE HOSE

BRAKE PAD

ASSEMBLY

● Clean the piston seal and the dust seal with the brake

fluid and install them in the caliper.

● Install the piston in the caliper with the groove side of

the piston facing the pad.

INSTALLATION

● Install the brake caliper to the from fork, and front axle.

● Install the caliper to the specified torgue.

TORQUE VALUE : 3.0 kgf

● Install the brake hose to the caliper body with the new

2 oil bolts washer and oil bolts.

● Install the oil bolt to the specified torgue.

TORQUE VALUE : 3.4 kgf

● Fill the brake fluid, and bleed air.

● Install the RH./LH. caliper body.

● Install the socket bolt.

● Install pad spring to the caliper.

● Install caliper hanger pin bolt to the pad comp and

caliper bracket to the caliper body.

● Install the brake pad to the caliper.

REAR BRAKE CALIPER

REMOVAL

● Loosen the rear brake hose bolt and remove the brake

hose.

● Loosen the 2 bolts and remove the rear brake caliper.
