BRAKE SYSTEM

DUST SEAL

PISTON

AIR GUN

CALIPER BODY

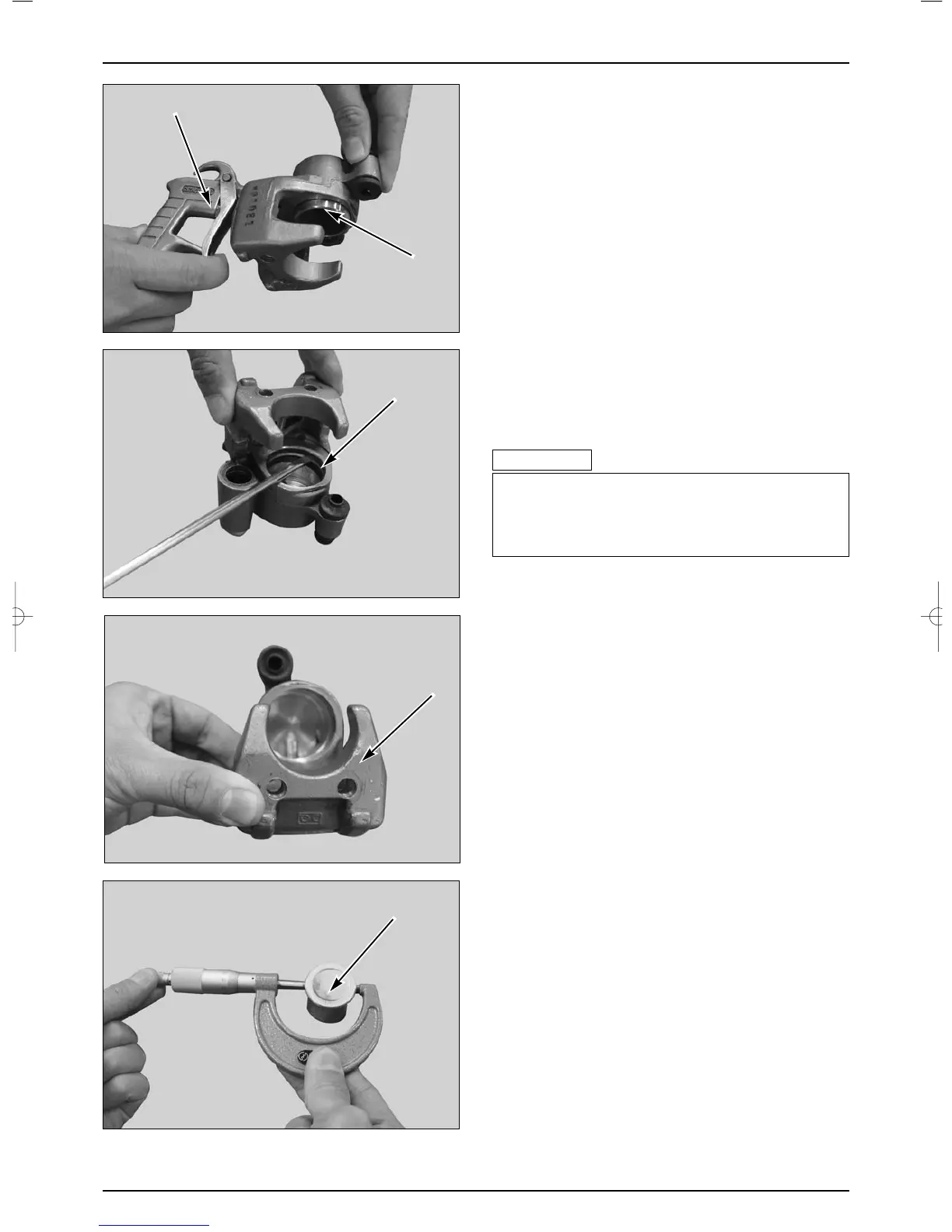

DISASSEMBLY

● Remove the rear brake caliper.

● Check the caliper assembly.

● Remove the pad spring, slide pin, caliper bracket and

boot from the caliper body.

● If there is any wear or damage in the boot, replace it

with a new one.

● Wrap the caliper with a piece cloth to avoid piston and

brake fluid leakage and facing the piston downward.

● Remove the piston from the caliper, while blowing the

low-pressure air in the opening of the brake hose.

● Disassemble the piston seal and the dust seal.

● Clean the piston and inside of the caliper with the brake

fluid.

●Never use the high-pressure air or bring the air gun too

close.

●Never touch the inside of the caliper.

CAUTION

△

INSPECTION

● Check the caliper cylinder bore for scoring scratches or

other damage.

● Measure the caliper cylinder I.D

CYLINDER I.D.B : 25.07mm

● Check the caliper piston outer diameter part for

scratches or other damage.

● Measure the piston outer diameter .

SERVICE LIMIT : 24.8mm
