DAELIM B-BONE

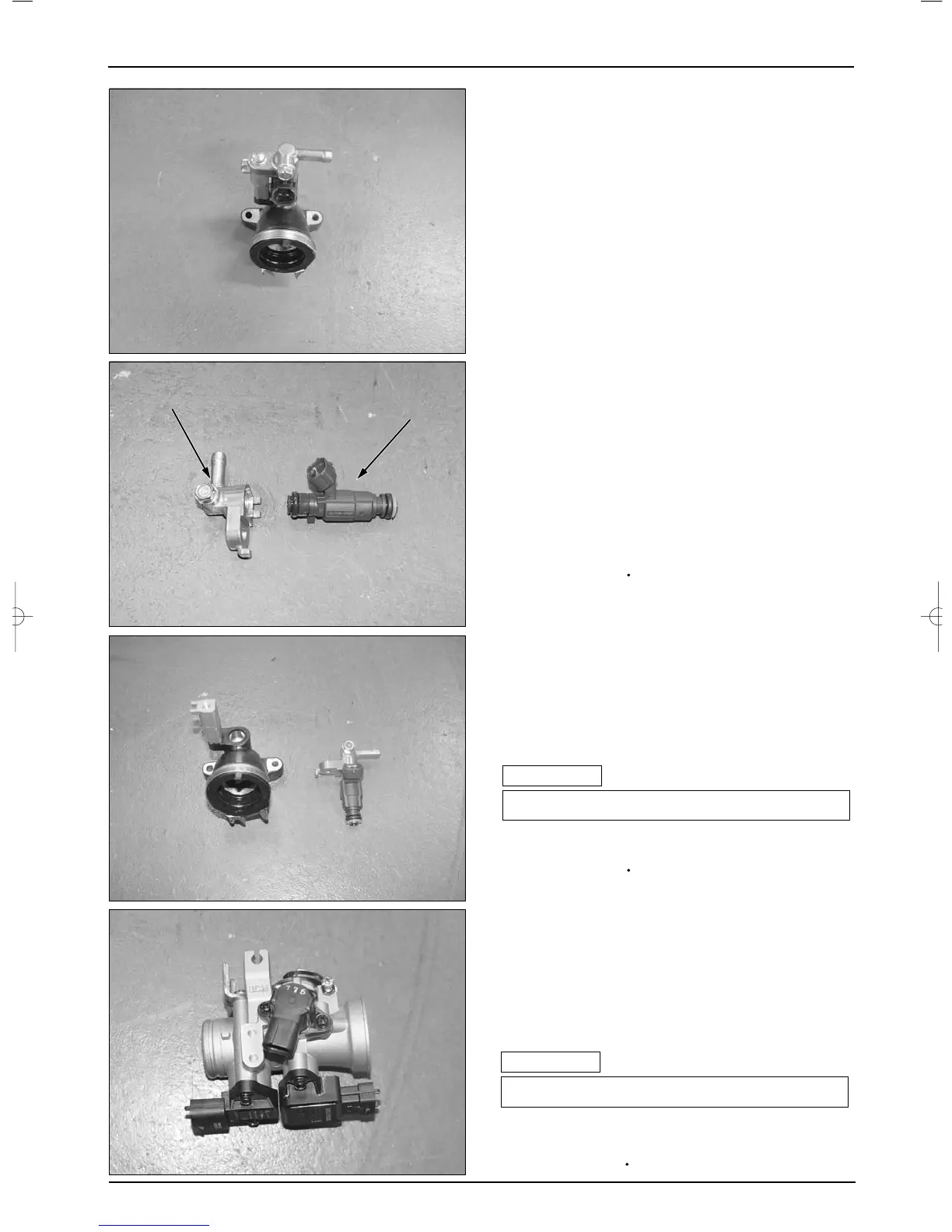

CHECKING THE INSULATOR
● Check the O-ring.
● Check the insulator inside.
● Check the insulator cap inside.
ASSEMBLY OF THE INSULATOR
● Assemble is the reverse order of removal.
● Assemble the O-ring to insulator.
● Install the insulator to the throttle body.
●Torque : 1.0 kgf m
DISASSEMBLE THE INSULATOR
● Disconnect injector cap bolt.
● Disconnect injector and injector cap at the
same time from the insulator.
● Disconnect injector and injector cap.
● Remove the injector and check.
ASSEMBLY OF THE THROTTLE BODY
● Assemble is the reverse order of removal.
● Assemble the O-ring to the insulator.
● Assemble the insulator to the throttle body.
●Torque : 1.0 kgf
m
!
CAUTION
△
● Replace the o-ring with new one.
INSTALLATION OF INSULATOR AND
THROTTLE BODY
● Installation of insulator and throttle body in the
reverse order of removal.
● Check the o-ring when the insulator assembly.
● Assemble the insulator gasket.
● Install the assembled insulator and throttle
body to the cylinder head.
●Torque : 1.2 kgf m
!
CAUTION
△
● Replace the gasket with new one.
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
INJECTOR CAP
5-14
EMS(Engine Management System)
