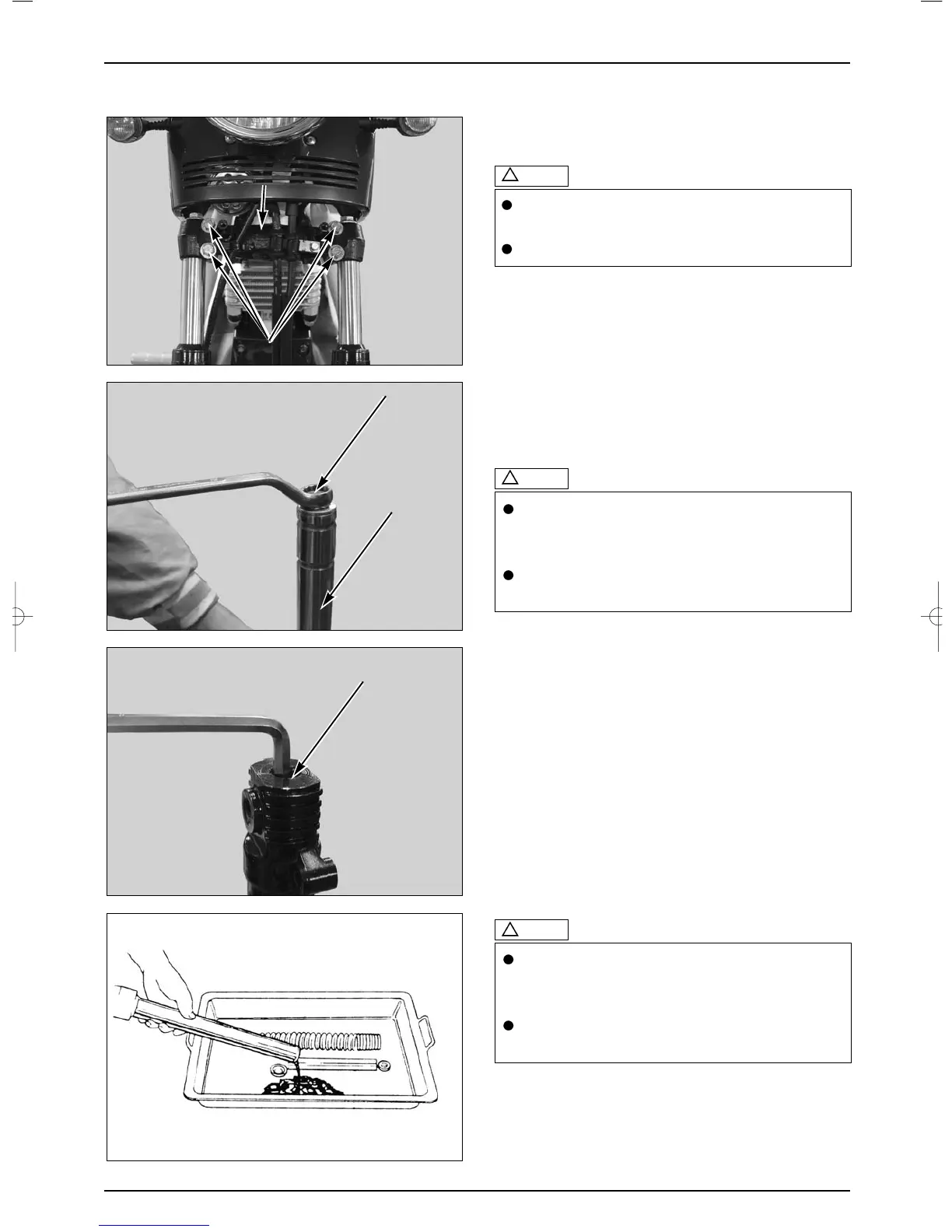

13-8

FRONT WHEEL/FRONT FORK/STEERING

DISASSEMBLY

● Remove the fork pipe bolt.

● Wrap the bottom case with a piece of cloth, and

remove the socket bolt.

● When removing the front fork, loosen the flange bolt

lightly.

● Loosen the 4 setting bolts securing the RH./LH. front

fork, remove the RH./LH. front fork.

● After removal of RH. front fork, loosen the flange bolt

and remove the front brake hose clamp A.

STEERING STEM COMP

FLANGE BOLT

FRONT FORK BOLT

FRONT FORK PIPE

SOCKET BOLT

Support the vehicle securely under the engine not

to turn over it.

Loosen the flange bolt, but do not remove it.

NOTE

If the screw is completely loosened, the fork tube

cap bolt may spring out by the force fo the spring.

Take due precautions.

Remove the fork spring, and expand and release

the fork pipe several times to drain fork oil.

NOTE

If the socket bolt turns idle, but cannot be

removed, temporarily assemble the spring and

the fork tube cap bolt first.

Hold the bottom case firmly with a vise, taking

precautions not to distort or damage it.

NOTE
