LH.CRANK CASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
OUTER BALL BEARING
INNER NEEDLE BEARING
MOVABLE DRIVEN FACE SPRING
FREE
LENGTH
VERNIER
CALIPER
CLUTCH OUTER
CLUTCH SHOE

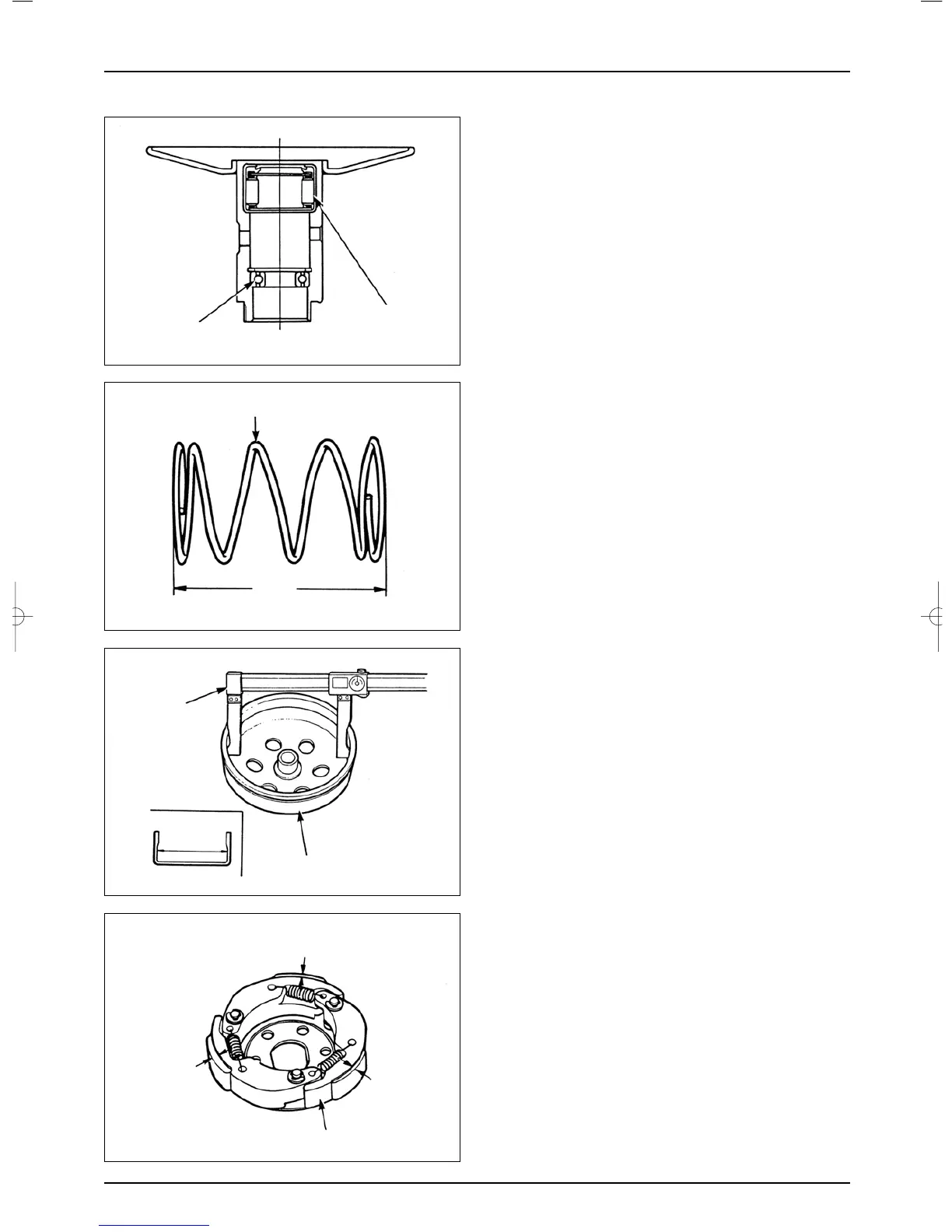

DRIVEN PULLEY INSPECTION
DRIVEN FACE BEARING INSPECTION
● Check the each parts.
● Check the driven face needle bearing(inner) for
damage or excessive play and replace as necessary.
● Turn the inner race of the ball bearing with your finger.
Check that the bearing turns smoothly and quietly, and
that the bearing outer race fits securely.
● Replace the bearing (8-11).
MOVABLE DRIVEN FACE SPRING INSPECTION
● Measure the free length of the driven pulley spring and
replace if the service limit is exceeded.
SERVICE LIMIT : 135mm
TOOL : VERNIER CALIPER
CLUTCH OUTER
● Measure the I.D. at shoe contact surface of the clutch
outer. Replace the outer if the service limit is exceeded.
SERVICE LIMIT : 125.5mm
CLUTCH SHOE INSPECTION
● Check the clutch shoe for wear or damage.
● Measure the thickness of each shoe.
SERVICE LIMIT : 2.0mm
