8-11

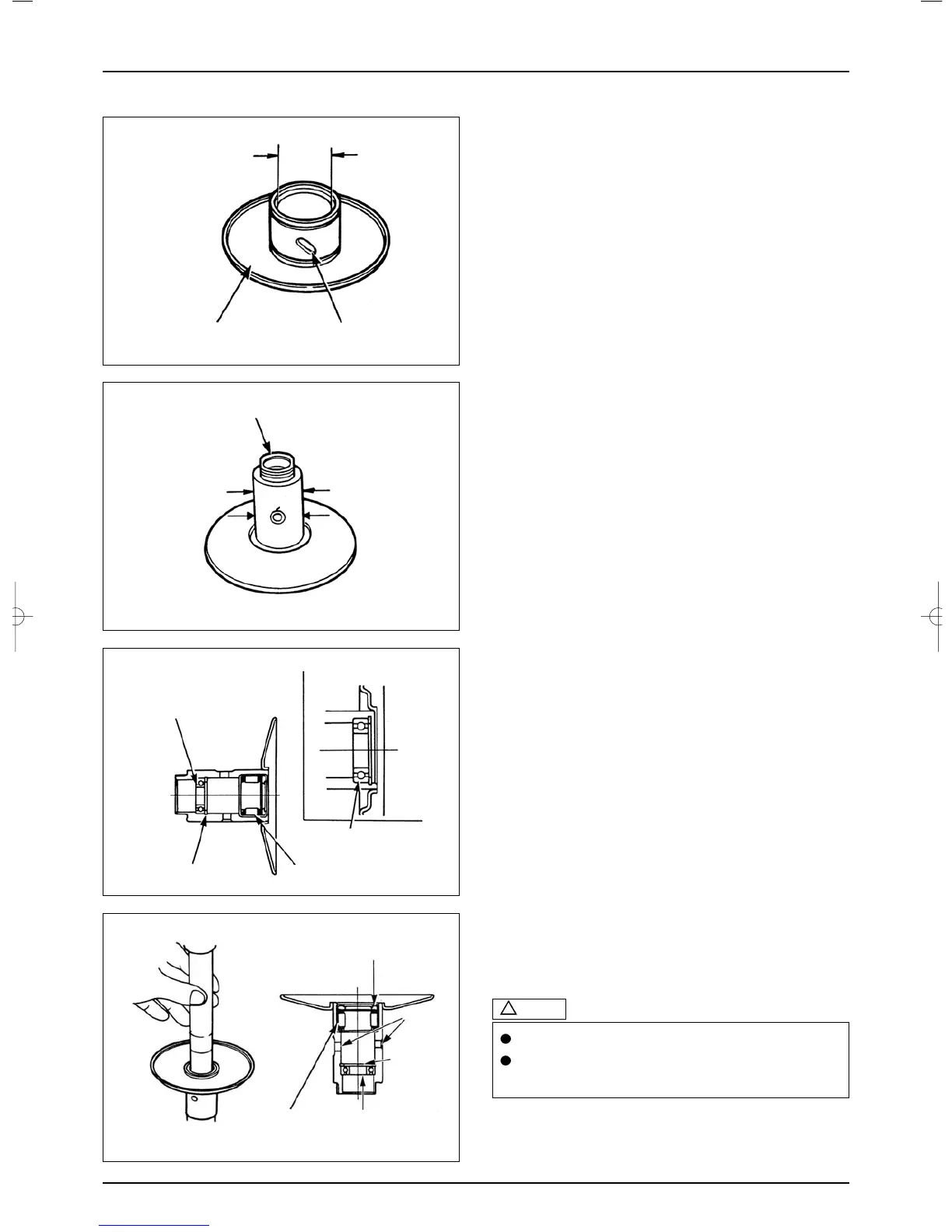

LH.CRANK CASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
MOVABLE DRIVEN FACE
GUIDE GROOVE
DRIVE FACE
OUTER BEARING
SNAP RING
SEALED SIDE
INNER NEEDLE
BEARING
OUTER BEARING
SNAP RING
SPECIFIED
GREASE
INNER REARING
INNER BEARING
● Check the following;
- Movable driven face for damage or excessive wear.
- Guide pin groove for damage or deformation.
● Replace damaged or worn parts as necessary.
● Measure the I.D. of the movable driven face; replace if
the service limit is exceeded.
SERVICE LIMIT : 34.060mm
● Check the driven face for damage or excessive wear;
replace as necessary.
● Measure the O.D. of the driven face; replace if the
service limit is exceeded.
SERVICE LIMIT : 33.785mm
● Install in a new inner bearing.
TOOLS : BEARING DRIVEN ATTACHMENT
DRIVE PILOT
DRIVEN FACE BEARING REPLACEMENT
● Remove the inner bearing.
● Remove the snap ring then drive out the outer bearing
toward the inner bearing side.
● Drive a new outer bearing into place with the sealed
end toward the outside. Install the snap ring securely.
● Apply the specified amount of specified grease as
shown.
GREASE APPLICATION : 9.0~9.5 g
Install the cir-clip fimly to the groove.
Install the inner-bearing using a hydraulic press.
!
NOTE
To Next Page
