8-12
LH.CRANK CASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
OIL SEAL
O-RING
MOVABLE DRIVEN FACE
DRIVEN FACE
GUIDE PIN
SEAL COLLAR
LOCK NUT WRENCH
CLUTCH SPRING COMPRESSOR
GUIDE PIN
GUIDE ROLLER PIN
GUIDE ROLLER
DRIVEN FACE / MOVABLE DRIVEN FACE

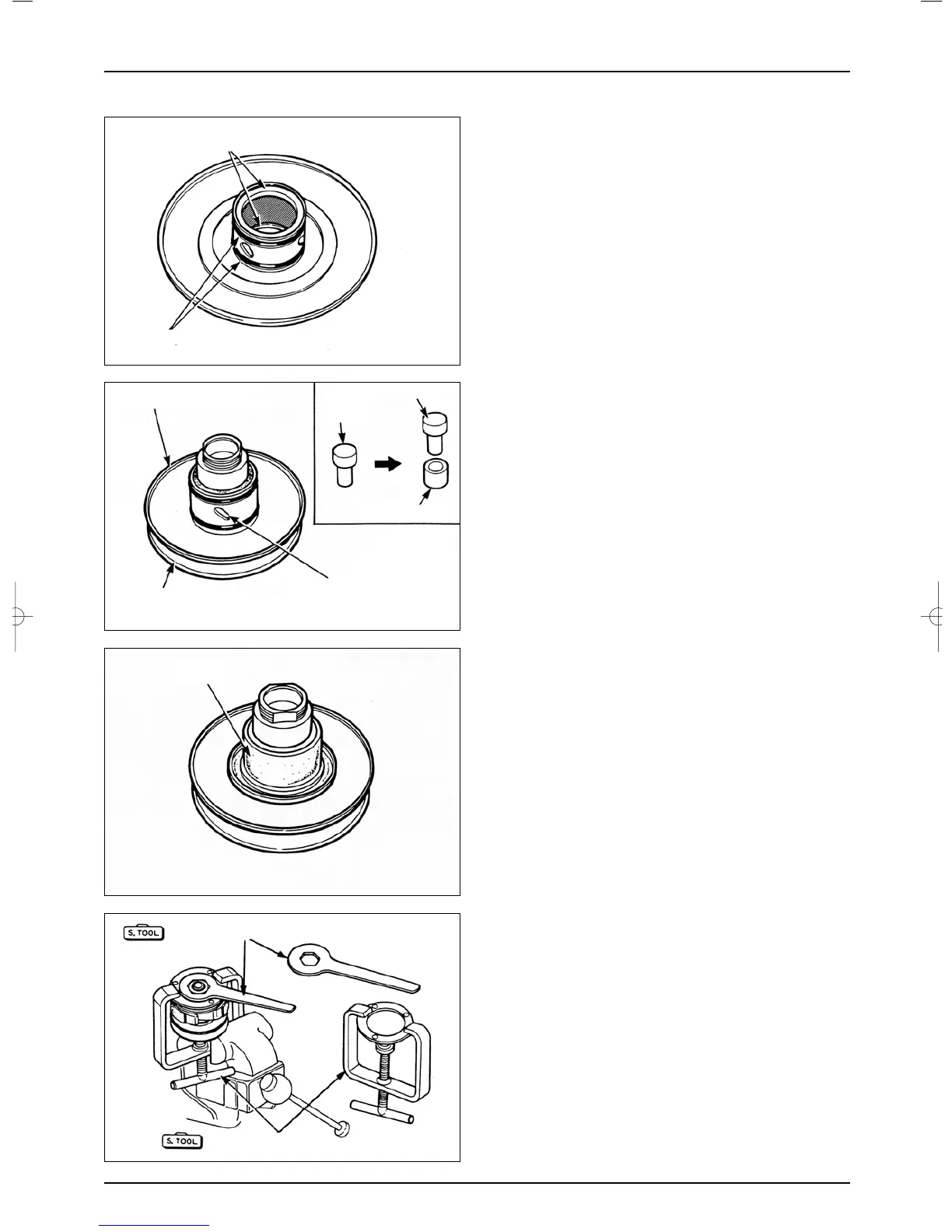

● Install new oil seal and O-ring on the movable driven
pulley face.
● Install the movable face on the driven pulley face.
● Install the guide rollers and guide pins.
● Install the seal collar.
DRIVEN PULLEY SUB ASS’Y
● Install the spring guide, driven face, drive plate ass’y.
● Compress the assembly by turning the tool handle until
the special nut can be installed.
● Clamp the clutch spring compressor in a vise and
tighten the lock nut to the specified torque using the
lock nut wrench.
TORQUE VALVE : 5.5kgf
··
m
● Remove the spring compressor.
TOOL : CLUTCH SPRING COMPRESSOR
LOCK NUT WRENCH
To Next Page
