8-13

LH.CRANK CASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION

DRIVE BELT

DRIVE FACE

DRIVEN PULLEY

‚ﬁ” ˙ﬁ‚ﬁ



‚ﬁ” ˙ﬁ‚ﬁ

‚ﬁ” ˙ﬁ‚ﬁ



‚ﬁ” ˙ﬁ‚ﬁ

‚ﬁ” ˙ﬁ‚ﬁ

‚

ﬁ” ˙ﬁ‚ﬁ

‚ﬁ” ˙ﬁ‚ﬁ

DRIVEN PULLEY

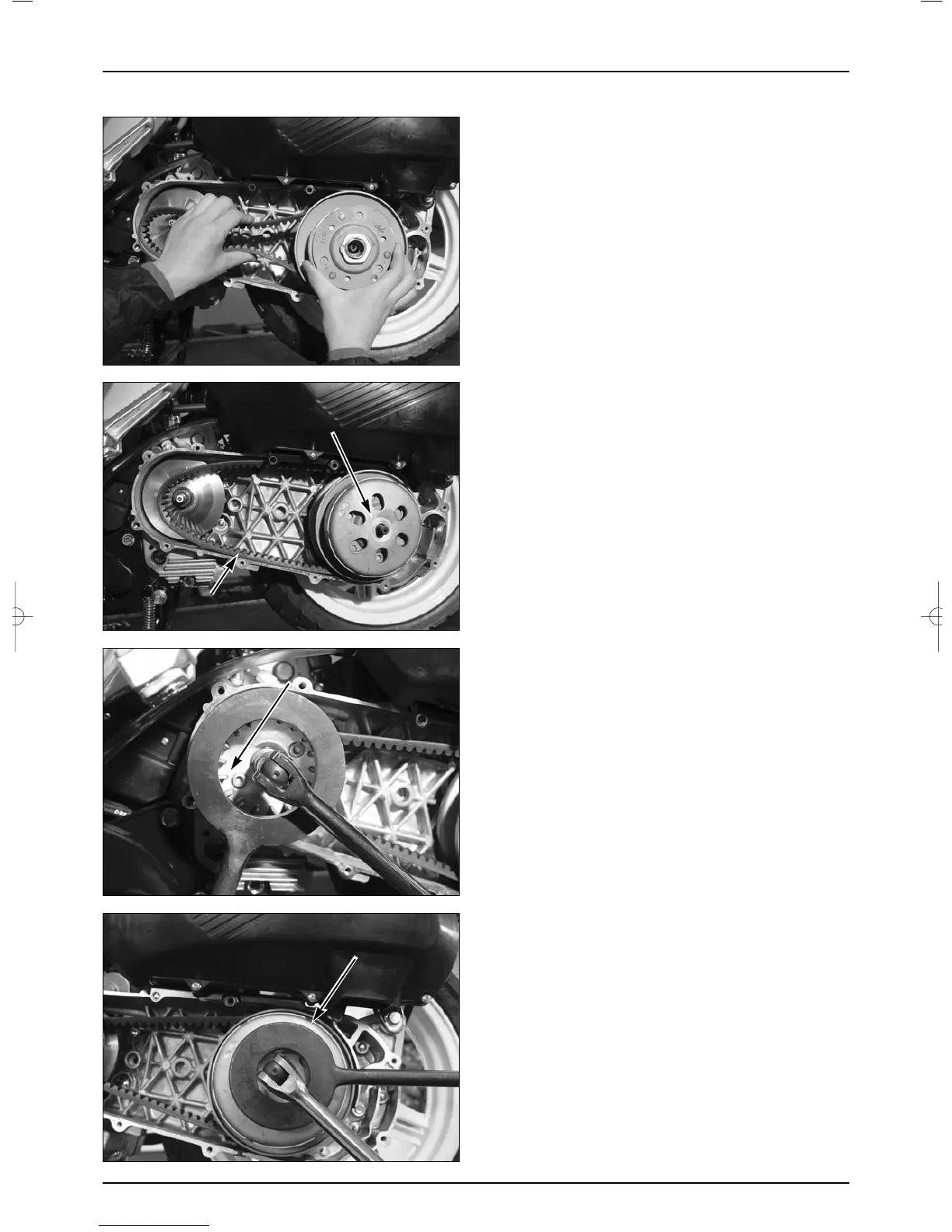

● Install the clutch onter into driven pulley sub ass’y and

flange nut.

● Hold the clutch outer using drive universal holder,

install the flange nut to the specified torque.

TORQUE VALVE : 5.5kgf

··

TOOL : UNIVERSAL HOLDER

● Install the LH. crank case cover, and tighten the flange

bolt.

● Install the drive face, rear axcel collar drive pulley nut.

● Tighten to the specified torque using drive face holder.

TORQUE VALVE : 7.0~8.0kgf

··

TOOL : DRIVE FACE HOLDER

CLUTCH/DRIVEN PULLEY INSTALLATION

● Turning the driven pulley ass’y rightside, extend the

belt assemble groove maximum.

● Install the drive belt into driven pulley sub ass’y, install

the drive shaft.

● Install the drive belt into movable drive face..
