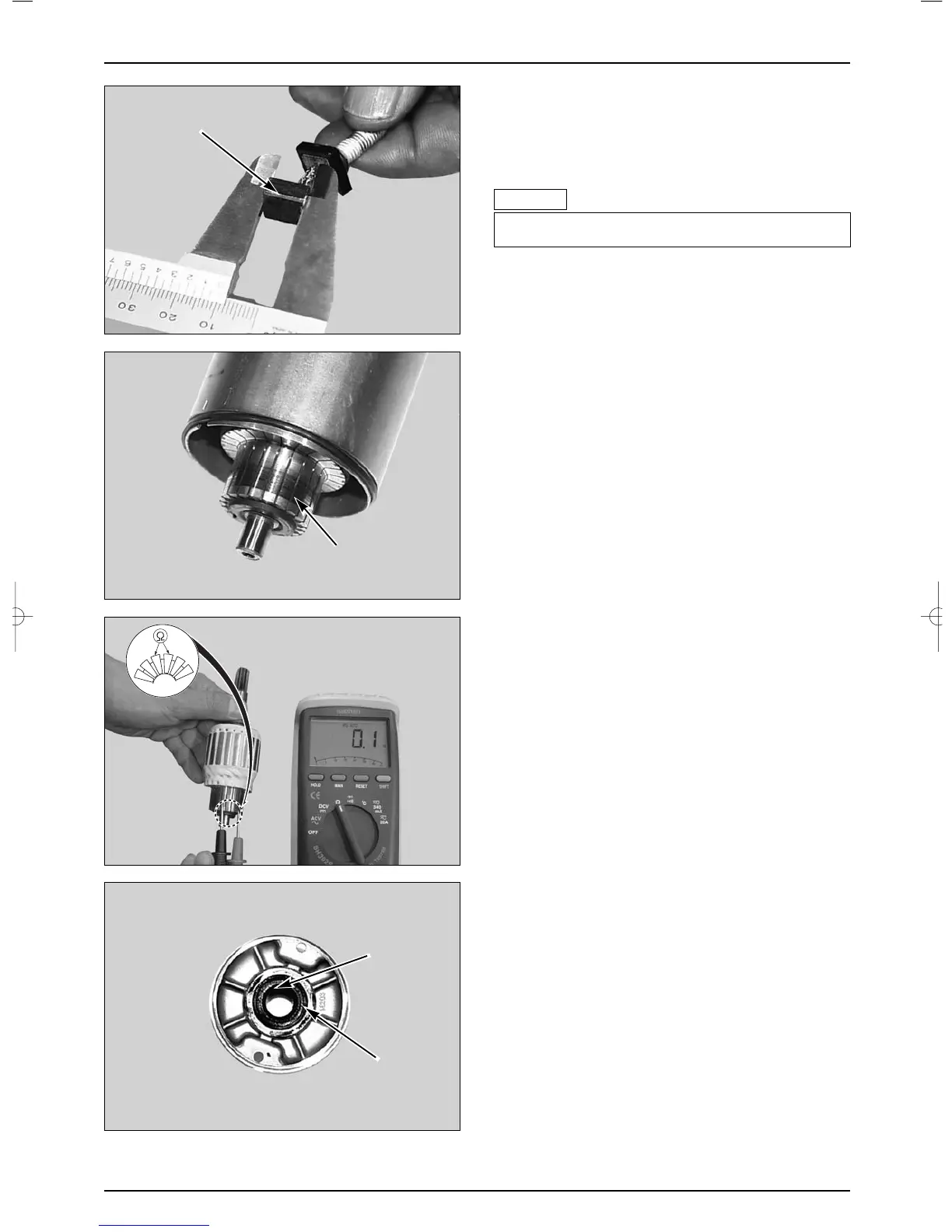

● Remove the brush spring, and then remove the brush.

● Measure the brush length. Replace the brush if it is

worn beyond the service limit.

SERVICE LIMIT : 5 mm

TOOL : VERNIER CALIPER

● Check the commutator for :

-Damage or abnormal wear. → Replace with a new

one.

-Discoloration of the commutator bar. → Replace with

a new one.

-Metallic debris between commutator bars.→ Clean it

off.

● Check for continuity between pairs of commutator

bars.

● Make a continuity check between individual

commutator bars and the armature shaft.

● There should be no continuity.

● Check the needle bearing and oil seal.

-Do not rotate smoothly. → Replace with a new one.

-Damage oil seal. → Replace with a new one.

18-4

STARTER SYSTEM

COMMUTATOR

OIL SEAL

NEEDLE BEARING

BRUSH

●If replacement, replace with a brush holder set.

NOTE

△
