18-5

STARTER SYSTEM

BRUSH HOLDER SET

RR. BRACKET

FR. BRACKET

FR. BRACKET YOKE

YOKE

YOKE RR. BRACKET

RR. BRACKET

MARK

SETTING BOLT

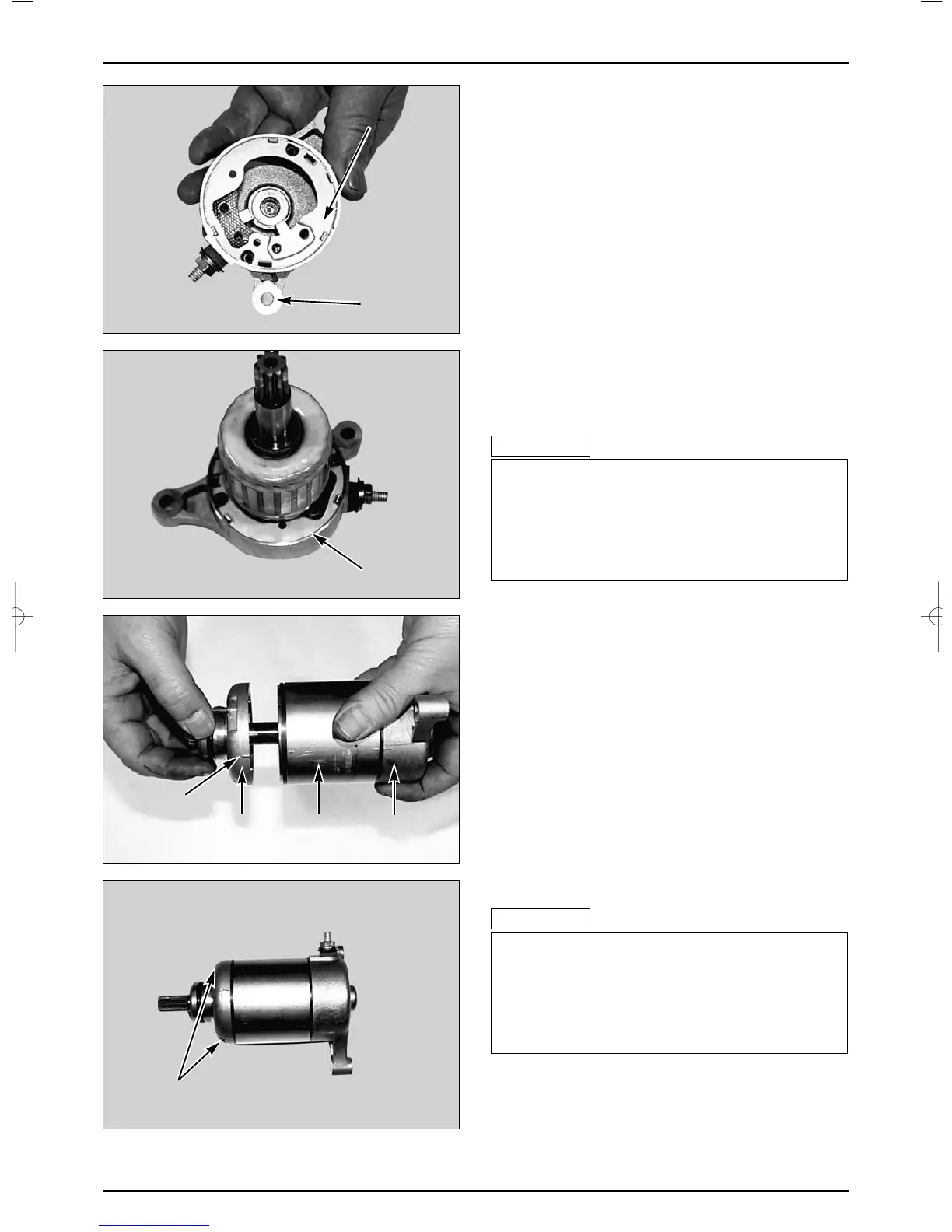

STARTER MOTOR ASSEMBLY

● Install the brush and brush spring to the brush hold set.

● Insert the brush terminal into the rear bracket, and

install the terminal set and flange nut.

● Align the brush holder set with the rear bracket

groove, and install the brush holder set.

● Apply grease to both ends of the armature shaft, and

install the 2 washers.

● Push and hold the brush inside the rear bracket, and

insert the armature into the rear bracket groove.

● Align the yoke with the rear bracket mark, and install

the yoke to the amature.

● Align the front bracket with the yoke mark, and install

the front bracket.

● Tighten the 2 set bolts.

●The sliding surfaces of the brushes can be damaged if

they are not installed properly.

●When inserting the armature into the case, hold the

armature tightly to keep the magnet from pulling the

armature against the case.

CAUTION

△

●When installing the cover, take care to prevent

damaging the oil seal lip with the shaft.

●Overtightening the starter motor cable terminal nuts

may cause the inside the starter motor, resulting in

serious damage to the inner connectors.

CAUTION

△
