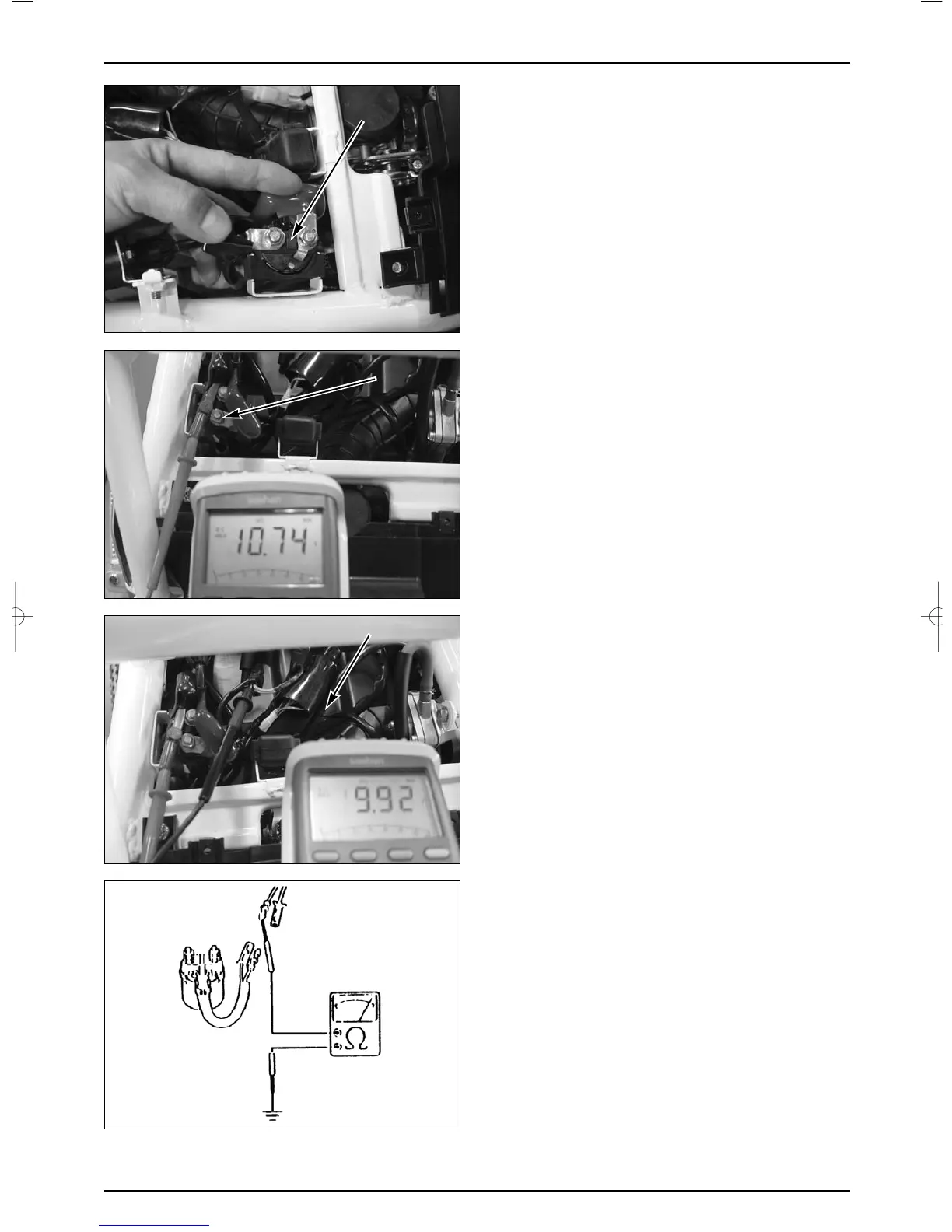

STARTER MAGNETIC SWITCH

REMOVAL

● Remove the center cover and battery cover.

● Remove the battery (+) cable from the starter magnetic

switch terminal.

● Remove the starter motor cable from the starter

magnetic switch terminal.

● Disconnect the yellow / red connector and green /

yellow connector from the wire harness.

● Remove the starter magnetic switch from the switch

setting bracket securing the frame.

● Install in the reverse order of removal.

INSPECTION

● Check if the starter magnetic switch “clicks” when it is

turned ON.

-Clicks →·Poorly connected battery terminal and

motor terminal of the switch. (Check

the starter magnetic switch)

-No clicks →·No starter magnetic switch input

voltage. (Faulty relay ground line and

starter magnetic switch)

Starter magnetic switch voltage

● Measure the voltage between the yellow / red wire (+)

and ground at the starter magnetic switch connector.

● If battery voltage appears only when the starter switch

is pressed, it is normal.

Starter magnetic switch ground line

● Disconnect the wire connector from the starter

magnetic switch and check for continuity between the

ground wire (green / yellow) and ground.

18-6

STARTER SYSTEM

STARTER MAGNETIC SWITCH
