CHARGING SYSTEM

BATTERY COVER

BATTERY

SCREW

CABLE

BATTERY

REMOVAL

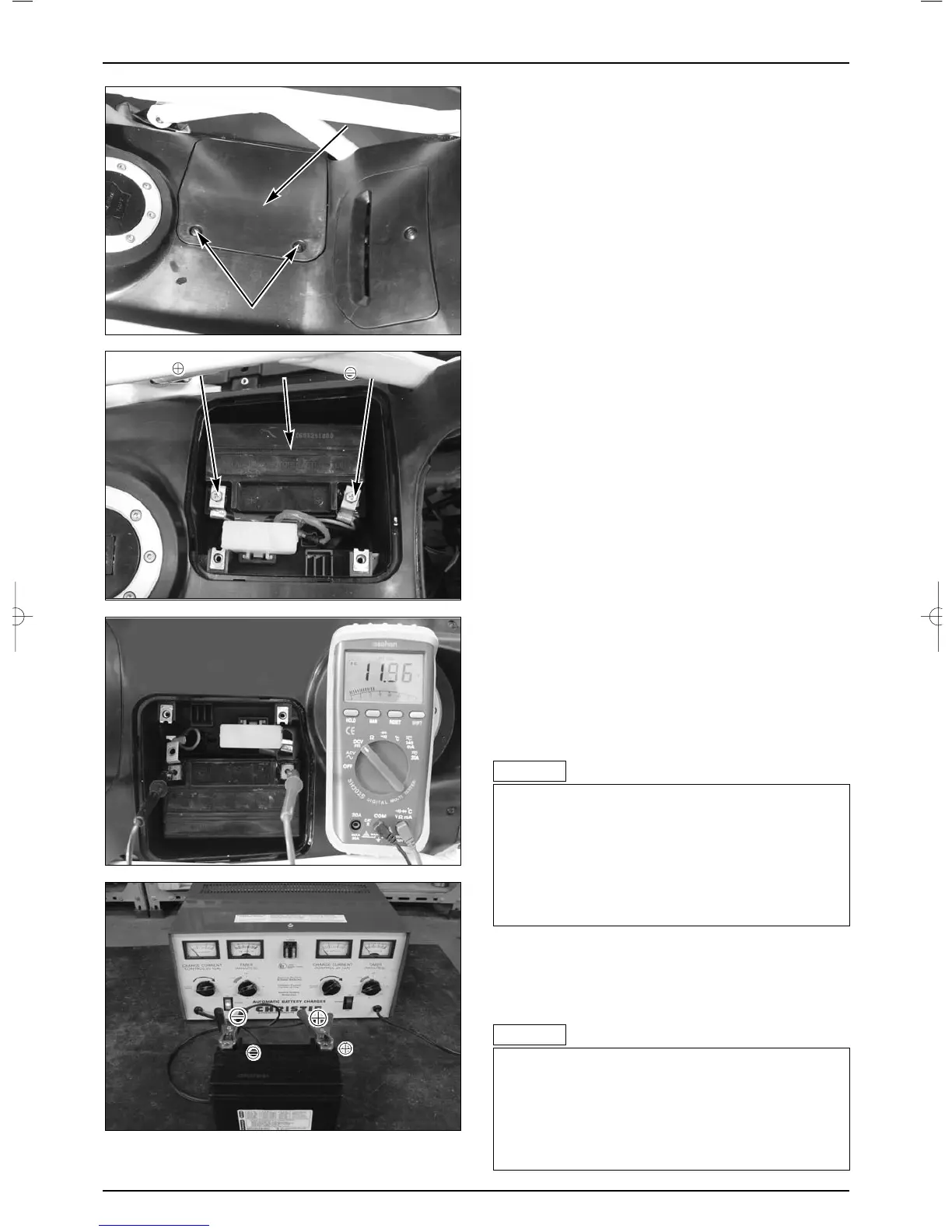

● Loosen the screws securing the battery cover and

remove the battery cover.

● Remove the battery.

● Disconnect the negative “⊖” battery cable first, and

then disconnect the positive “⊕” cable.

● The installation sequence is the reverse of removal.

BATTERY (OPEN-CIRCUIT VOLTAGE) INSPECTION

● Remove the battery cable.

● Disconnect the battery terminals from the battery.

● Measure the voltage between the battery terminals.

FULLY CHARGED : 13.0-13.2V

INSUFFICIENTLY CHARGED : UNDER 12.3V

TOOL : DIGITAL TESTER

● Connect the charger positive (+) cable to the battery

positive (+) terminal.

● Connect the charger negative (-) cable to the battery

negative (-) terminal.

●Use a voltmeter that will accurately indicate 0.1V

difference.

●When measuring the battery volate after driving, leave

it for at least 30 minutes, or the accurate results cannot

be obtained because the battery voltage fluctuates just

driving.

NOTE

△

●The rapid charging could be possible to reduce the

battery life and cause of damage.

●Avoid the rapid charging except emergency.

●Be sure to the battery charging is not allow to exceed

the specified changing time and current.

NOTE

△
