DAELIM B-BONE Service Manual

5-38
EMS(Engine Management System)

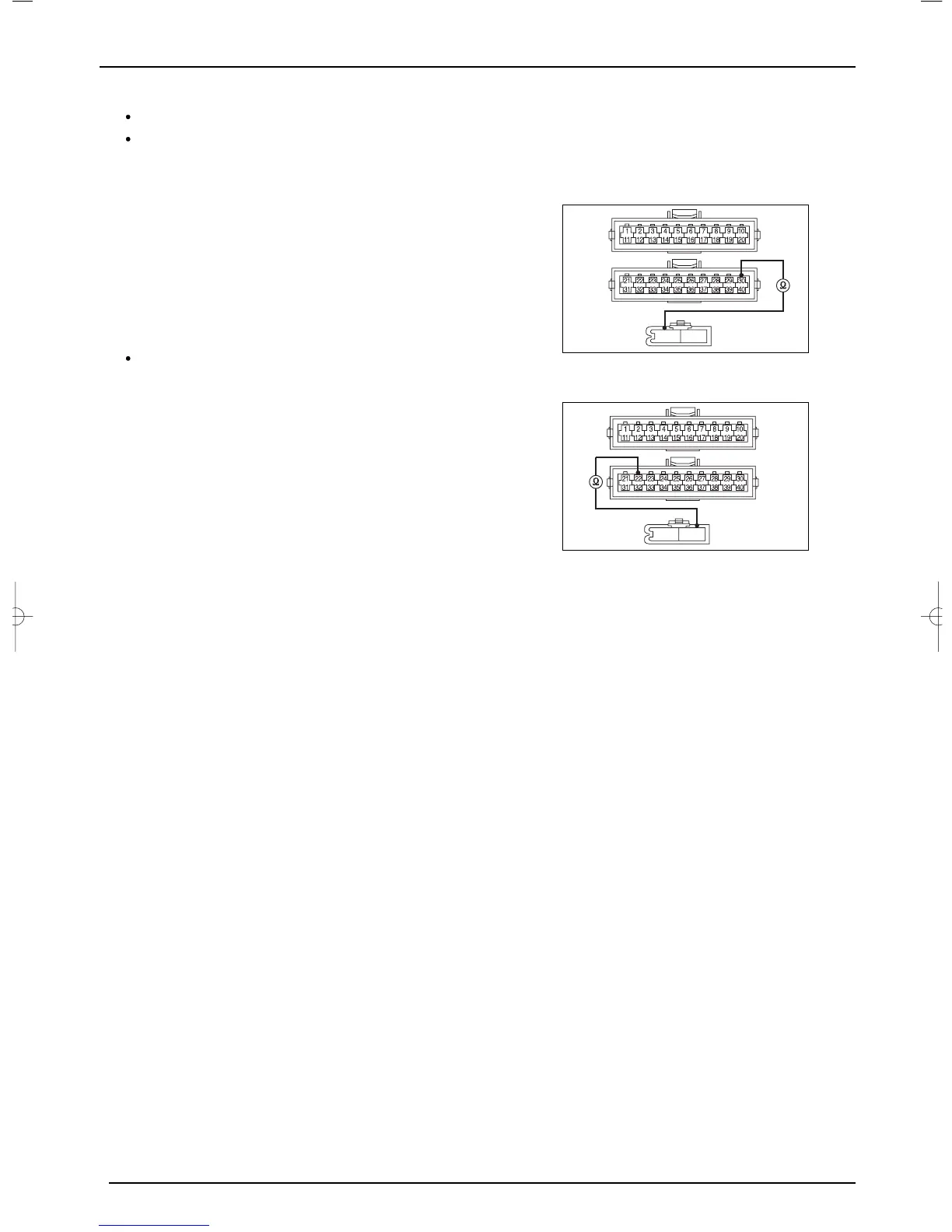

4) Check if crank signal A,B wires is breaks or not.
Remove the ECU, connect wire harness for inspection to wire harness of vehicle.
Check the wiring of crank signal A
- Measure terminal : No. 30 pin of wire harness for inspection - Red wire of coupler of CKP.
- Measuring resistance : 0 ~ 1[Ω]
Check the wiring of crank signal B
- Measure terminal : No. 22 pin of wire harness for inspection - Blue wire of coupler of CKP.
- Measuring resistance : 0 ~ 1[Ω]
5) After fault repaired, to erase the memorized fault code in the ECU is refer to how to remove the fault code(5-10)
CKP_B
CKP_A
1
2
CKP_B
CKP_A
1
2
Blue
Red
