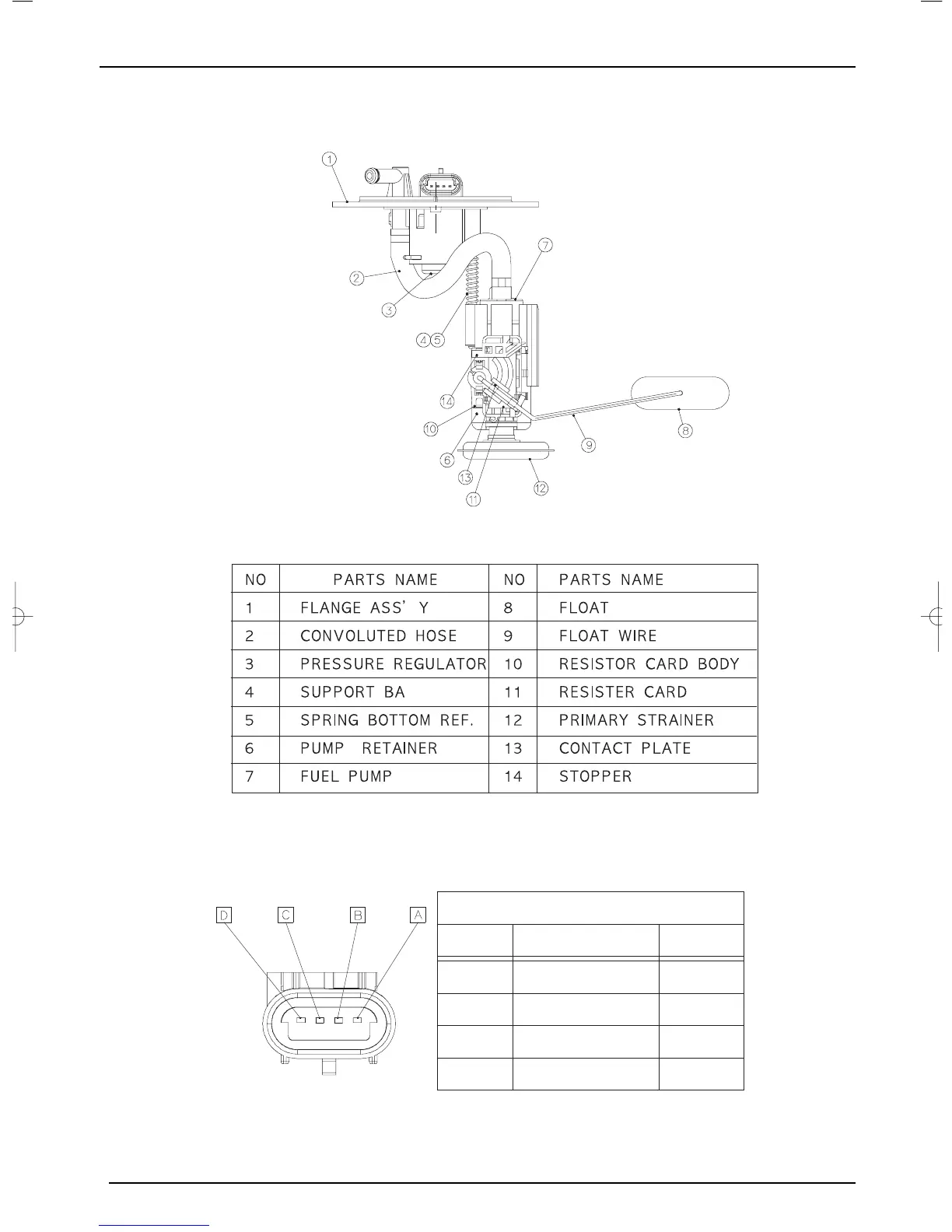

5-40
EMS(Engine Management System)
CONNECTOR WIRING
LOCATION
FUNCTION
COLOR
C
D
B
A
FUEL UNIT
FUEL UNIT2
PUMP (+)
GROUND
YELLOW
GREEN
RED
BLACK
● The terminal arrangement of the fuel pump
(The following color chart is the internal color of the fuel pump)
FUEL PUMP
