Dahua DH-XVR1B08 User Manual

Local Configurations 247
Port
Enter the port for the multicast. The port ranges from 1025 through
65000.
Table 5-67
Click Apply to complete the settings. Step 3

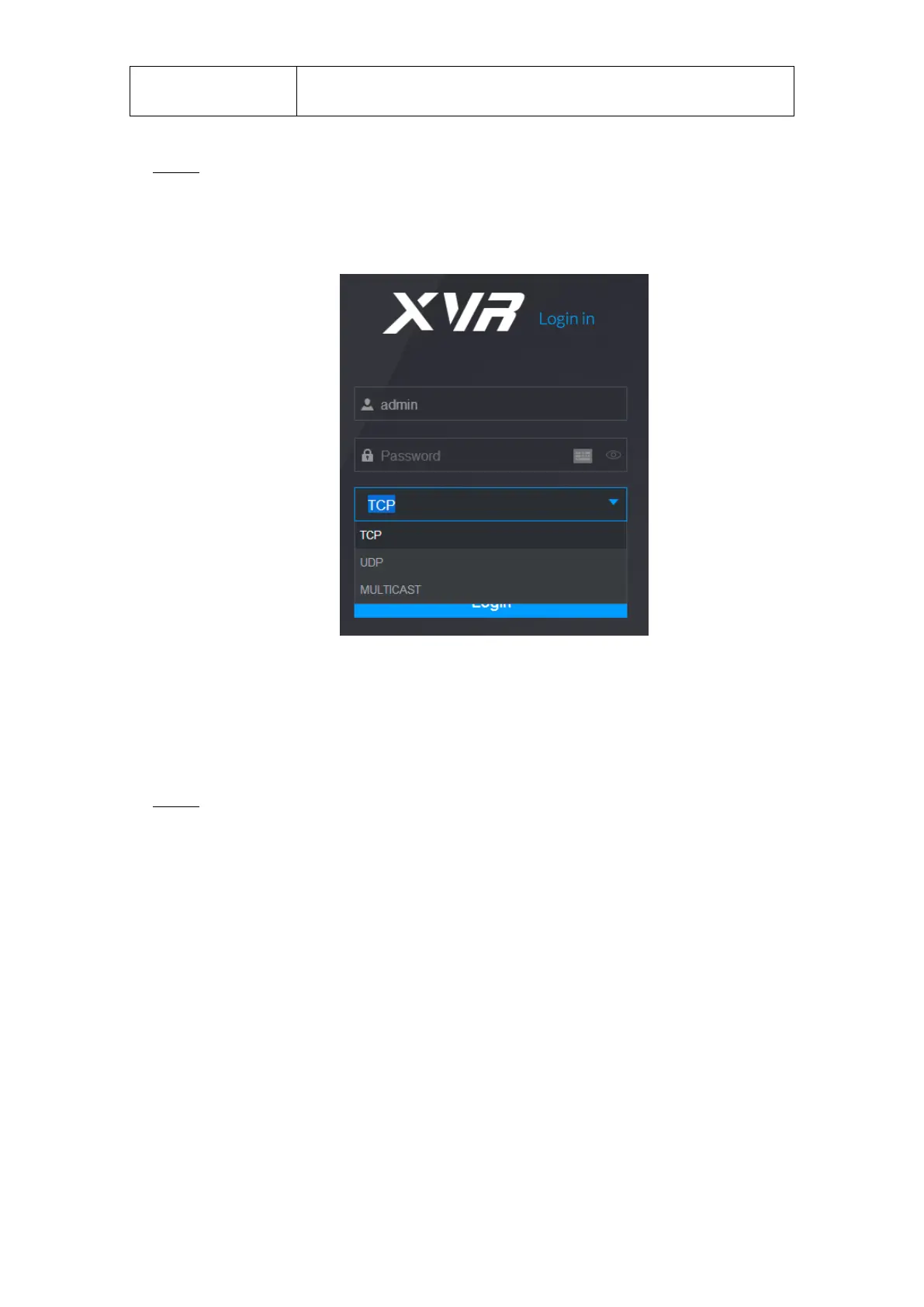

You can use the multicast IP address to login the web. See Figure 5-208.
On the web login dialog box, in the Type list, select MULTICAST. The web will
automatically obtain the multicast IP address and join. Then you can view the video
through multicast function.
Figure 5-208
5.15.1.11 Configuring Register Settings
You can register the Device into the specified proxy server which acts as the transit to make it
easier for the client software to access the Device.
Select Main Menu > NETWORK > REGISTER. Step 1
The REGISTER interface is displayed. See Figure 5-209.

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
