Web Operation Manual
50
Parameter Description
Distance
Between Lane
And Stop Line
The distance between the bottom of the video image and the stop line (where
the traffic post is).
Roadway Code
The code of the roadway and route.
Route Code
Click Confirm. Step 3
5.4.3.1.3 Lane Parameters
Configure lane information and events that you desire the Camera to detect.
Select Setting > Event > ANPR Snap > Illegal Capture > Lane Config. Step 1
Configure lane parameters. Step 2

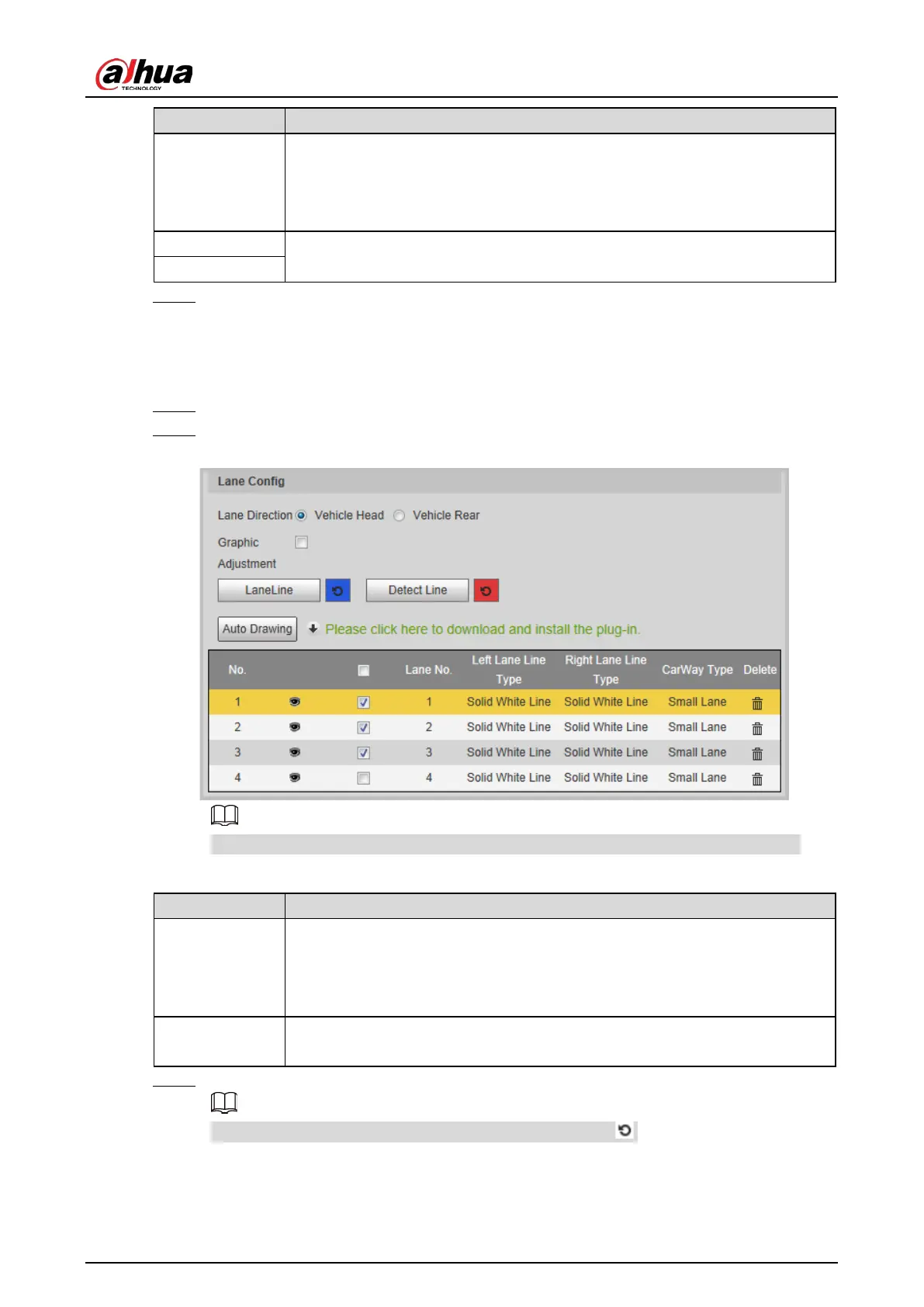

Lane config (2) Figure 5-36
Click to select a lane and then all configurations on the Illegal Capture are for this lane.
Table 5-22 Lane config parameters (2)
Parameter Description
Lane Direction
The arrow direction of the lane line needs to be the same as that of the
travelling vehicle.
Vehicle Rear: Lane line arrow is upward.
Vehicle Head: Lane line arrow is downward.
Graphic
Adjustment
Select the checkbox to enable the function, and then you can adjust the lane
lines by dragging the corners on the image.
Click a line type, and then draw the lane lines on the image. Step 3
To clear the lane lines or regions that you have drawn, click .
