Daikin DCS601C51 - Icon

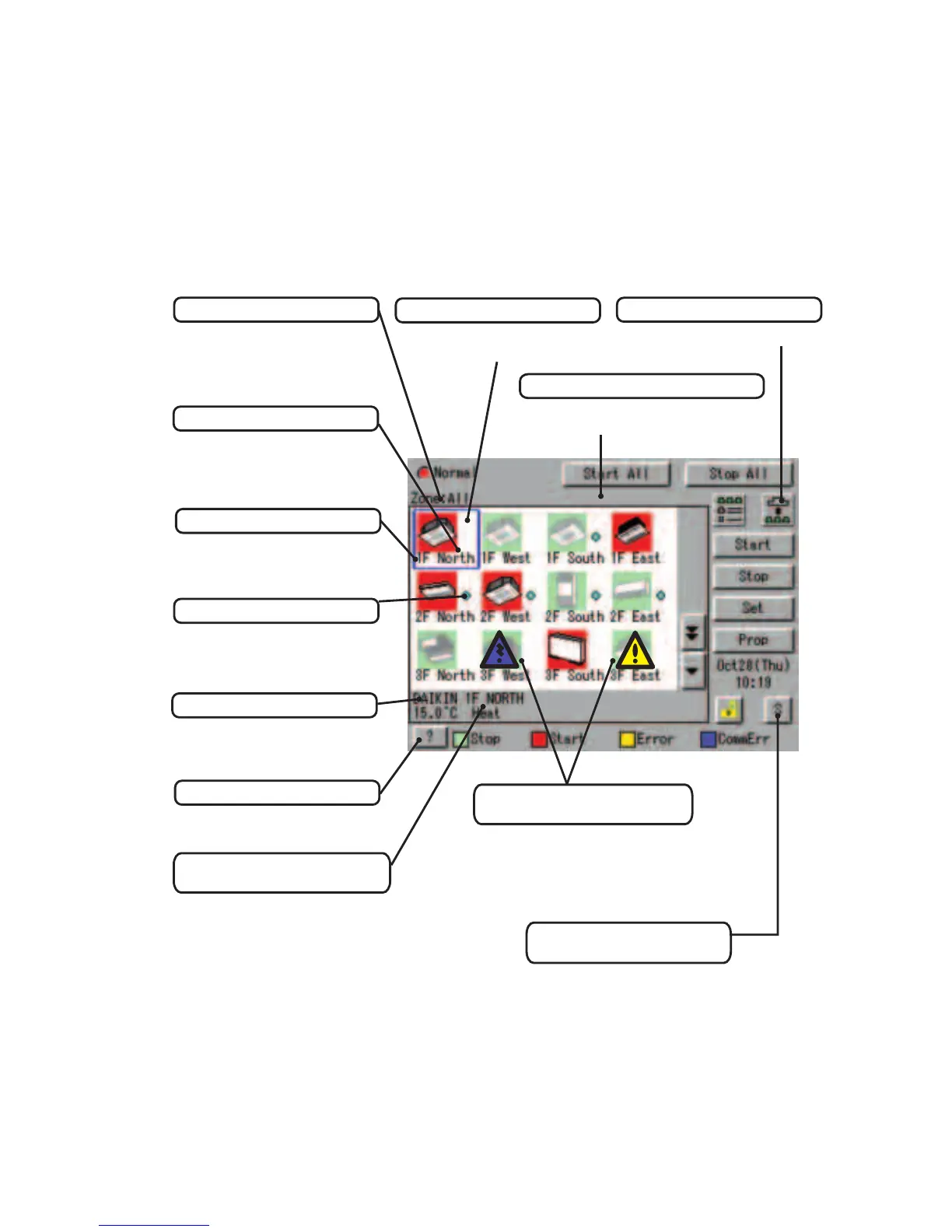

Contents of the List Currently Displayed
• When Group List is displayed
“Zone : Zone Name”
• When Zone List is displayed
“Zone List Display”
Display Mode Selection
Select between Zone and Group.
Generally, the temperature setting
and the operation mode are
displayed. If any error occurs in the
air conditioner, the error code is
displayed.
Blue triangular mark shows
communication abnormality in air
conditioner.
Yellow triangular mark shows
abnormality in air conditioner.
Zone / Group Currently Displayed
The name of the zone / group currently
selected is highlighted in blue flame.
Zone / Group Name
Set the names in the Group
Registration or Zone Registration
in the System Setup Mode.
Filter / Element Sign
Displayed when there is any air
conditioner showing a filter or
element sign in the zone or the
group.
Target of Automatic Control
Displayed when there is any air
conditioner with the registration of
scheduled in the zone or in the
group.
Monitoring Screen Legend
Pressing the “?” button shows
more detailed legend.
Use this button for settings
including the time, group, zone
and schedule.
Description of Zone / Group
Set the names in the Group
Registration or Zone Registration
in the System Setup Mode.
9
Icon
System Condition Displayed Domain
Domain displaying system
condition (Compulsory Stop etc.)
Information on Zone / Group
Currently Displayed
Displayed Abnormality in Air
Conditioner or Communication
Button to Switch to the
System Setup Mode
