Daikin DCS601C51 - Operation of Temperature Limit Settings

1.
See page 56 and select Temperature Limit Settings
2.
Screen 1 Temperature Limit Settings, which is
shown on the left, appears.
This screen shows current status (enabled /
disabled) of room temperature upper / lower
limit control group, and setting status of
lower temperature limit, upper temperature
limit, and the number of registered indoor
unit groups.
3.
Touch a room temperature upper / lower limit
control group to be set or changed as shown
by 1 , and press the [Modify] button 2 .
4.
Screen 2 Room Temperature Upper / Lower
Limit Control Group Settings, which is shown
on the left, appears. First, at 3 , select the
indoor unit to be added to the room
temperature upper / lower limit control group
which is currently selected, and press the
button 4 to add. To delete an indoor unit
from the group, select it at 5 , and press the
button 6 .
5.
Set a lower limit of room temperature with the
[Modify] button 7 , and an upper limit of room
temperature with the [Modify] button 8 .
Setting range : 2°C - 14°C for lower limit,
34°C - 50°C for upper limit
6.
When all settings for this room temperature
upper / lower limit control group (indoor unit
registration, settings of upper limit and lower
limit) are completed, press the [OK] button
9 .
(To cancel, press the [Cancel] button
10 .)
Screen 3 Confirmation Display appears.
When there is no problem in setting change,
press the [Yes] button
11 .
Screen 1, which is shown on the top on this
page, appears.
To add or change the settings in the room
temperature upper / lower limit control group
mentioned above, press the [No] button
12 .
Screen 2 appears.
7.
On the screen 1, select a room temperature
upper / lower limit control group to be enabled
at 1 , and press the button
13 to enable.
Confirm the group status (enabled / disabled)
displayed on
14 .
Only the room temperature upper / lower limit
control group set to enabled is controlled
automatically.
8.
Lastly, when all the setting changes are correct,
press the [OK] button
15 . (To cancel, press the
[Cancel] button
16 .)
When the [OK] button
16 is pressed, the
screen 3 Confirmation Display appears.When
there is no problem in setting change, press
the [Yes] button
11 . This menu is ended, and
System Setup Menu appears. (When the [No]
button
12 is pressed, the screen 1 appears.)
Before performing Temperature Limit Settings, read
thoroughly the section Temperature Limit Settings
on page 42, and perform the following procedure.
Operation of Temperature Limit Settings

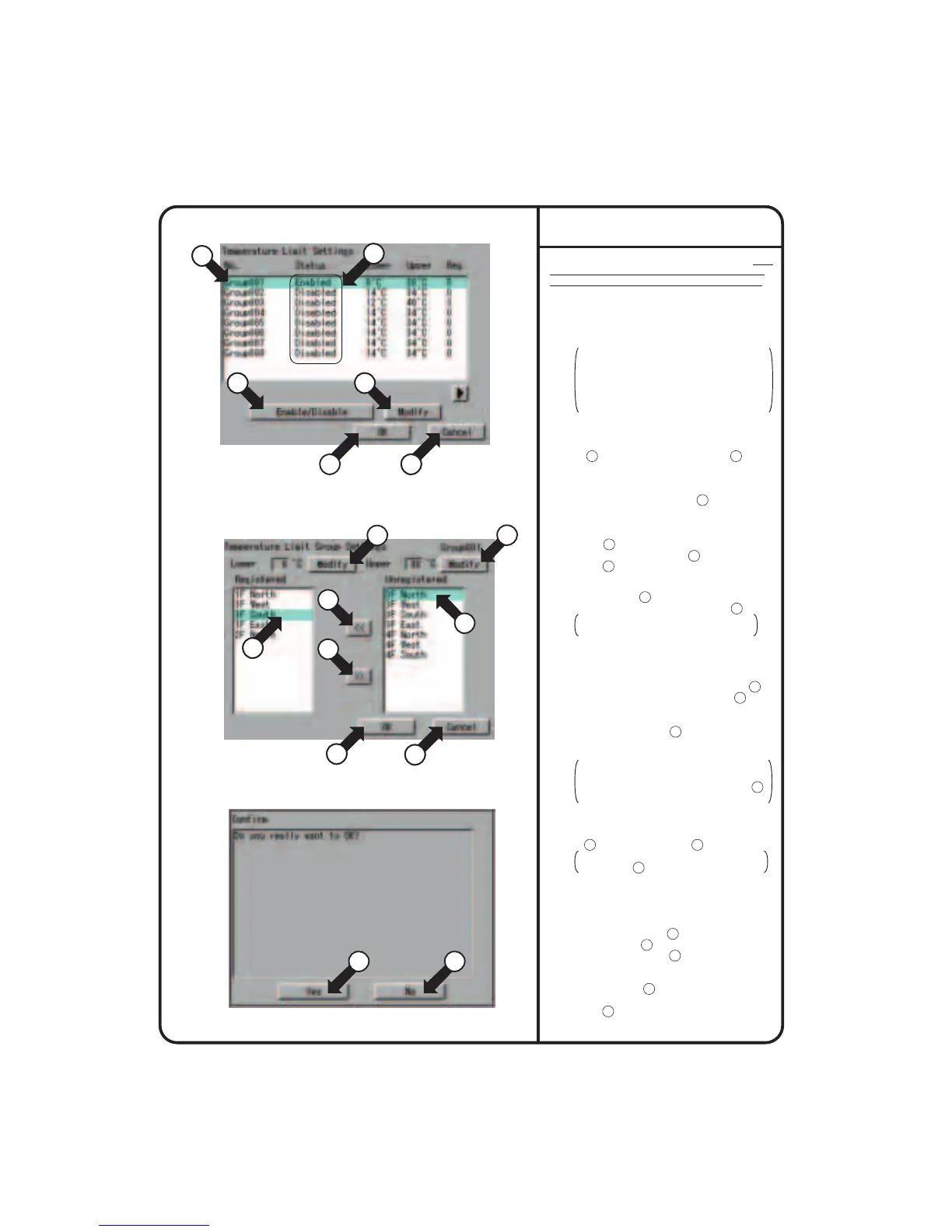

Screen 1 Temperature Limit Settings
Screen 2
Room Temperature Upper/Lower Limit Control Group Settings
Screen 3 Confirmation
1 1
1 13 1 2
14 14
7
8
11 12
15 16
3
3
6
4
5 5
9 9
10 10
System Setup Menu Operation
74
