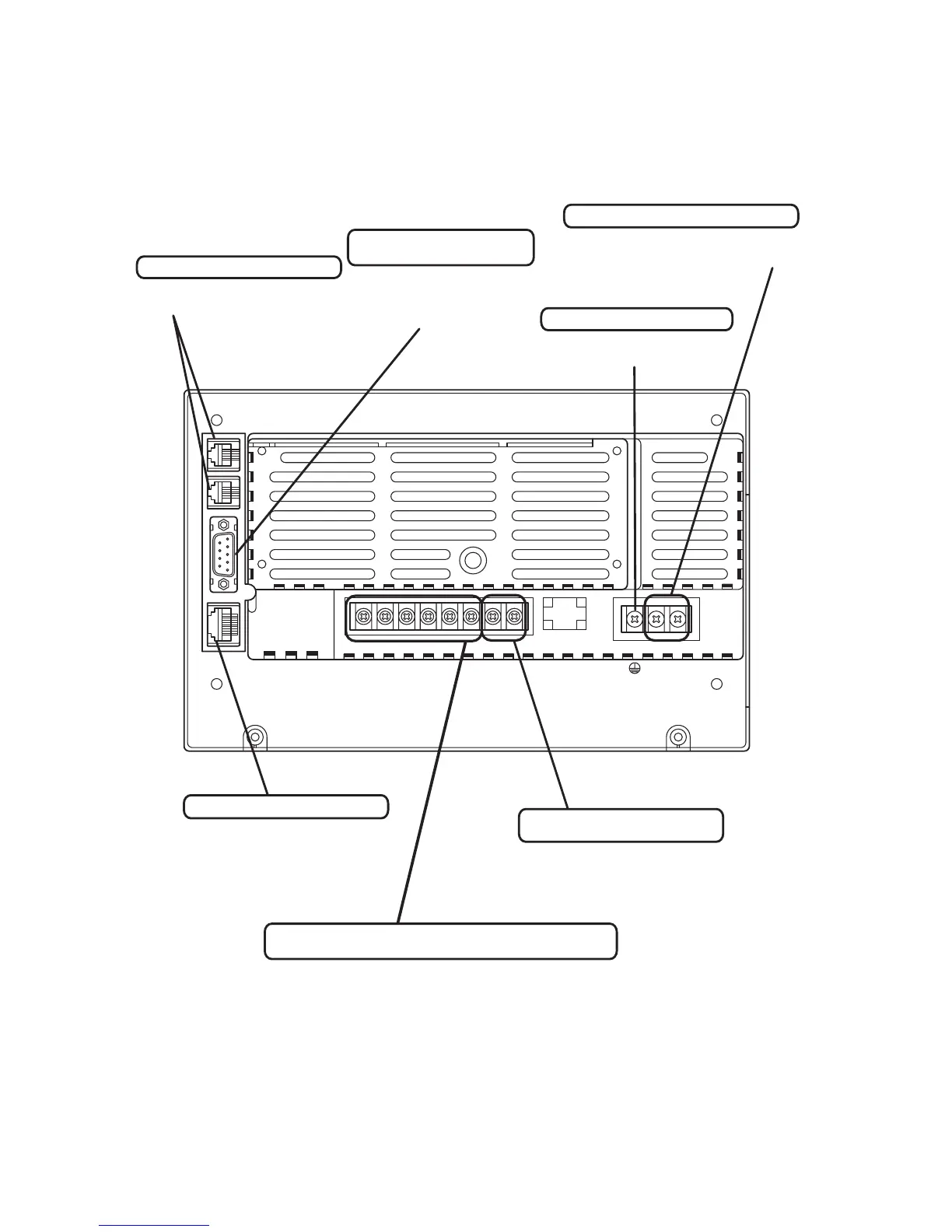

Terminals on the Back of intelligent Touch Controller
Using DIII-NET Plus adapter
being sold as an accessory,
you can increase the number
of indoor units to be controlled.
RS232-C connector for
DIII-NET Plus adapter
When using AIRNET service,
connect it to the telephone line.
Modem connector for AIRNET
This is used when distributing the power supply to indoor
units using optional Power Proportional Distribution software
sold separately and when stopping the indoor units
compulsorily by contact input.
The size of terminal block is M3.5.
Terminal block for watt hour meter and force stop input
of indoor units
When monitoring and operating
the indoor units using the optional
Web and E-mail function software
sold separately, connect to LAN
via Ethernet cable.
Ethernet connector for web
Securely connect the earth wire.
Terminal size is M4.
Earth terminal block
Connect to AC100-240V power supply.
Terminal size is M4.
Terminal block for power supply
The terminal size of the terminal
block for communication with
indoor units is M3.5.
Terminal block for DIII-NET
communication
LINE
COM L0Dil Pi3 COM Pi2 Pi1 F2 F1 N L
PHONE
RS-232C LAN
6
