11
Icon

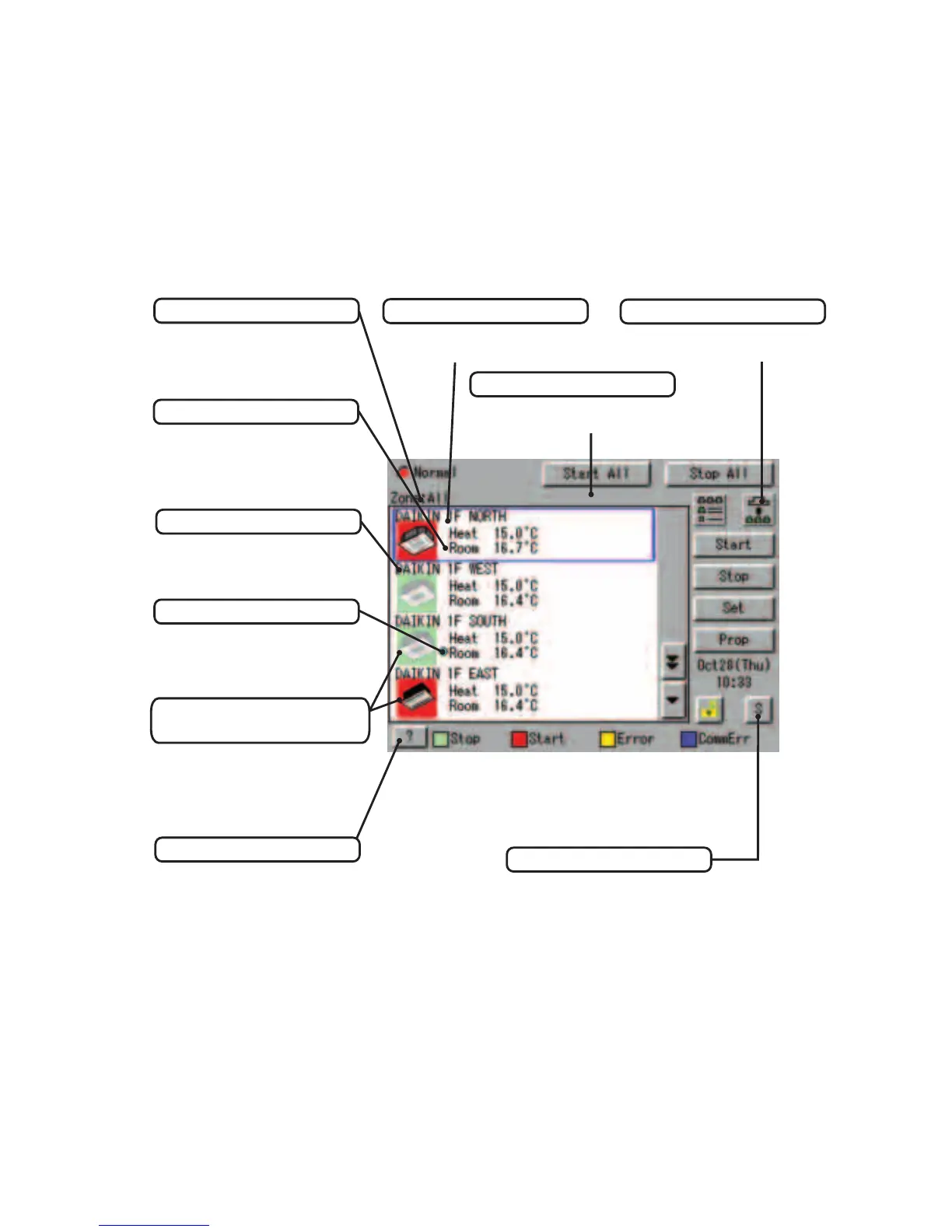

Contents of the List Currently Displayed
• When Group List is displayed
“Zone : Zone Name”
• When Zone List is displayed
“Zone List Display”
Display Mode Selection
Press the button ana display
change between Zone and Group.
Blue triangular mark shows
communication abnormality in air
conditioner.
Yellow triangular mark shows
abnormality in air conditioner.
Zone / Group Currently Displayed
The name of the zone / group currently
selected is highlighted in blue frame.
Zone / Group Name
Set the names in the Group
Registration or Zone Registration
in the System Setup Mode.
Filter / Element Sign
Displayed when there is any air
conditioner showing a filter or
element sign in the zone or the
group.
Target of Automatic Control
Displayed when there is any air
conditioner with the registration of
scheduled in the zone or in the
group.
Monitoring Screen Legend
Pressing the “?” button shows
more detailed legend.
Button to Switch to the System Setup Mode
Use this button for settings
including the time, group, zone
and schedule.
System Condition Displayed Domain
Domain displaying system
condition (Compulsory Stop etc.).
Displayed Abnormality in Air
Conditioner or Communication
To Next Page
