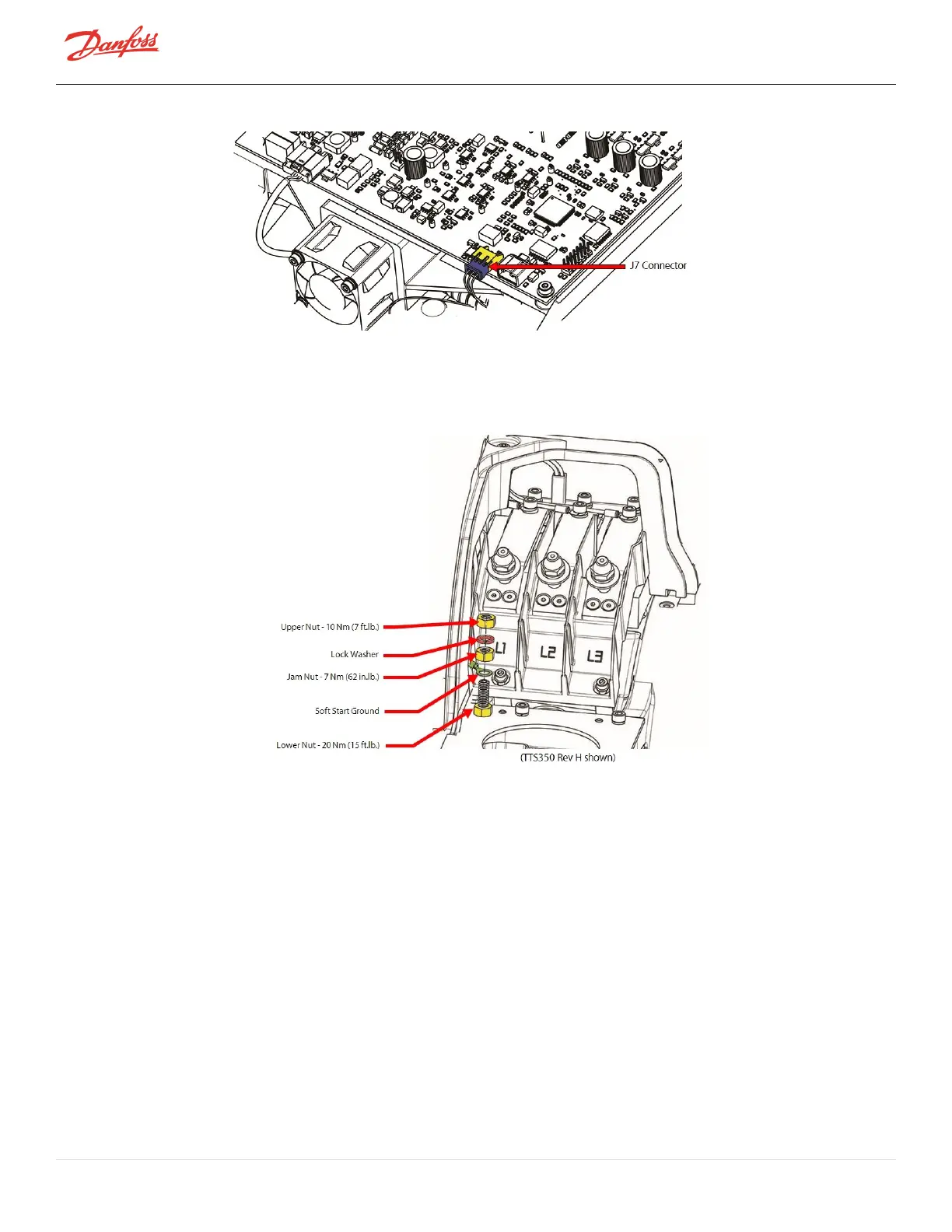

Figure 4-104 Open-Top Soft Start J7 Connector
3. DisconnecttheSoftStartgroundwirebyremovingthenutandmainsinputgroundwirefromthe
groundpostonthecompressorhousingat3phaseconnectionpoint.RefertoFigure4-105Ground
Location.
Figure 4-105 Ground Location
4. UnplugcableconnectorsJ1,J2,andJ8fromtheSoftStart.


