Danfoss TTS400 User Manual

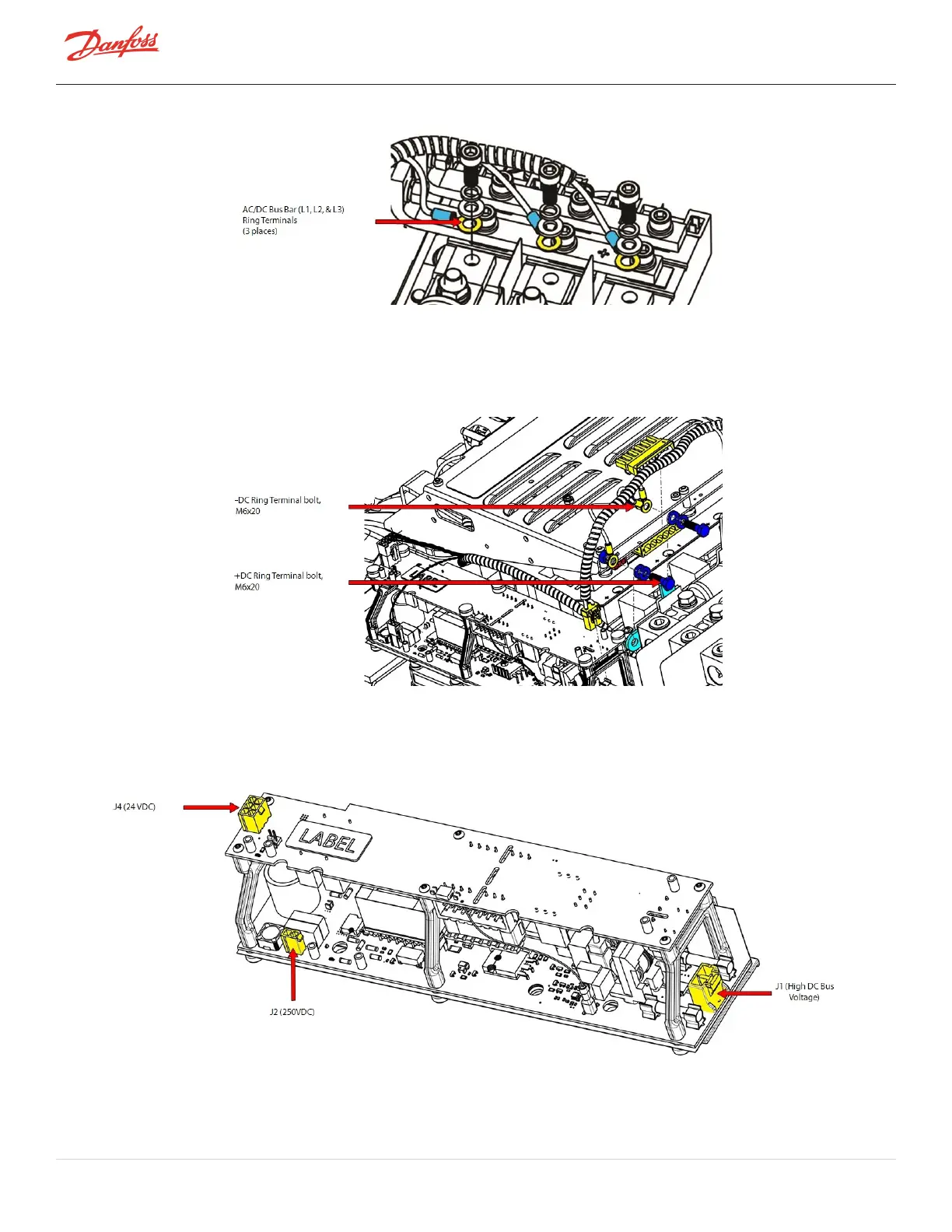

Figure 4-128 Input Ring Terminal Removal - TTS300/TGS230
3. Disconnectthetwo(2)-DCringterminalsfromthe-DCbusbarbyremovingtheattachinghardware.
RefertoFigure4-129DCRingTerminalRemoval-TTS300/TGS230forthisandthefollowingstep.
4. Disconnectthe+DCringterminalfromthe+DCbusbarbyremovingtheattachinghardware.
Figure 4-129 DC Ring Terminal Removal - TTS300/TGS230
5. RemovetheDC-DCConnections–IftheDC-DCisthepottedstyle,removeconnectorsJ1andJ4.Ifthe
DC-DCistheopen-framestyle,onlyJ1willneedtoberemoved.RefertoFigure4-130DC-DC
Connectors(OpenFrame)andFigure4-131DC-DCConnectors(Potted)onpage135.
Figure 4-130 DC-DC Connectors (Open Frame)


Page 134 of 294 - M-SV-001-EN Rev. H 1/23/2023
