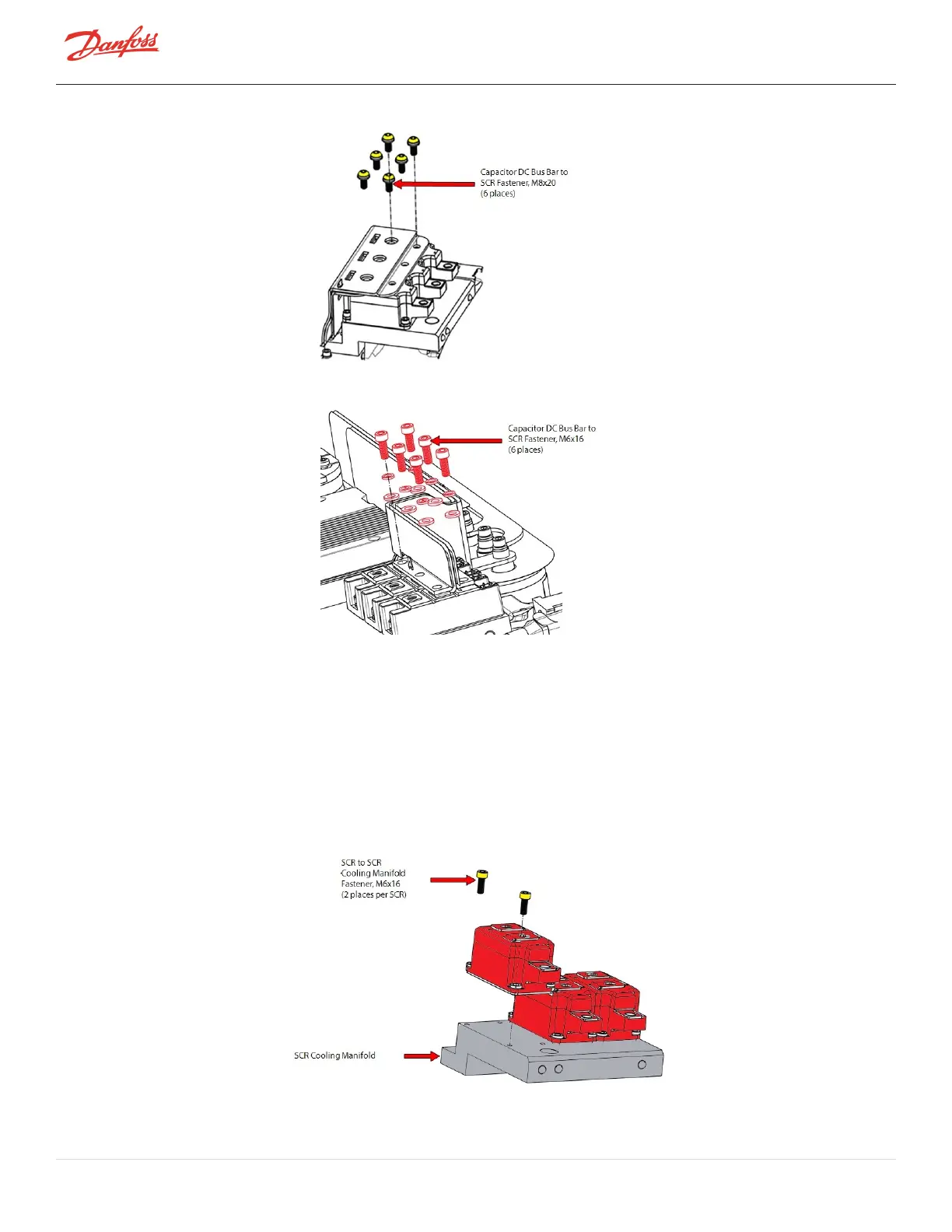

Figure 4-158 SCR Bus Fastener Removal - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)
Figure 4-159 SCR Bus Fastener Removal - TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)
6. RemovetheDCCapacitorBusBarAssembly.RefertoSection4.21.3DCCapacitorBusBarAssembly
RemovalandInstallationonpage168.
7. RemovetheSCRs.
a. ForRevisionFandearliercompressors,removethe12M6x16fastenersthatsecuretheSCRstothe
SCRCoolingManifoldandremovetheSCRs.RefertoFigure4-160SCRRemoval-TTS/TGS/TTH/TGH
Rev.FandEarlier(ExceptTTS300/TGS230).
b. ForRevisionHcompressors,removethetwo(2)M6x16fastenersthatsecureeachSCRtotheSCR
CoolingManifoldandremovetheSCRs.
Figure 4-160 SCR Removal - TTS/TGS/TTH/TGH Rev. F and Earlier (Except TTS300/TGS230)

Page 152 of 294 - M-SV-001-EN Rev. H 1/23/2023
