Danfoss TTS400

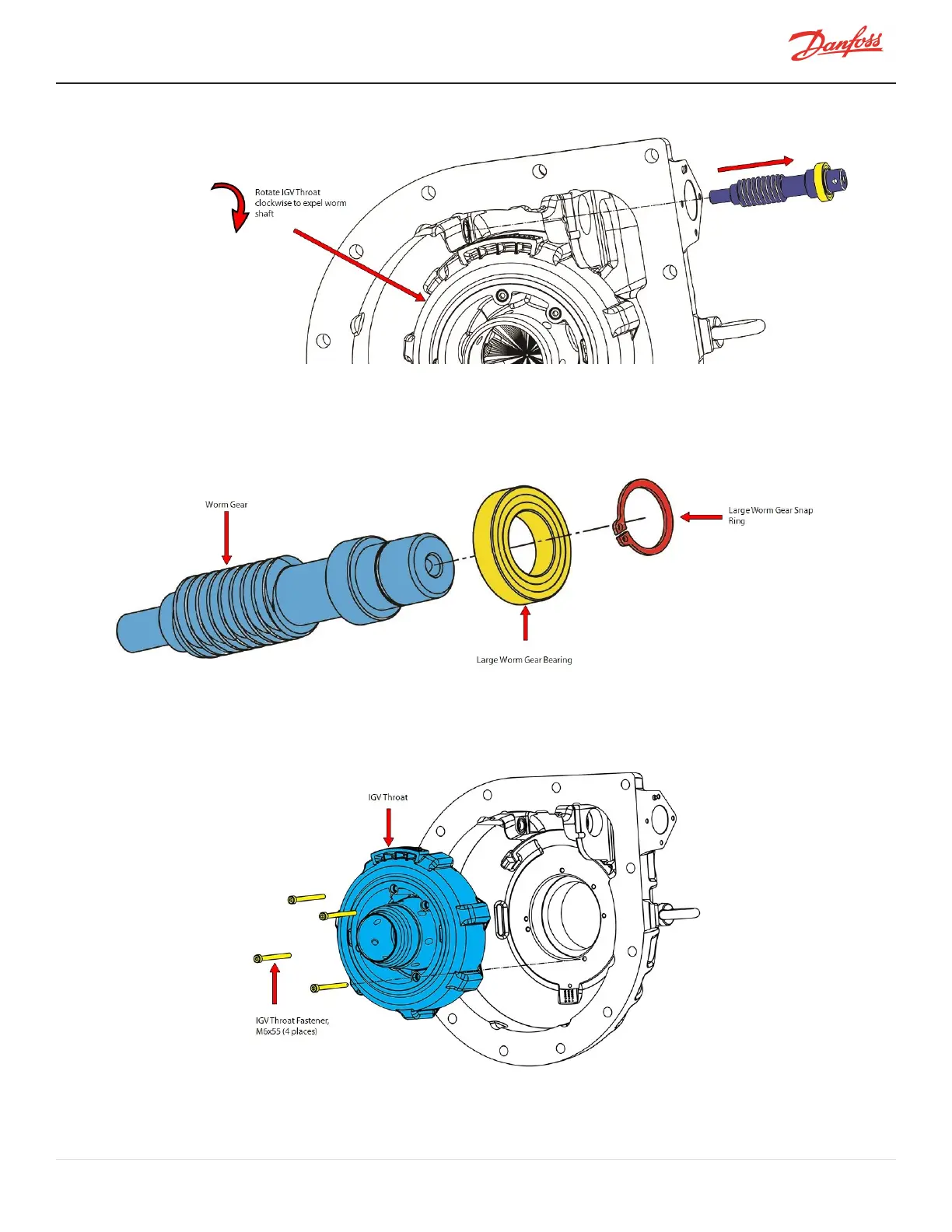

Figure 4-59 Worm Gear Removal
10. Removethesnapringfromthewormgearshaft.RefertoFigure4-60LargeWormGearBearingforthis
andthefollowingstep.
11. Removetheupper(large)bearingfromthewormgear.
Figure 4-60 Large Worm Gear Bearing
12. Removethefour(4)M6x55fastenersthatretaintheIGVThroatassemblyandlifttheentireassembly
fromtheIGVHousing.RefertoFigure4-61IGVThroatRemoval.
Figure 4-61 IGV Throat Removal
M-SV-001-EN Rev. H-1/23/2023 Page 89 of 294
