9.4.3 DS6300 with GFX-60
DS6300 with GFX-60 - Resolution: 0.20 mm/8 mils

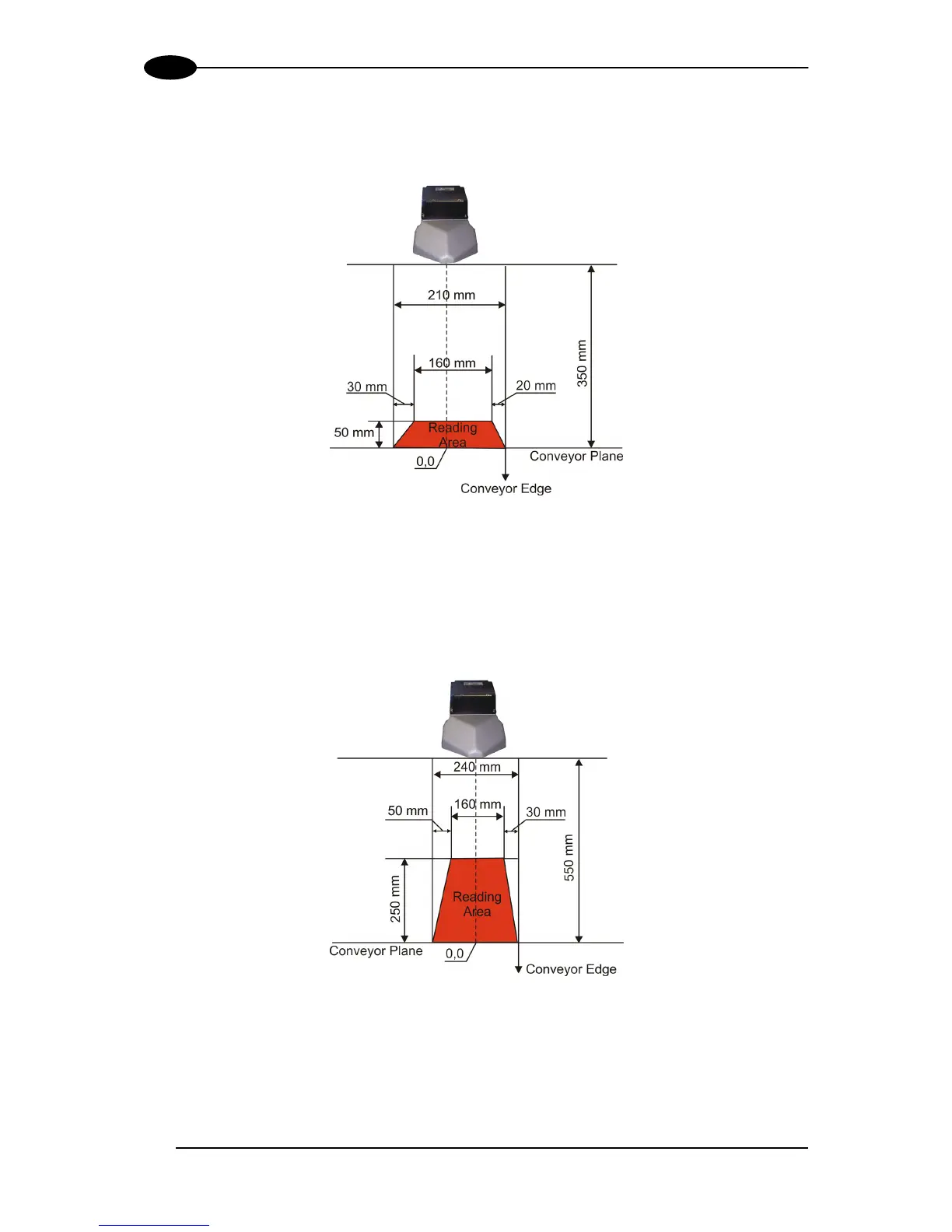

Figure 111 – GFX-60 0.20 mm / 8 mils Reading Diagram
Note: 0 value on the X axis is measured from the nose of the GFX-60
0 value on the Y axis is measured from the conveyor plane
focus position = 0
DS6300 with GFX-60 - Resolution: 0.30 mm/12 mils
Figure 112 - GFX-60 0.30 mm / 12 mils Reading Diagram
Note: 0 value on the X axis is measured from the nose of the GFX-60
0 value on the Y axis is measured from the conveyor plane
focus position = 40
