INSTALLATION

2 INSTALLATION

To install the system follow the given procedure:

1. Select the mounting location for DS6300;

2. Mount the DS6300 scanner;

3. Position the scanner with respect to the barcode;

4. Proceed with system electrical connection;

5. Install the Genius™ program on the PC and configure the scanner.

6. Adjust the focus position to the reading plane of the barcode.

WARNING

When installing several scanners, take care to position them correctly so

that no laser beam enters the reading window perpendicularly and at the

same level of the output beam of the other scanners. This condition could

occur more frequently for side mounted applications. If these precautions

are not followed, it may occur that the laser of the blinded scanner starts

blinking due to an internal circuit which temporarily turns the laser off when

detecting a power anomaly. To resolve this problem, it is sufficient to slightly

change the inclination and position of one of the two scanners involved.

NOTE

Refer to the Reference Documentation for details on connecting your

DS6300 reader to other devices in the system (i.e. CBX100 etc.).

2.1 PACKAGE CONTENTS

Verify that the DS6300 reader and all the parts supplied with the equipment are present and

intact when opening the packaging; the list of parts includes:

 DS6300 reader

 Installation Quick Reference + barcode test chart

 DS6300 configuration CD-ROM

 Mounting bracket and screws

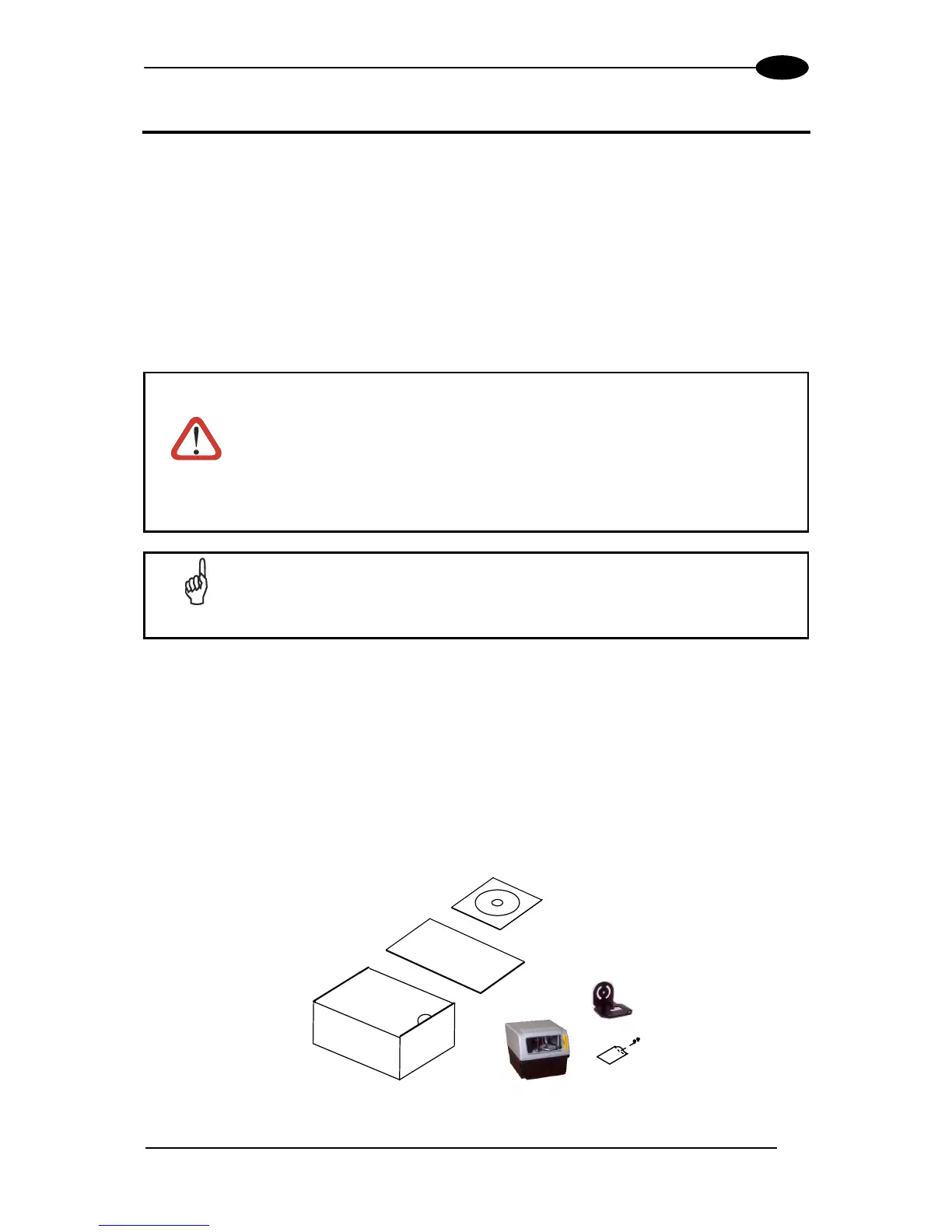

Figure 6 - DS6300 Package Contents
