DS6300 REFERENCE MANUAL
54
6
6.2 ETHERNET INTERFACE (OLDER MODELS)
The RJ45 connector is only available for older DS6300 Ethernet models and allows the
Ethernet connection between the host and the reader.
1
8

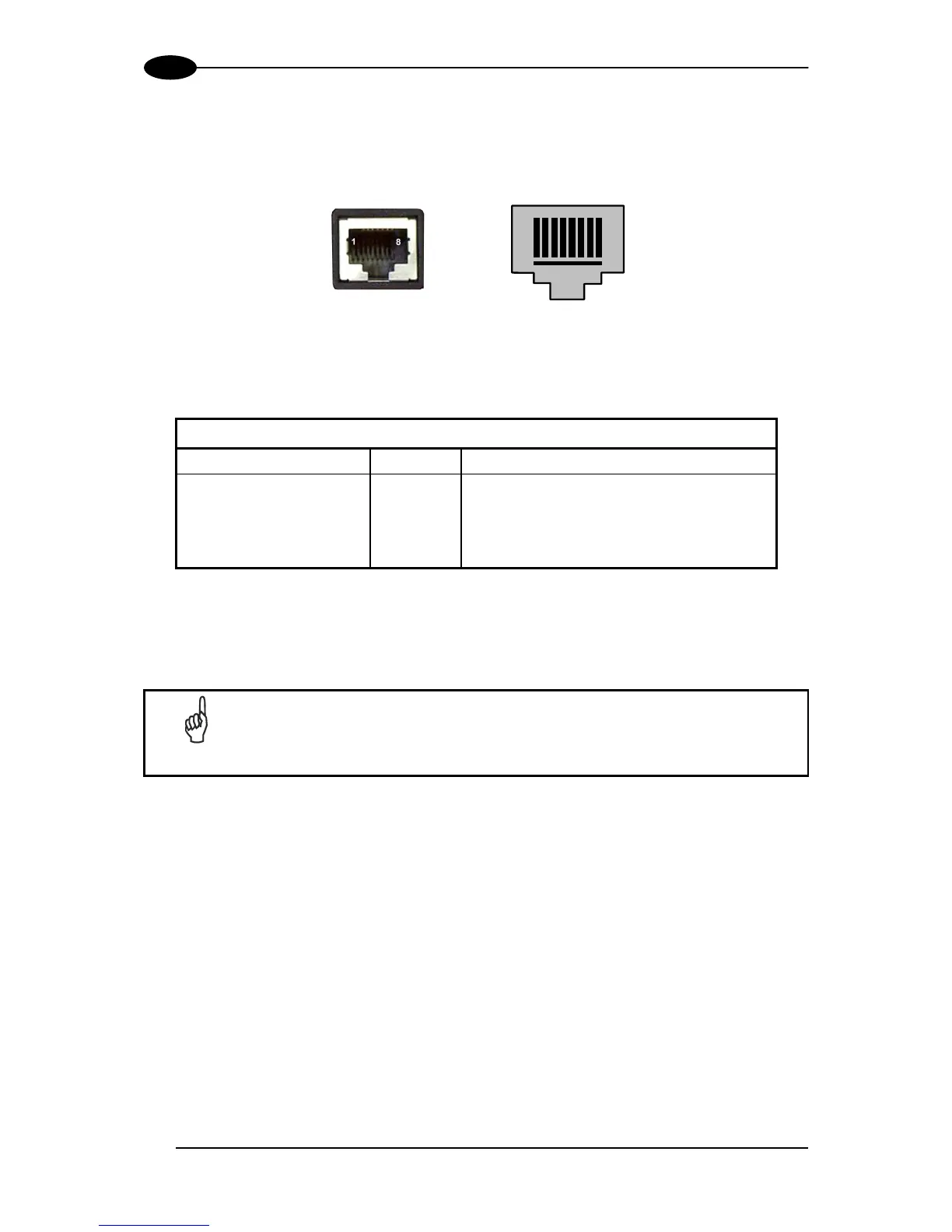

Figure 78 – DS6300 RJ45 Female Modular Connector
This interface and the connector pinout (see the following table) are IEEE 802.3 10 BaseT
and IEEE 802.3u 100 Base Tx compliant.
RJ45 Modular Jack Pinout
Pin Name Function
1 TX + Transmitted data (+)
2 TX - Transmitted data (-)
3 RX + Received data (+)
6 RX - Received data (-)
4, 5, 7, 8 N.C. Not connected
In order to meet EMC requirements:
 use Ethernet shielded cable
 connect the Ethernet interface cable shield to the plant earth ground
NOTE
The cable shield must be connected to the chassis of both connectors.
A ferrite (type Stewart 28A2029-0A0) may also be applied on the scanner
side of the Ethernet cable to reduce electrical noise.

Datalogic DS6300 Specifications

General

Scanning Technology	Laser
Interface	RS-232
Reading Distance	Varies with barcode density and model; refer to specific model datasheet
Light Source	Laser Diode 650 nm (Visible Red Light)
Depth of Field	Varies with barcode density and model; refer to specific model datasheet
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Humidity	5% to 95% (non-condensing)
Electrical Safety	EN 60950-1
EMC	EN 55022
Laser Safety	Class 2, IEC 60825-1
