DS6300 REFERENCE MANUAL
40
4

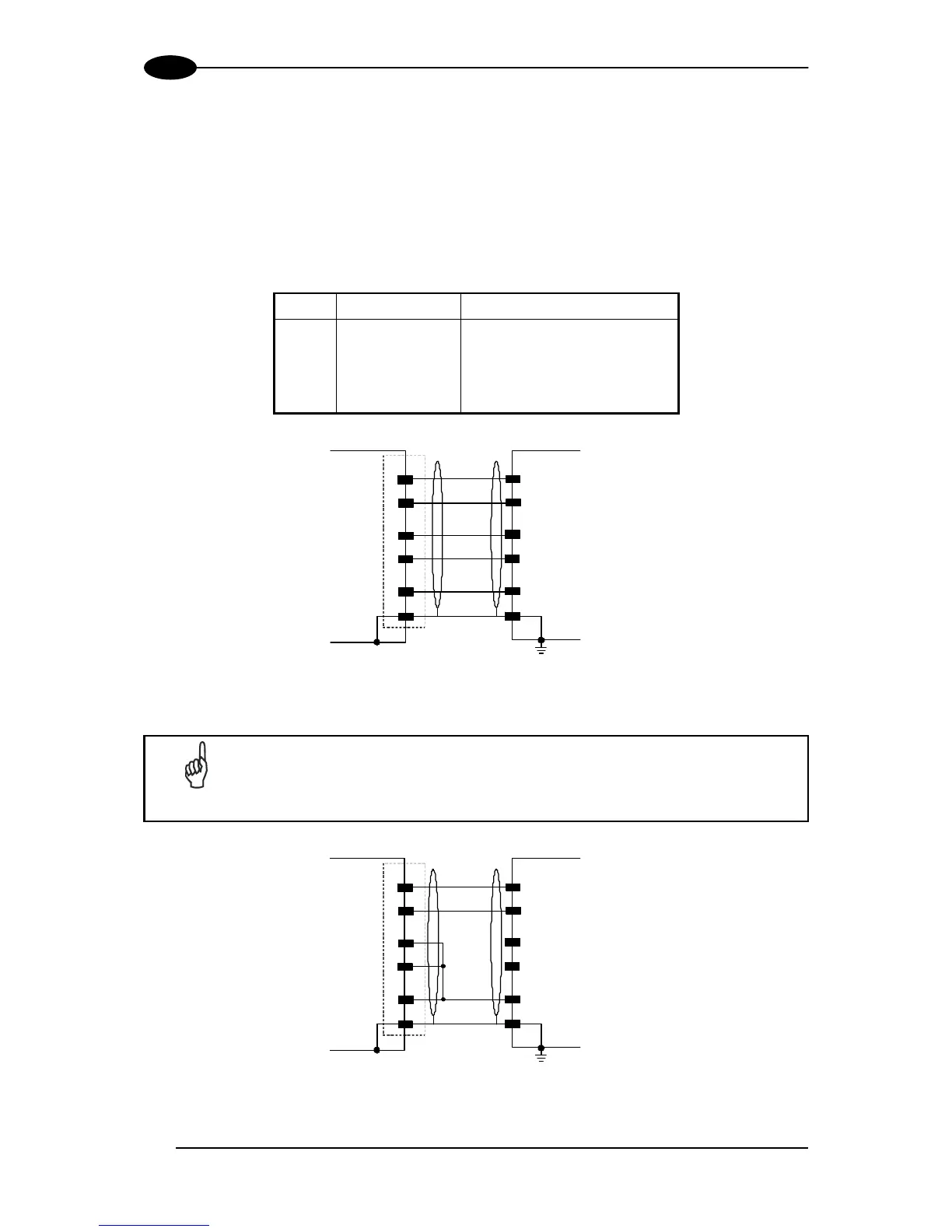

4.2.2 RS485 Full-Duplex Interface
The RS485 full-duplex (5 wires + shield) interface is used for non-polled communication
protocols in point-to-point connections over longer distances than those acceptable for
RS232 communications or in electrically noisy environments. The overall maximum cable
length should not exceed 1200 m (3940 ft).
The following pins of the 25/26-pin connector are used for RS485 full-duplex interface
connection:
Pin Name Function
2 TX+ RS485 output (+)
3 RX+ RS485 input (+)
4 TX- RS485 output (-)
5 RX- RS485 input (-)
7 GND_ISO Main signal ground
DS6
3
00
7
GND_ISO
TX +
2
TX-
4
RX+3
RX-
5
+
SGND Main Isolated
USER INTERFACE
RX485
1
Earth
Ground
CHASSIS
-
+
TX 48 5
-
Figure 56 - RS485 Full-Duplex Interface Connections
NOTE
For applications that do not use RX485 signals, do not leave these lines
floating but connect them to GND_ISO as shown below.
DS6
3
00
7
GND_ISO
TX +
2
TX-
4
RX+3
RX-
5
+
SGND Main Isolated
USER INTERFACE
RX485
1
Earth
Ground
CHASSIS
-
Figure 57 - RS485 Full-Duplex Connections using Only TX Signals
