MULTIPLEXER
The Multiplexer connection is used to integrate a DS6300 slave
reader in a Multidrop
network consisting of different scanners not provided with a Lonworks interface.
Each scanner is connected to a Multiplexer (MX4000) with the RS485
half-duplex main interface.

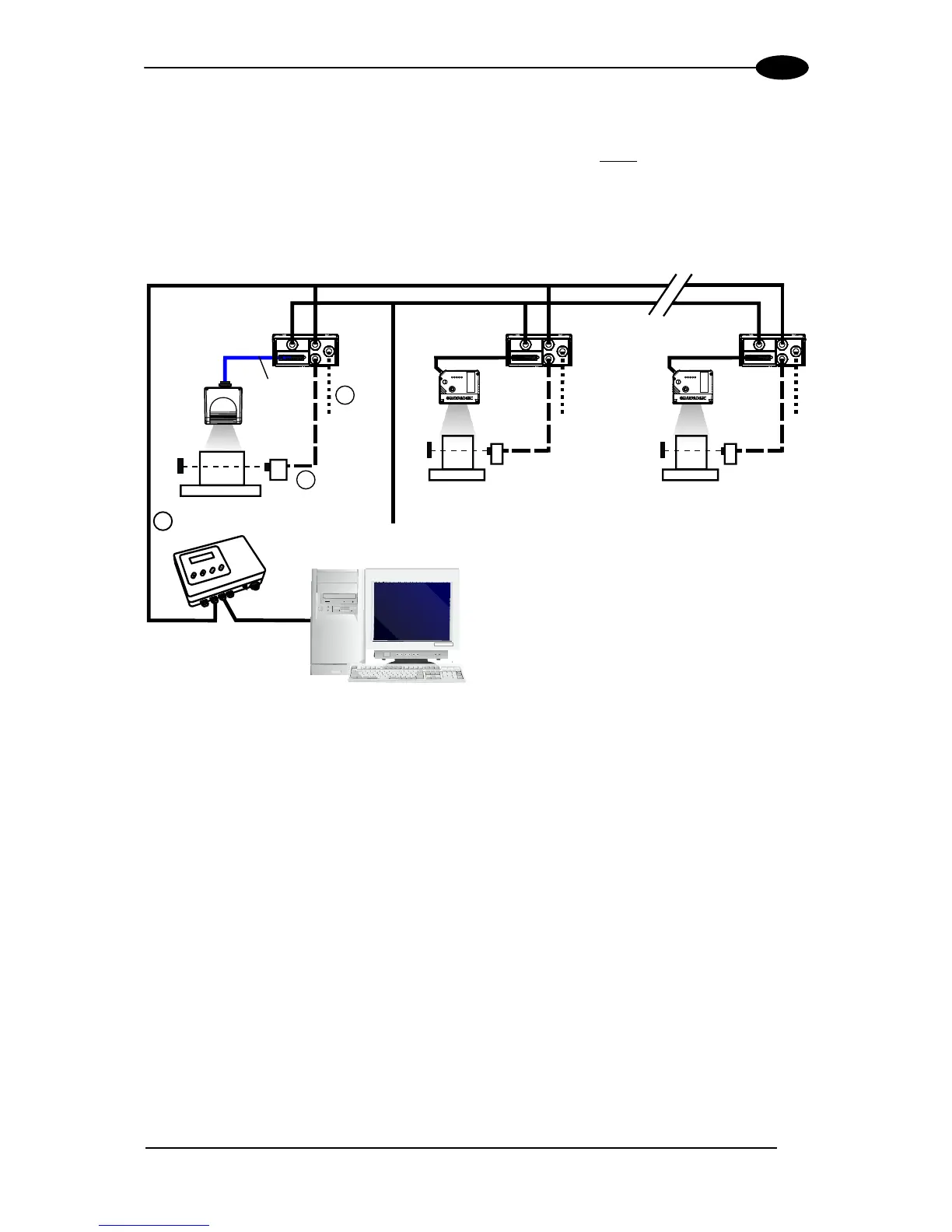

Figure 122 – Multiplexer for DS6300 Master/Slave Models
The auxiliary serial interface of the slave scanners can be used to visualize collected data or
to configure it using the Genius™ utility.
When On-Line operating mode is used, the scanner is activated by an External Trigger/PS
when the object enters its reading zone.
Main Serial Interface (RS485 Half-Duplex)
Auxiliary Serial Interface (Local Echo) (RS232)
Input 1 (External Trigger/PS for On-Line Mode)
3
2
Local Host
Power
MX4000
CBX100
DS6300
DS4800
#0
1
CAB-Sxx
#1 #31
To Next Page
