INSTALLATION
15
2

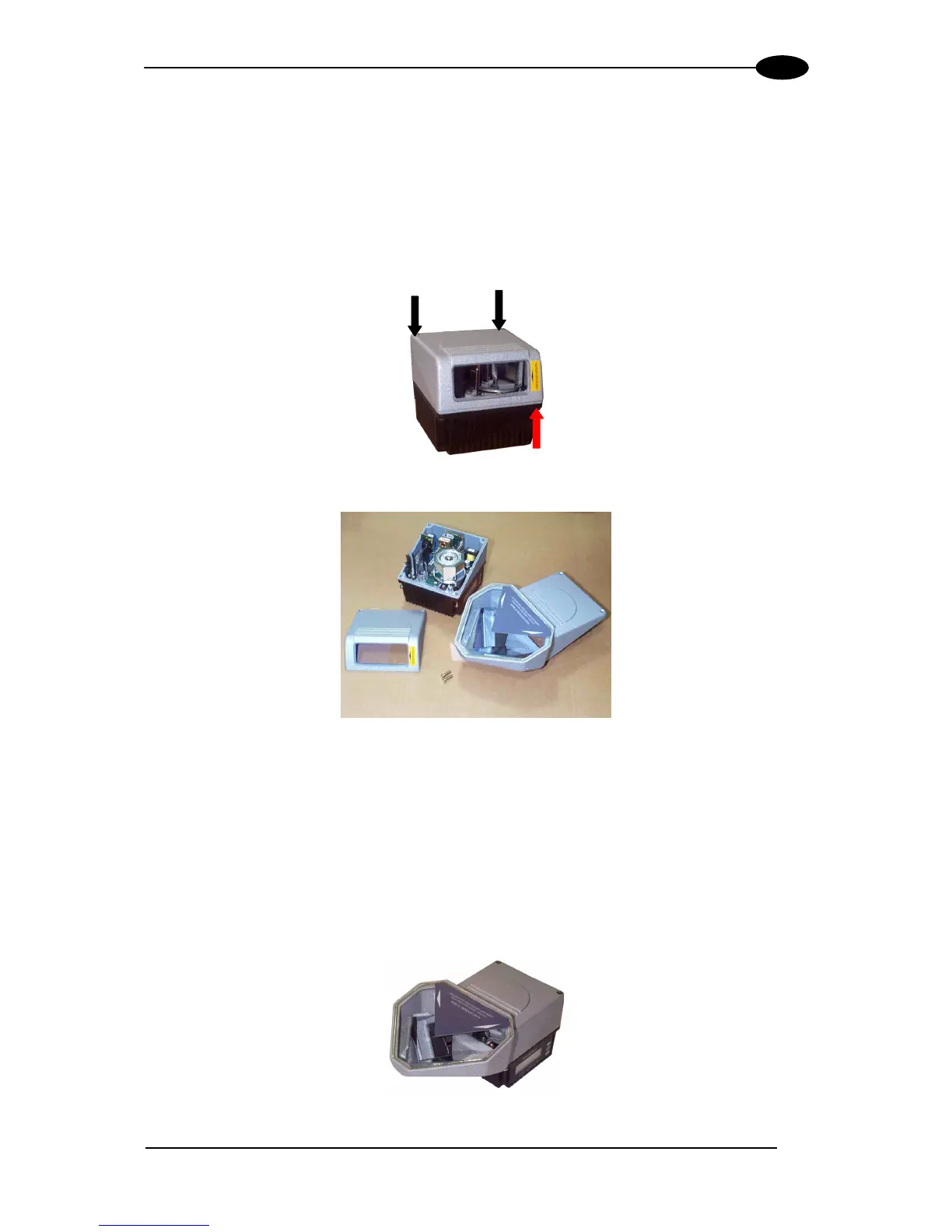

2.2.3 Mounting the Scanner with GFX-60
The GFX-60 is an accessory X-pattern mirror for the DS6300 Series Scanners. The following
procedure describes how to mount the GFX-60.
1. Unscrew the upper cover of the scan head, which houses the scanner output window.
a) Remove the two top head screws.
b) Loosen all four fixing screws.
c) Carefully remove the scanner output window from the scan head.
2. Mount the GFX-60 onto the scan head paying attention to correctly align the sealing
gasket.
3. Start the four fixing screws and the two head screws partially to assure correct alignment
to the scan head.
4. Completely tighten the two head screws.
5. Completely tighten the four fixing screws.
head screws
fixing screws (4)
