DS6300 REFERENCE MANUAL
82
9

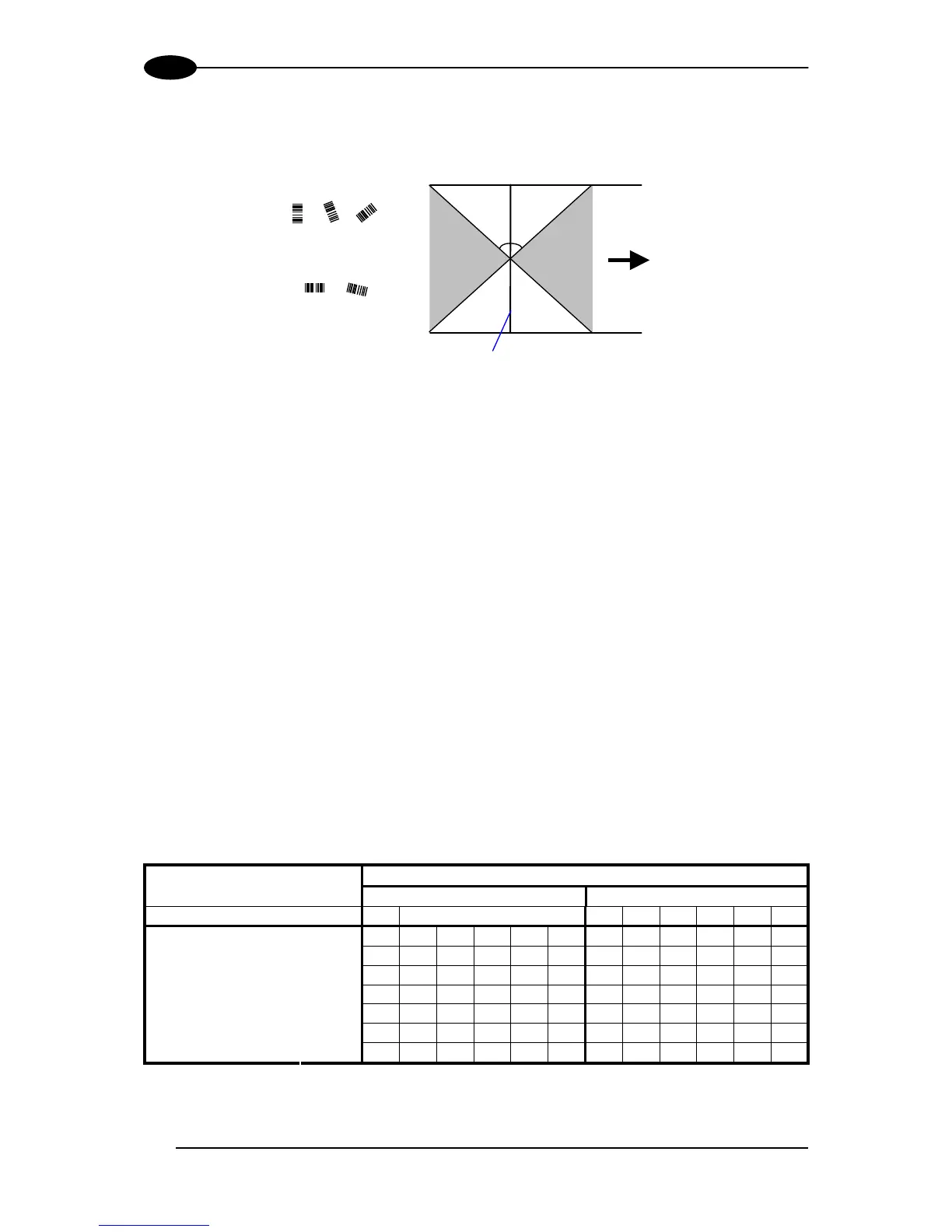

The decoder will be able to read the label with a tilt angle between +  max and -  max as
shown in the following figure:
Conveyor
Laser Beam
No Read
No Read
-

+

0°
O
K
O
K
O
K
O
K
O
K
No Read
Figure 102 – Reading Zones with  Max
9.3 PERFORMANCE
The scan rate is 800 scans/sec.
Refer to the diagrams in par. 9.4 for further details on the reading features. These diagrams
are taken o
n various resolution sample codes at a 25 C ambient temperature depending on
the conditions listed under each diagram.
If standard models do not satisfy specific requirements, contact your nearest Datalogic
distributor, supplying code samples, to obtain complete information on the reading
possibilities.
9.3.1 Reading Conditions
 ANSI Grade B minimum
 800 scans/sec
The following tables describe the requirements for standard applications.
Minimum Code Height for ACR Reading (mm)
45° 30°
Conveyor Speed (m/s) 0.5 1 1.5 2 2.5 3 0.5 1 1.5 2 2.5 3
0.25
10 12 14 16 18 20 7 9 10 12 13 15
0.30
12 14 15 17 19 21 8 9 11 12 14 15
0.33
13 14 16 18 20 22 8 10 11 13 14 16
0.38
14 16 18 19 21 23 9 11 12 14 15 17
0.50
18 19 21 23 25 26 11 12 14 15 17 18
0.72
24 25 27 28 30 32 15 16 17 19 20 22
2/5 Interleaved
Code Resolution
(mm)
1.00
33 34 35 36 38 40 20 21 22 23 25 26
Ratio 3:1
Table 1
