FIELDBUS CONNECTIONS
53
6
6 FIELDBUS CONNECTIONS
6.1 ETHERNET INTERFACE
This connector is only available for DS6300 Ethernet models and allows the Ethernet
connection between the host and the reader.

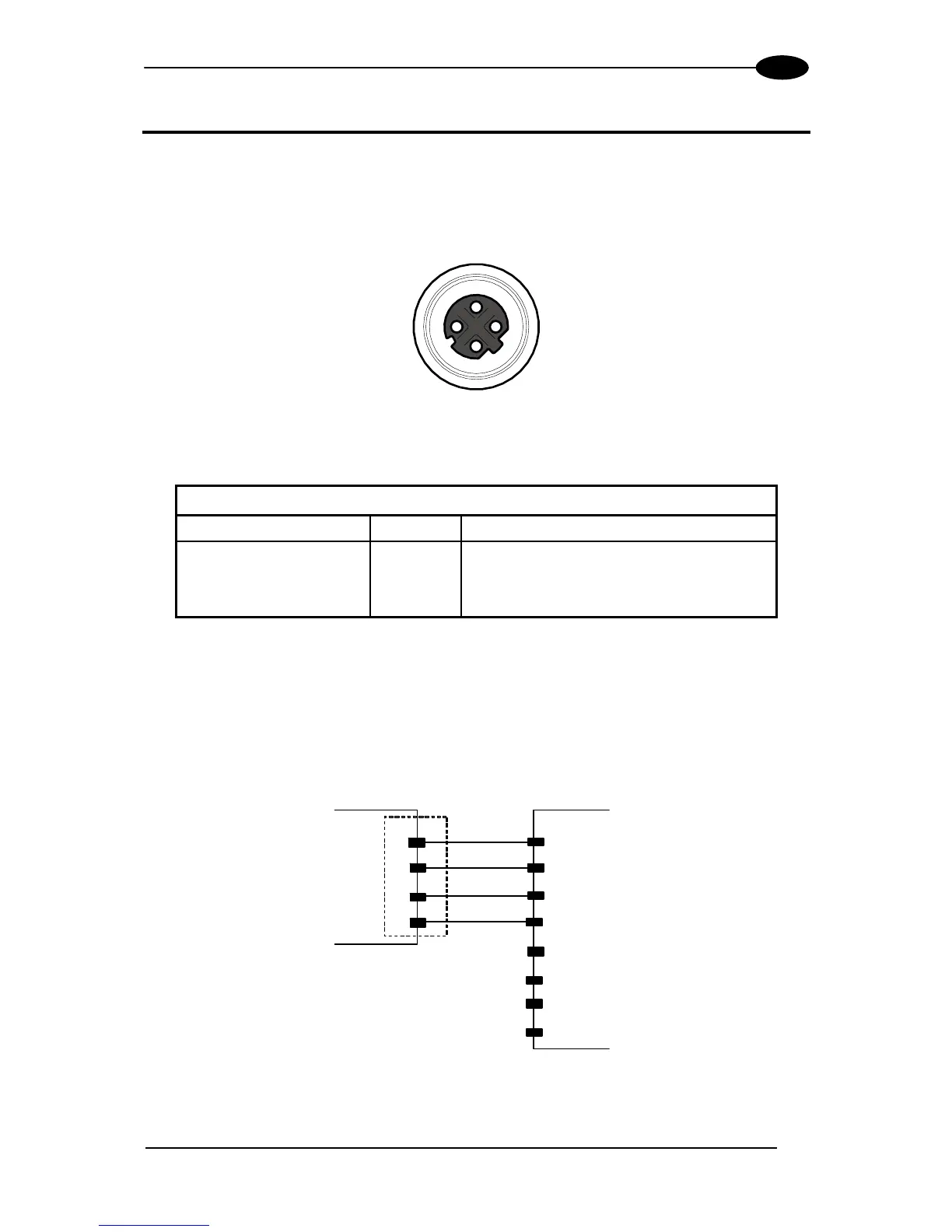

Figure 76 –DS6300 M12 4-pin D-Coded Female Ethernet Connector
This interface and the connector pinout (see the following table) are IEEE 802.3 10 BaseT
and IEEE 802.3u 100 Base Tx compliant.
M12 4-pin D-coded Female Pinout
Pin Name Function
1 TX + Transmitted data (+)
2 RX + Received data (+)
3 TX - Transmitted data (-)
4 RX - Received data (-)
In order to meet EMC requirements use Ethernet shielded cable.
The Ethernet interface can be used for TCP/IP communication with a remote or local host
computer by connecting the scanner to either a LAN or directly to a host PC. There is no
need to use a crossover adapter since scanner incorporates an auto-cross function.
The following is an example of a connection to a LAN using a CAB-ETH-M0x straight
through cable:
DS6300
3
4
2
1
TX-
RX+
TX+
RX-
LAN
4
2
6
3
1
5
7
8
TX-
RX+
TX+
RX-
M12
D-coded
RJ45
Figure 77 – Straight Through Cable
For further details refer to the “Ethernet Service Guide” document provided as reference
documentation.
3
4
1
2
